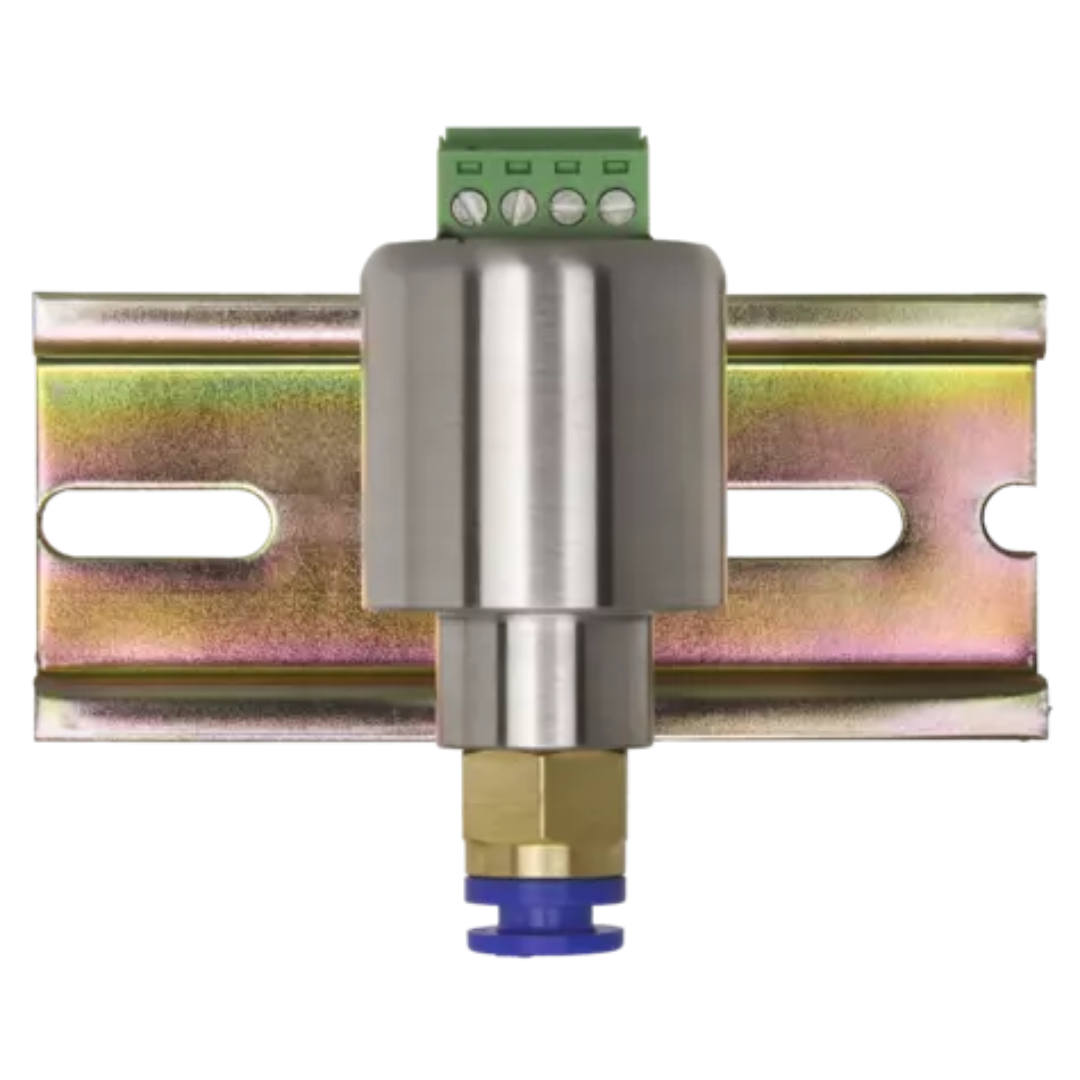

JUMO MIDAS DR

This pressure transmitter is the plant control cabinet variant of the basic JUMO MIDAS product. It acquires the relative pressure of liquid as well as gaseous media and transforms it into an electrical signal.

Categories: Pressure, Transmitters

Technical data
Downloads

Technical data

general technical data
Input	0 to 16 bar relative pressure
Medium temperature	-15 to +60 °C
Accuracy (linearity)	0.50 %
Output	4 to 20 mA two-wire; 0 to 10 V three-wire
Process connection	Push-in fittings for pipe/tube
Measuring system	Thick film on ceramic bodies (piezoresistive)

general technical data

Input

0 to 16 bar relative pressure

Medium temperature

-15 to +60 °C

Accuracy (linearity)

0.50 %

Output

4 to 20 mA two-wire; 0 to 10 V three-wire

Process connection

Push-in fittings for pipe/tube

Measuring system
