JUMO MIDAS C18 SW

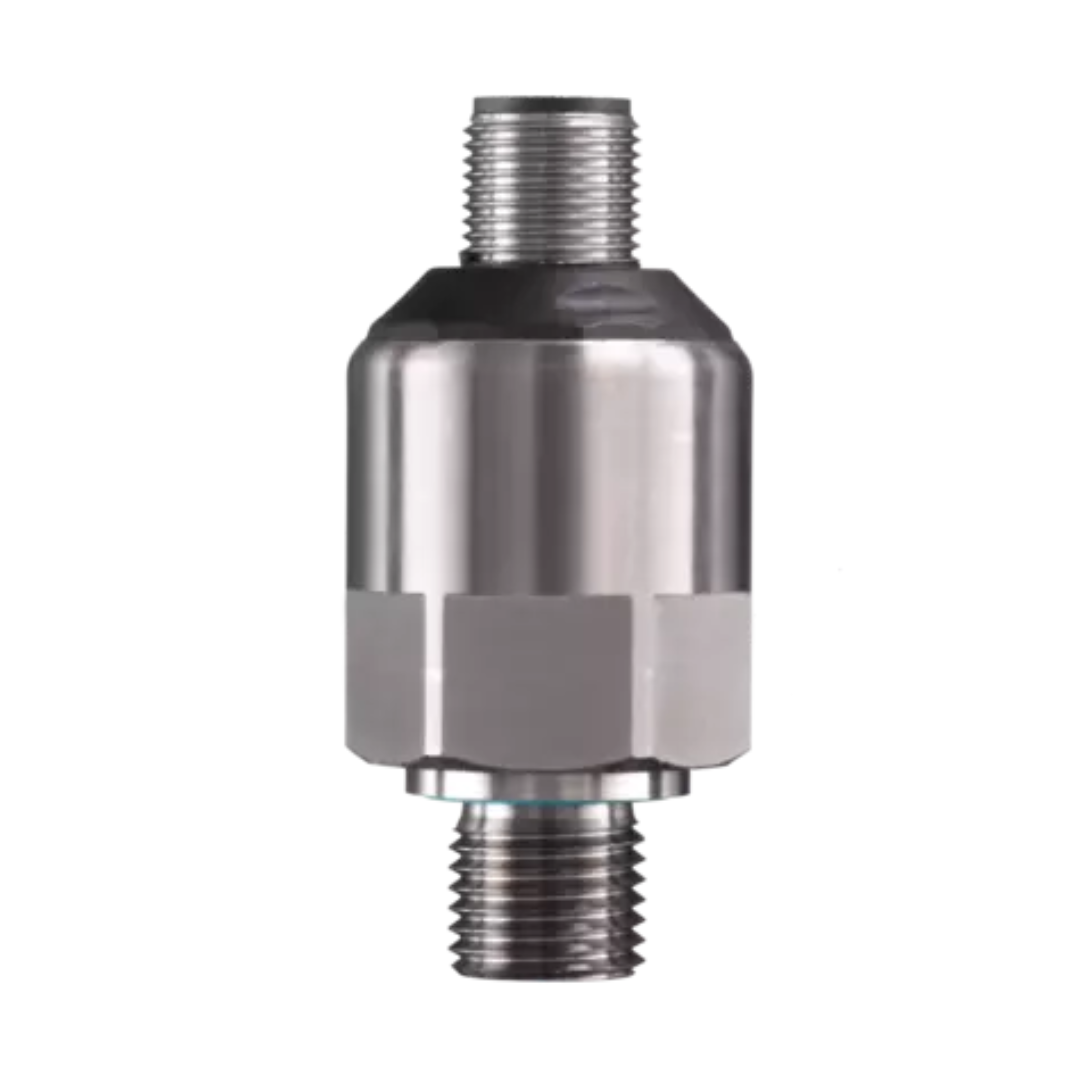

This pressure transmitter features a hysteresis-free ceramic measuring cell and a titanium case. This protects it against organic acids and solutions containing chloride. It is used in particular in ship building and laboratory engineering.

Categories: Pressure, Transmitters

Technical data
Downloads

Technical data

general technical data
Input	-1 to +100 bar relative pressure
Output	4 to 20 mA two-wire; DC 0 to 10 V three-wire
Medium temperature	-20 to +125 °C
Accuracy (linearity)	0.25 to 0.3 %
Process connection	All screw connections that are standard in the industry
Measuring system	Thick film on ceramic bodies (piezoresistive)

general technical data

Input

-1 to +100 bar relative pressure

Output

4 to 20 mA two-wire; DC 0 to 10 V three-wire

Medium temperature

-20 to +125 °C

Accuracy (linearity)

0.25 to 0.3 %

Process connection

All screw connections that are standard in the industry

Measuring system
