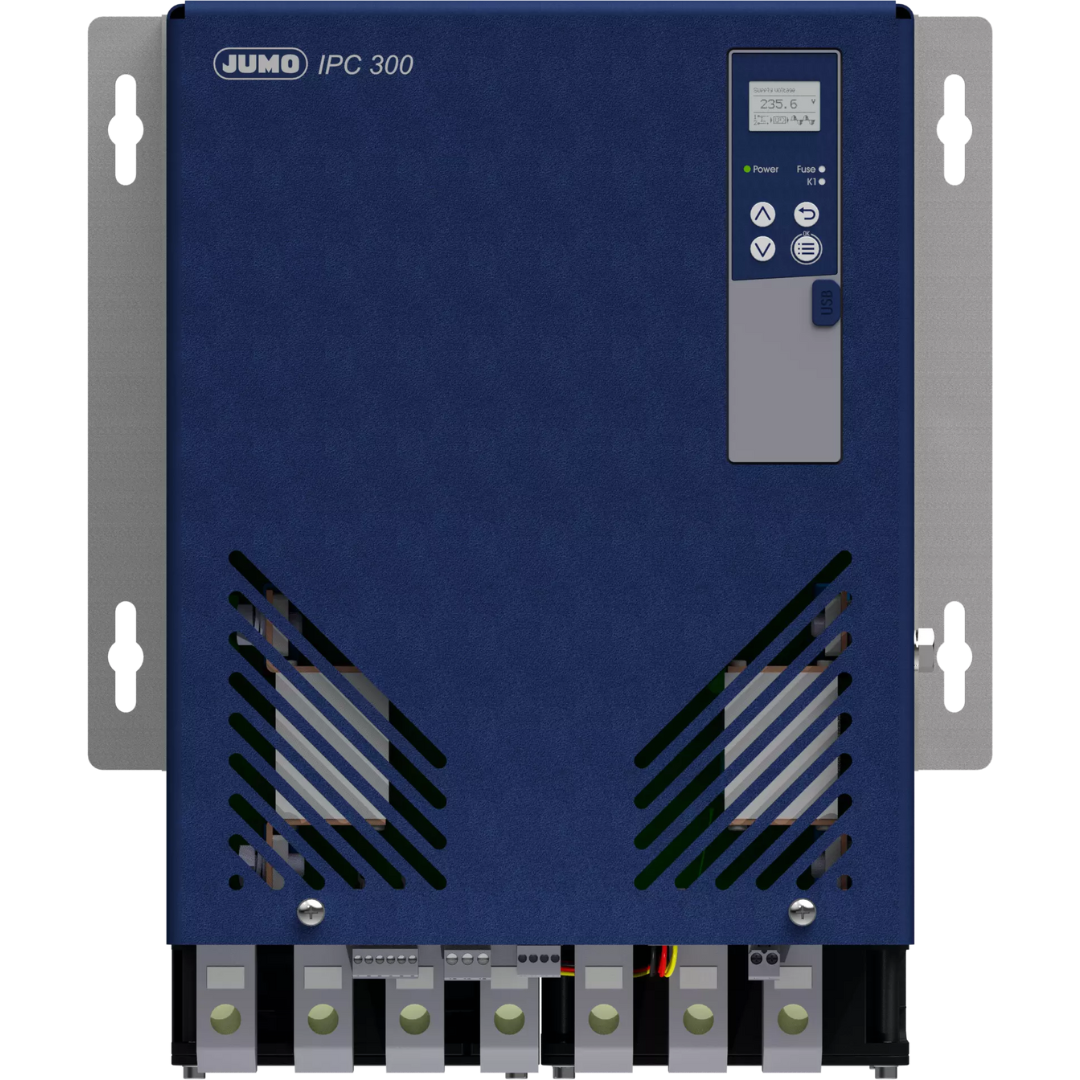

JUMO IPC 300

The JUMO IPC 300 is an electronic transformer for controlling heating loads. Due to the amplitude control, the mains current is proportional to the required performance. This reduces interference (flicker, harmonics) and energy costs while increasing the durability of MoSi2 and SiC heating elements, which in turn reduces operating costs.

Categories: Actuator, Power Controllers

Technical data
Downloads

Technical data

General technical data
Service	Up to 40 kW
Operating mode	Amplitude control
Subordinate control loop	U², P, I²
Output	Analog output 0(4) to 20 mA, 0(2) to 10 V or 0(1) to 5 V
Display	LCD with plain text display
Operation	Keypad on the device
Configuration	Setup program with transfer of parameters via USB interface without voltage supply (USB powered); keys and display
Protective functions	Short-circuit control during activation procedure, r-control, integrated semiconductor fuses for protection against ground fault
Interface	PROFINET, Modbus-RTU
Special features	Gentle mains operation with high-powered resistive loads (flicker); minimal harmonics in the plant’s network; compensation of the aging process for SiC heating rods with an indication when the voltage reserve is no longer sufficient for compensation; control regardless of the heating elements’ resistance characteristic; protection of molybdenum disilicide heating elements against overheating in the upper temperature range
Dimensions	348.6 × 300 × 217 mm or 403.5 × 300 × 257.5 mm

General technical data

Service

Up to 40 kW

Operating mode

Amplitude control

Subordinate control loop

U², P, I²

Output

Analog output 0(4) to 20 mA, 0(2) to 10 V or 0(1) to 5 V

Display

LCD with plain text display

Operation

Keypad on the device

Configuration

Setup program with transfer of parameters via USB interface without voltage supply (USB powered); keys and display

Protective functions

Short-circuit control during activation procedure, r-control, integrated semiconductor fuses for protection against ground fault

Interface

PROFINET, Modbus-RTU

Special features

Gentle mains operation with high-powered resistive loads (flicker); minimal harmonics in the plant’s network; compensation of the aging process for SiC heating rods with an indication when the voltage reserve is no longer sufficient for compensation; control regardless of the heating elements’ resistance characteristic; protection of molybdenum disilicide heating elements against overheating in the upper temperature range

Dimensions

348.6 × 300 × 217 mm or 403.5 × 300 × 257.5 mm
