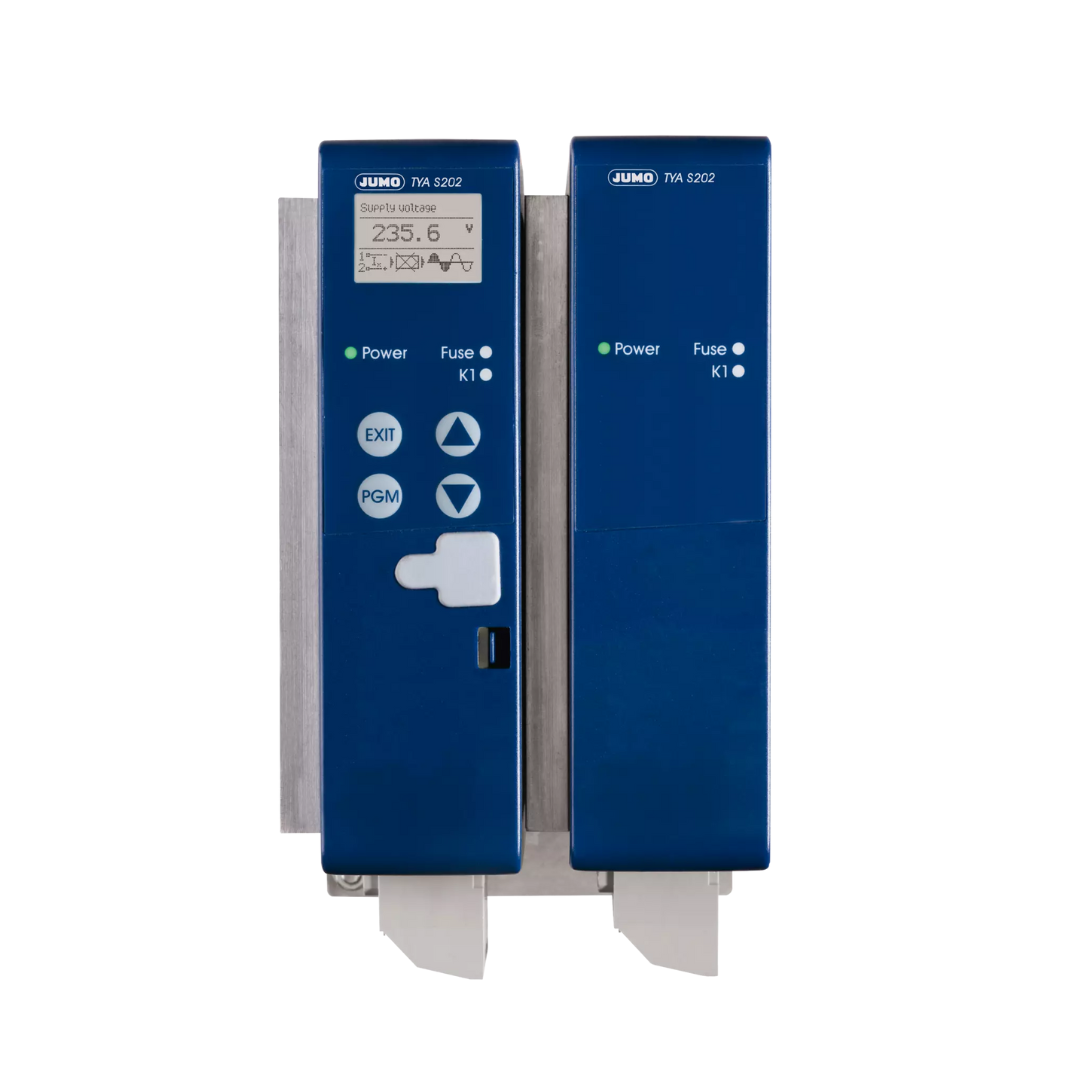

JUMO TYA S202

The JUMO TYA S202 switches three-phase resistive inductive loads in a three-phase economy circuit. The thyristor power controller is used to switch larger resistive and inductive loads such as in furnace construction.

Categories: Actuator, Power Controllers

Technical data
Downloads

Technical data

General technical data
Load voltage	400 V, 460 V, 500 V
Load currents	20 A, 32 A, 50 A, 100 A, 150 A, 200 A, 250 A
Load type	Resistive and resistive inductive loads, in the case of transformer loads, the nominal induction of 1.2 tesla must not be exceeded (value is 1.45 T in the case of mains overvoltage).
Operating modes	Burst-firing operation
Configuration	Setup/USB-powered; plain text display on the device
Special features	Transfer of the setup data possible even without voltage supply to the device (USB port supply), network load optimization through dual energy management, soft start function with pulse groups, load monitoring for the detection of partial load failure or load short circuit “Teach-In”, integrated diagnosis systems, such as rotary field detection
Approval	UL 508
Protection type	IP20

General technical data

Load voltage

400 V, 460 V, 500 V

Load currents

20 A, 32 A, 50 A, 100 A, 150 A, 200 A, 250 A

Load type

Resistive and resistive inductive loads, in the case of transformer loads, the nominal induction of 1.2 tesla must not be exceeded (value is 1.45 T in the case of mains overvoltage).

Operating modes

Burst-firing operation

Configuration

Setup/USB-powered; plain text display on the device

Special features

Transfer of the setup data possible even without voltage supply to the device (USB port supply), network load optimization through dual energy management, soft start function with pulse groups, load monitoring for the detection of partial load failure or load short circuit “Teach-In”, integrated diagnosis systems, such as rotary field detection

Approval

UL 508

Protection type

IP20
