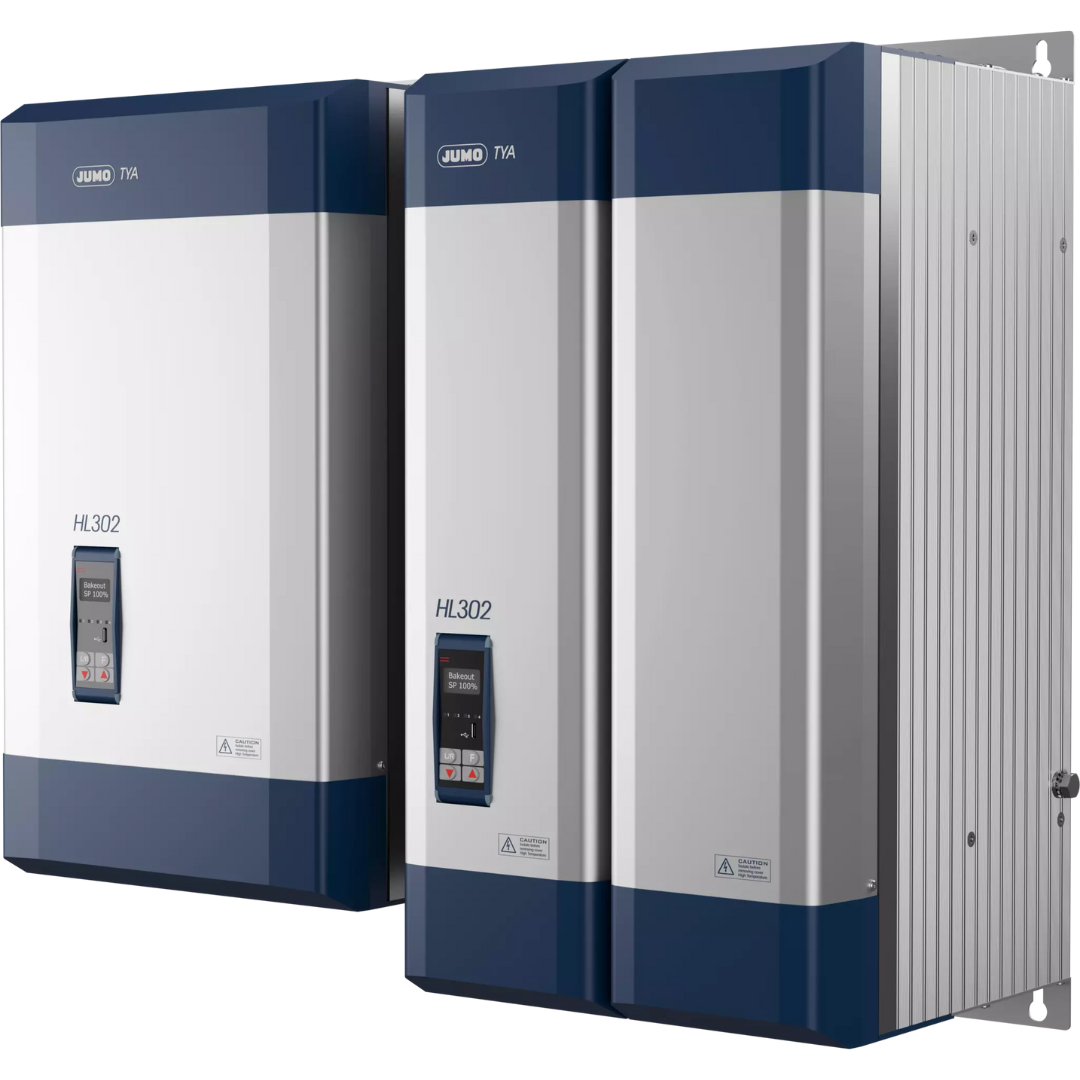

JUMO TYA HL302
The JUMO TYA HL302 is characterized by an area of application from 300 to 800 A, a compact design, and efficient top-bottom wiring. All these factors make it a valuable tool in power control processes. The integrated data logging function increases process reliability and ensures smooth operations in day-to-day business. In addition, extensive setup functions simplify configuration and startup.
Customer Benefits Overview
High flexibility as it can be used for all load types and a wide range of fieldbus interfaces
Fewer versions in stock thanks to increased flexibility
Energy conservation through optional load management
Process reliability and optimization through data logging
Reduced space requirement in the control cabinet due to compact size
Technical data
| General technical data | |
|---|---|
| Load currents | 300 to 800 A |
| Load voltage | 230 to 690 V |
| Control types | U, I, P, U², I² |
| Approvals | cUL 508 (for currents from 300 A to 700 A and nominal voltages up to 600 V), UL (for currents from 800 A and nominal voltages up to 600 V) |
| Interfaces | USB (Setup), Modbus RTU, optional: PROFINET, EtherNet/IP, Modbus TCP, EtherCAT, another Modbus RTU |
| Inputs | 2 digital inputs, 2 analog inputs (0 to 10 V, 0 to 20 mA, potentiometer) |
| Besonderheiten | Compact size; Top-Bottom wiring; Setup program with wizard; practical operating panel; Load management up to 24 zones (optional); data logging with SD memory |
