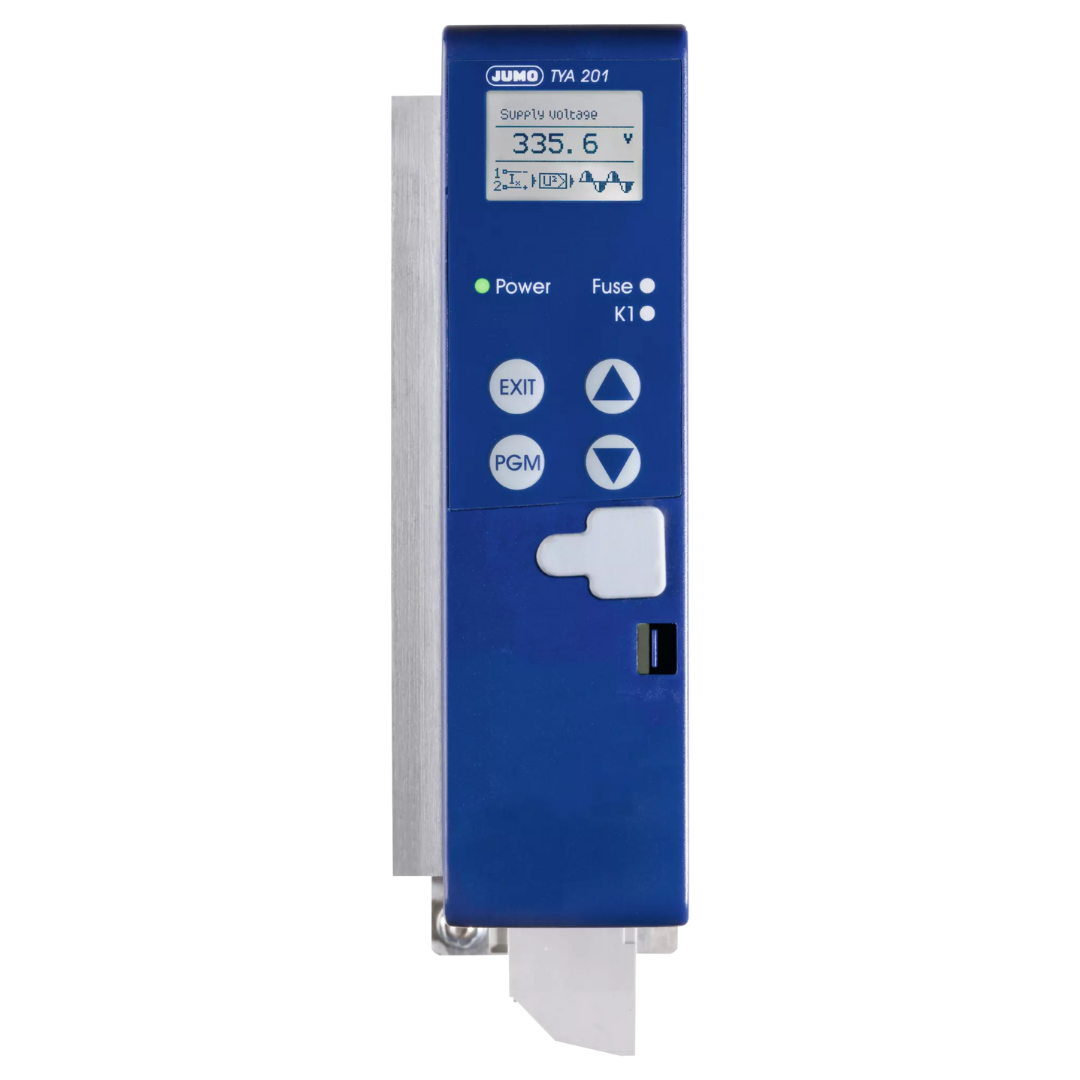

JUMO TYA 201

Thyristor power controllers are used where larger resistive and inductive loads have to be switched (e.g. in industrial furnace construction and plastics processing). It consists of 2 antiparallel switched thyristors, the insulated heat sink, and the control electronics.

Categories: Actuator, Power Controllers

Technical data
Downloads

Technical data

General technical data
Subordinate control loop	U, U2 control (as a standard feature); I, I2, P control (optional)
Load type	Resistive load, resistive inductive load, cold/warm ratio 1:16, transformer load, infrared emitter (short, medium, long-wave)
Load voltage	24 V, 42 V, 115 V, 230 V, 400 V, 460 V, 500 V
Load currents	20 A, 32 A, 50 A, 100 A, 150 A, 200 A, 250 A
Approval	cULus
Special features	Current limiting, mains load optimization, dual energy management, “Teach-In” function (partial load failure detection), “r-control” (resistance limitation), intelligent diagnosis system, integrated semiconductor fuse, device configuration without auxiliary voltage, vibrant display, “True RMS” (root mean square)
Control voltage	Control voltage = load voltage
Operating modes	Phase-angle control, burst-firing operation; half-wave control; SSR logical operation; fast logical operation, alpha start; soft start
Ambient temperature	-20 to +70 °C
System interfaces	Modbus, PROFIBUS DP, system bus JUMO mTRON T, EtherCAT, PROFINET
Configuration	Setup/USB-powered; plain text display on the device

General technical data

Subordinate control loop

U, U2 control (as a standard feature); I, I2, P control (optional)

Load type

Resistive load, resistive inductive load, cold/warm ratio 1:16, transformer load, infrared emitter (short, medium, long-wave)

Load voltage

24 V, 42 V, 115 V, 230 V, 400 V, 460 V, 500 V

Load currents

20 A, 32 A, 50 A, 100 A, 150 A, 200 A, 250 A

Approval

cULus

Special features

Current limiting, mains load optimization, dual energy management, “Teach-In” function (partial load failure detection), “r-control” (resistance limitation), intelligent diagnosis system, integrated semiconductor fuse, device configuration without auxiliary voltage, vibrant display, “True RMS” (root mean square)

Control voltage

Control voltage = load voltage

Operating modes

Phase-angle control, burst-firing operation; half-wave control; SSR logical operation; fast logical operation, alpha start; soft start

Ambient temperature

-20 to +70 °C

System interfaces

Modbus, PROFIBUS DP, system bus JUMO mTRON T, EtherCAT, PROFINET

Configuration

Setup/USB-powered; plain text display on the device
