JUMO heatTHERM

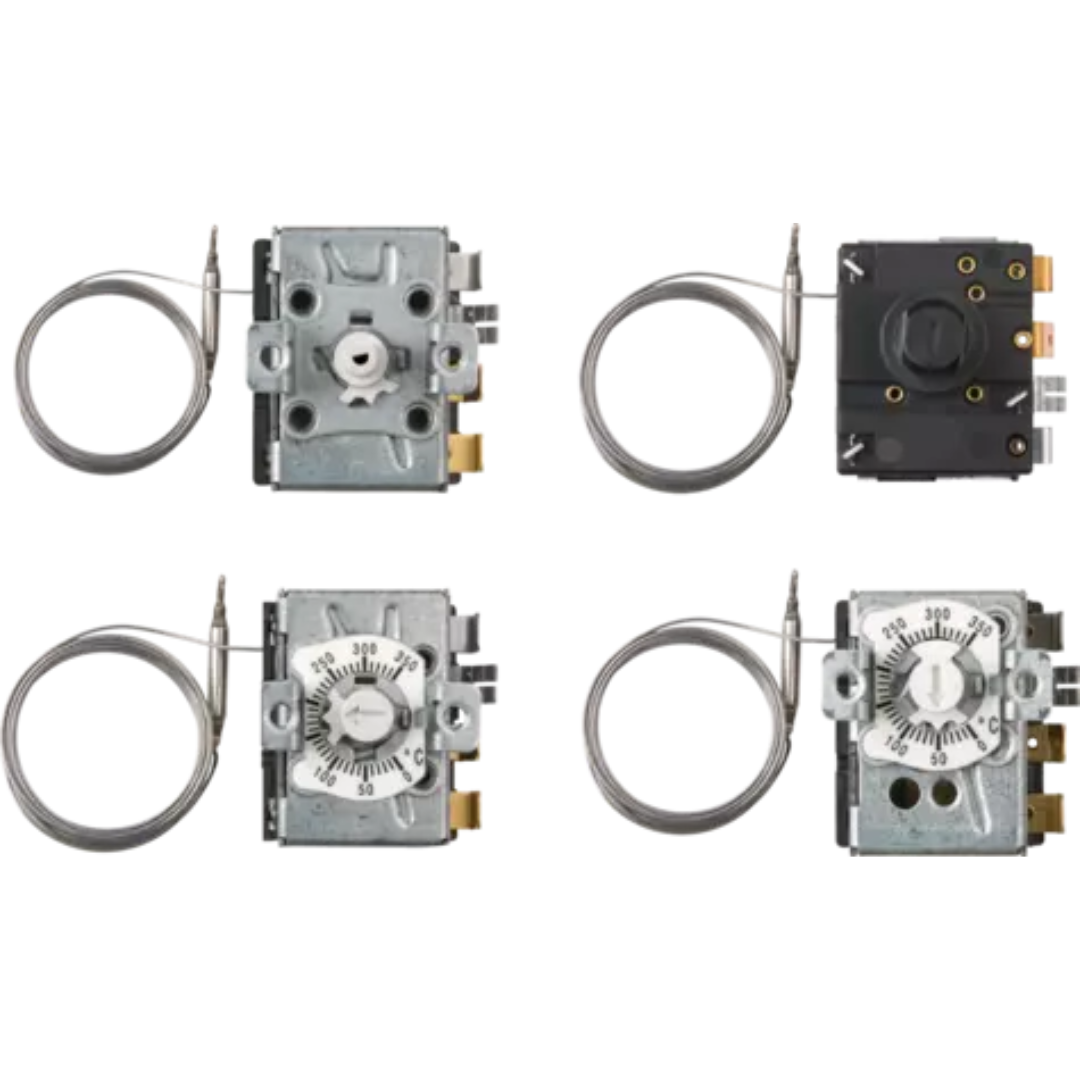

The product is available as temperature controller (TR), temperature monitor (TW) (type 602030), safety temperature monitor (STW), or as a safety temperature limiter (STB) (type 602031). The panel-mounted thermostat is RoHS-compliant and cadmium-free.

Categories: Monitors & limiters, Temperature, Thermostats

Technical data
Downloads

Technical data

general technical data
Versions	Temperature controller (TR), temperature monitor (TW), safety temperature monitor (STW), safety temperature limiter (STB)
Switching capacity	16 A, 230 V
Switching elements	Single-pole snap-action switch
Maximum control range/limit value	350 °C
Areas of application	Heat pumps, heating industry, air-conditioning industry, heating cabinets, plastics industry, furnace construction, general mechanical engineering
Approvals	DIN, UL, PED, EAC
Features	Economic large-scale production, temperature compensation as a standard feature

general technical data

Versions

Temperature controller (TR), temperature monitor (TW), safety temperature monitor (STW), safety temperature limiter (STB)

Switching capacity

16 A, 230 V

Switching elements

Single-pole snap-action switch

Maximum control range/limit value

350 °C

Areas of application

Heat pumps, heating industry, air-conditioning industry, heating cabinets, plastics industry, furnace construction, general mechanical engineering

Approvals
