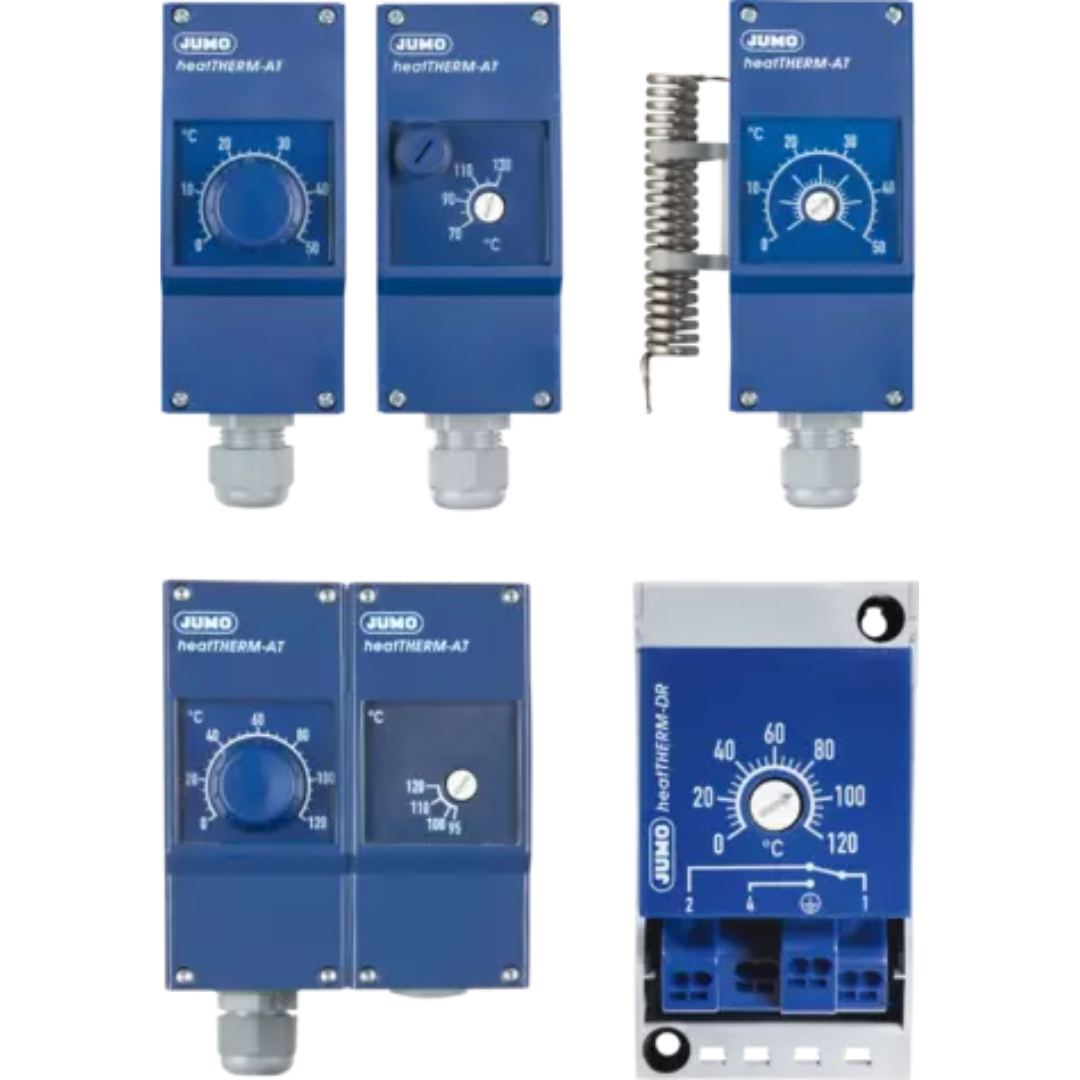

JUMO heatTHERM-AT and DR

The JUMO heatTHERM-DR (design type 7+8) type is a specific variation with a special case bottom section for DIN rail or wall mounting. As a result, easy installation on mounting rails TH35 according to DIN EN 60715 (e.g. in control cabinets) is possible.

Categories: Monitors & limiters, Temperature, Thermostats

Technical data
Downloads

Technical data

general technical data
Versions	Temperature controller (TR), temperature monitor (TW), safety temperature monitor (STW), safety temperature limiter (STB)
Switching capacity	16 A, 230 V
Switching elements	Single-pole snap-action switch
Maximum control range/limit value	350 °C
Protection type	IP40, IP54 optional
Areas of application	Building automation, heating industry, air-conditioning industry, control cabinets (DR), general mechanical engineering
Approvals	DIN, UL, PED, EAC
Features	Single and double thermostat; room thermostat; thermostat for DIN-rail mounting; exhaust gas temperature monitor

general technical data

Versions

Temperature controller (TR), temperature monitor (TW), safety temperature monitor (STW), safety temperature limiter (STB)

Switching capacity

16 A, 230 V

Switching elements

Single-pole snap-action switch

Maximum control range/limit value

350 °C

Protection type

IP40, IP54 optional

Areas of application
