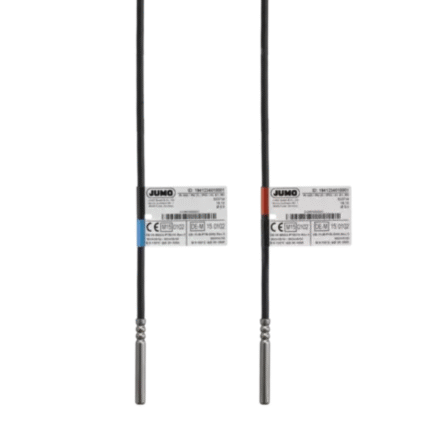

JUMO HEATtemp

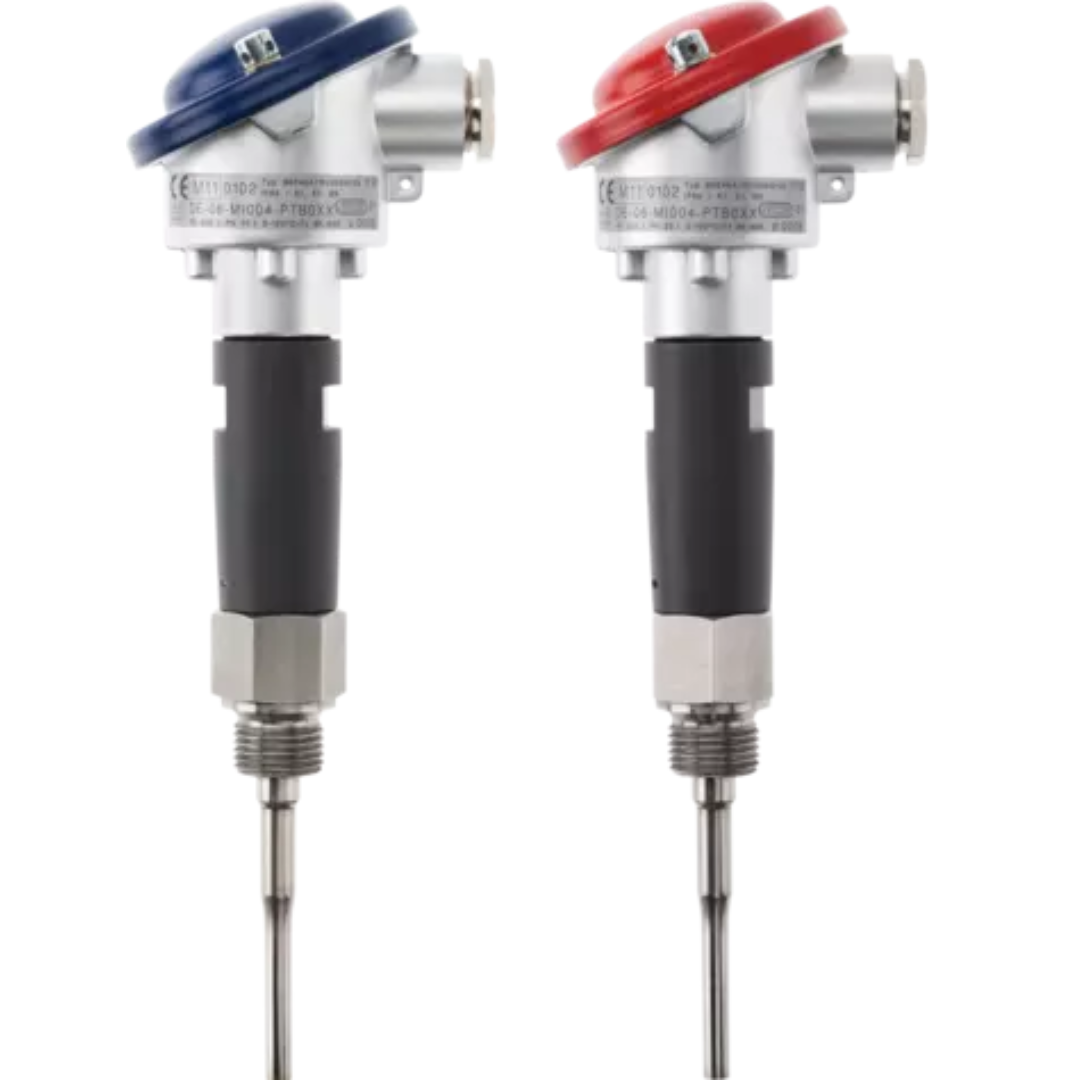

Combined cold and heat meter RTD temperature probes are used for measuring the temperature in closed pipeline systems. Due to the installation in thermowells with fitting tolerance, the system no longer needs to be emptied during regular replacement once the certification period has elapsed.
Technical data
| general technical data | |
|---|---|
| Terminal head | Form B |
| Protection tube | Stainless steel |
| Temperature sensor | Pt100, Pt500, Pt1000 |
| Temperature | 0 to 120 °C (cold), 0 to 180 °C (heat) |
| Minimum immersion depth | 25 mm |
| Insertion length | 85 to 400 mm |
| Maximum pressure | 40 bar (with thermowell) |
| Protection type | IP65 |
| Option | Two-wire or four-wire circuit |
| Accessories | Coordinated thermowells (902440) and installation locations (902442) |
