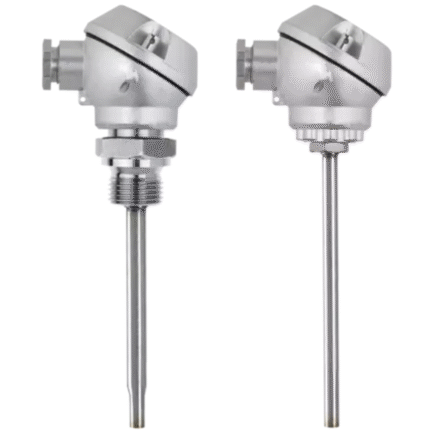

JUMO HEATtemp

Combined cold/heat meter RTD temperature probes are used for temperature measurement in closed pipeline systems. Direct mounting without an additional thermowell is recommended to achieve optimum thermal coupling to the measurement medium in the heating system.

Categories: RTD temperature probes, Temperature, Temperature sensor for heat meters

Technical data
Downloads

Technical data

general technical data
Terminal head	Form B
Process connection	Thread G 1/2, stainless steel
Protection tube	Stainless steel
Temperature sensor	Pt100, Pt500, or Pt1000
Minimum immersion depth	25 mm
Insertion length	85 to 280 mm
Protection type	IP65
Option	Two-wire or four-wire circuit
Special features	Type examination certificate for heat meter MID and domestic approval for combined cold/heat meters as exchangeable temperature probes; fulfils the requirements of DIN EN 1434; AGFW FW 202, and FW 211; pairing and declaration of conformity according to the German Weights and Measures Act (MessEG) and MID; production certified according to module D (MID) (CE and metrology identification marking)

general technical data

Terminal head

Form B

Process connection

Thread G 1/2, stainless steel

Protection tube

Stainless steel

Temperature sensor

Pt100, Pt500, or Pt1000

Minimum immersion depth

25 mm

Insertion length

85 to 280 mm

Protection type

IP65

Option

Two-wire or four-wire circuit

Special features

Type examination certificate for heat meter MID and domestic approval for combined cold/heat meters as exchangeable temperature probes; fulfils the requirements of DIN EN 1434; AGFW FW 202, and FW 211; pairing and declaration of conformity according to the German Weights and Measures Act (MessEG) and MID; production certified according to module D (MID) (CE and metrology identification marking)
