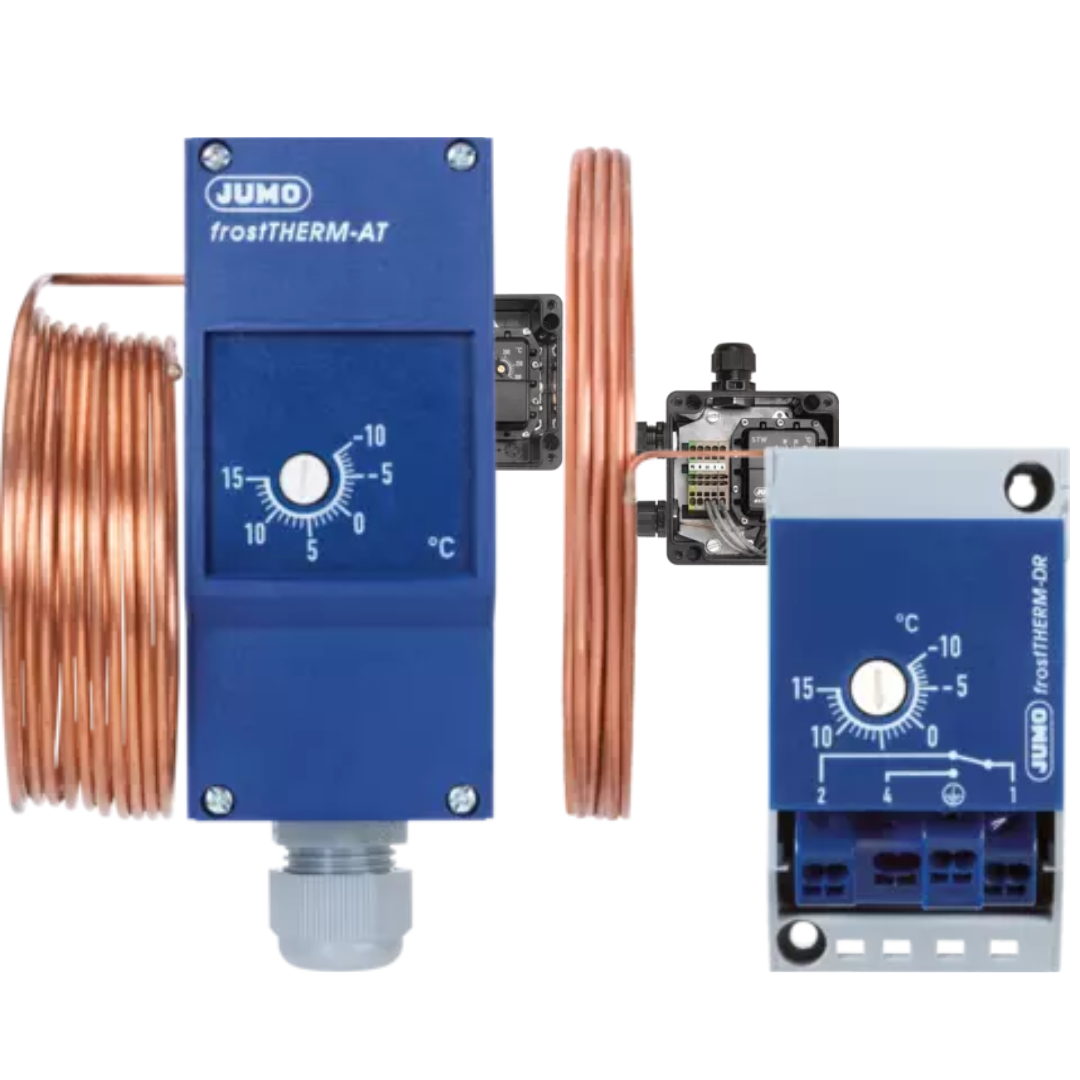

JUMO frostTHERM-AT/-DR
The product monitors the temperature in ventilation and air-conditioning systems. It has a small switching differential and a high level of reproducibility. The AT version allows mounting on the wall; the DR version is suitable for DIN-rail mounting.
Technical data
| general technical data | |
|---|---|
| Versions | Safety temperature monitor (STW), safety temperature limiter (STB) |
| Switching capacity | 16 A, 230 V |
| Switching elements | Single-pole snap-action switch |
| Maximum control range/limit value | 15 °C |
| Protection type | IP40, IP65 optional |
| Areas of application | Air-conditioning and refrigeration system construction, refrigeration units, mechanical and plant engineering |
| Approvals | EAC |
| Features | Probe line available in 3 m, 6 m, and 12 m |
