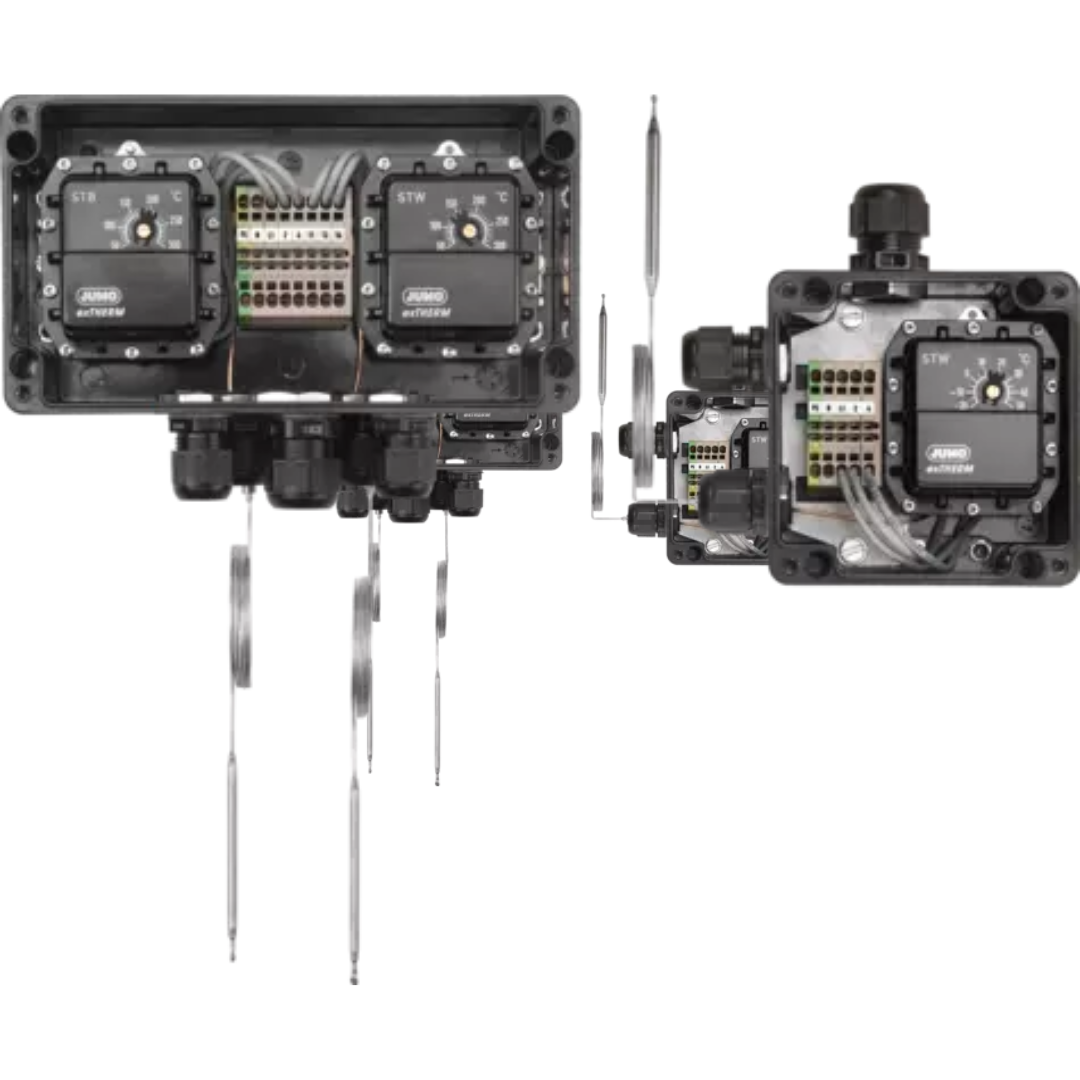

JUMO exTHERM-AT

The product monitors and controls temperature in potentially explosive areas. Use in environments with gas and steam is permitted (zones 1 and 2); use in environments with conductive dust (zones 21 and 22) is also permitted.

Categories: Monitors & limiters, Temperature, Thermostats

Technical data
Downloads

Technical data

general technical data
Protection type	IP65, IP67 optional
Maximum control range/limit value	500 °C
Switching elements	Pressure-resistant enclosed panel-mounted thermostat
Approvals	ATEX, IECEx
Versions	Temperature monitor (TW), safety temperature monitor (STW), safety temperature limiter (STB)
Switching capacity	16 A, 230 V, optionally 25 A, 230 V
Areas of application	Potentially explosive areas in zones 1 and 2 or 21 and 22; use in zone 0 with corresponding thermowell
Features	Single thermostat and double thermostat

general technical data

Protection type

IP65, IP67 optional

Maximum control range/limit value

500 °C

Switching elements

Pressure-resistant enclosed panel-mounted thermostat

Approvals

ATEX, IECEx

Versions

Temperature monitor (TW), safety temperature monitor (STW), safety temperature limiter (STB)

Switching capacity
