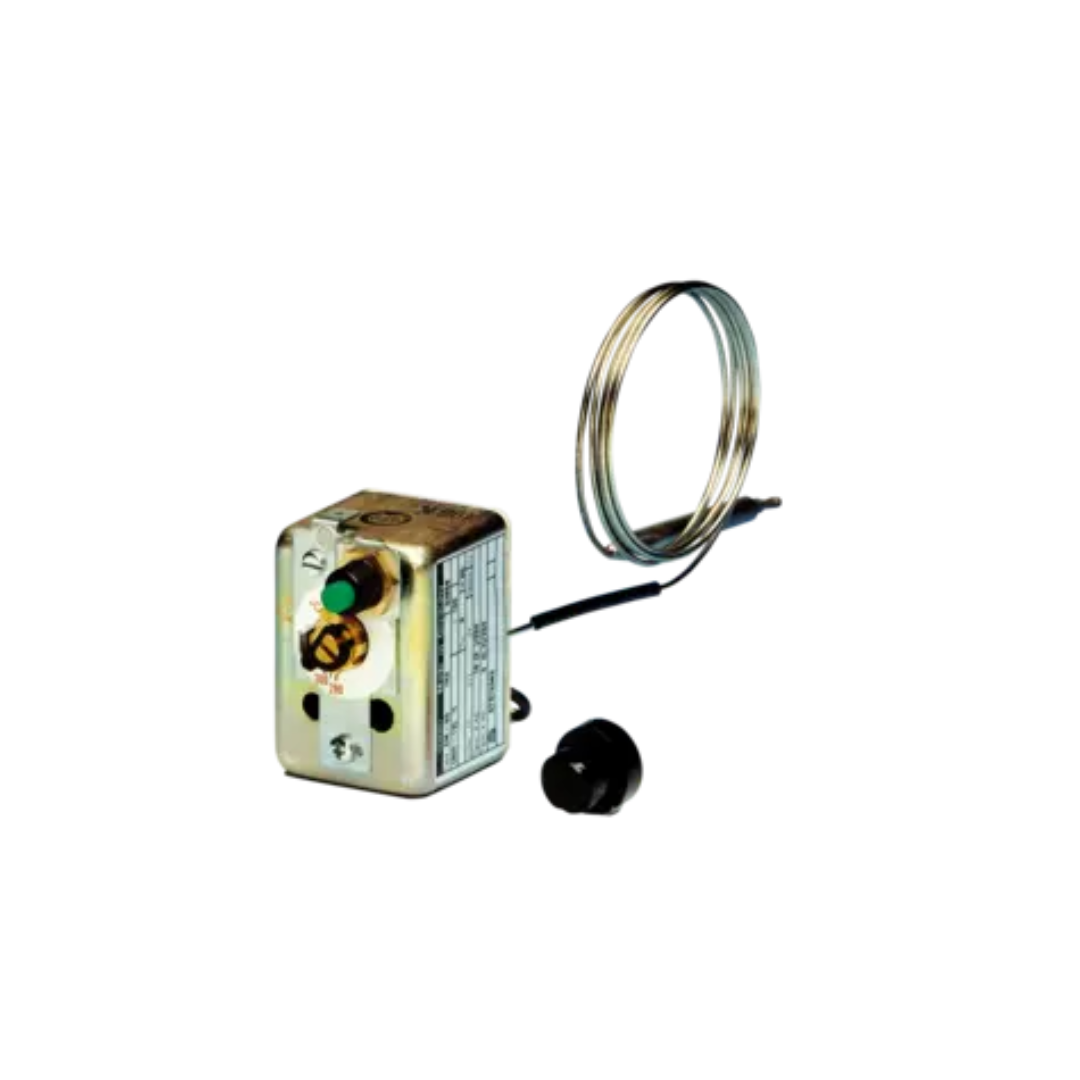

Panel-mounted thermostats
The devices are available as temperature monitors (TW), temperature limiters (TB), and as safety temperature limiters (STB). In the event of a malfunction the STB places the system being monitored in a safe operating status. Panel-mounted thermostats operate according to the liquid expansion principle.
Technical data
| general technical data | |
|---|---|
| Versions | Temperature controller (TR), temperature monitor (TW), temperature limiter (TB), safety temperature monitor (STW), safety temperature limiter (STB) |
| Switching capacity | 16 A, 230 V |
| Switching elements | 1, 2, 3, or 4 single-pole snap-action switches |
| Maximum control range/limit value | 650 °C |
| Areas of application | Heating industry, air-conditioning industry, heating cabinets, plastics industry, furnace construction, general mechanical engineering |
| Approvals | DIN, UL, PED, EAC, DVGW (up to 500 °C) |
| Features | Batch size according to customer specification, temperature ranges up to 650 °C possible |
