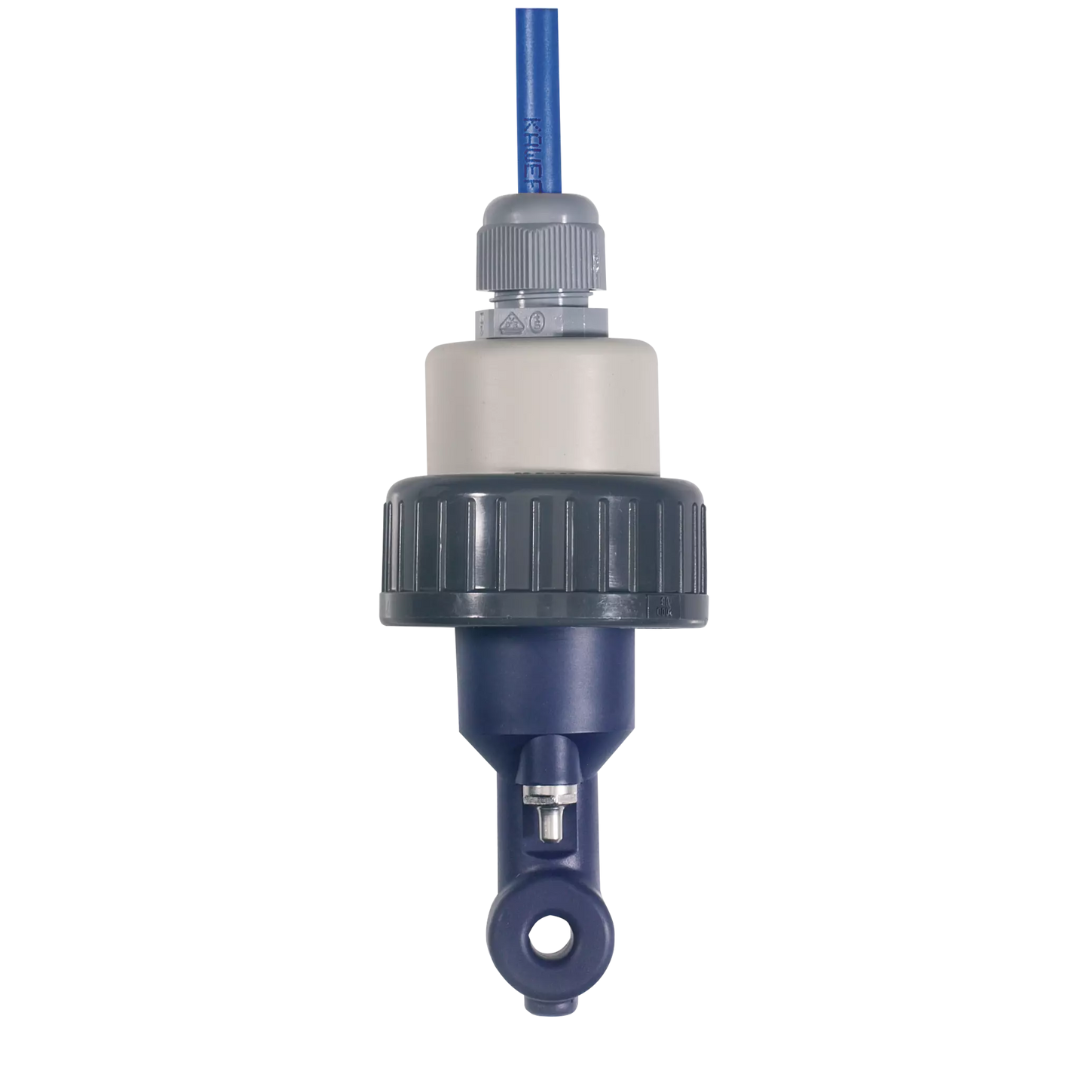

JUMO ecoLine Ci

The sensor acquires the electrolytic conductivity of a process liquid. The inductive measurement method makes the sensor almost maintenance-free compared to the conductive 2-pole or 4-pole measurement method. Primarily for use in water technology systems

Categories: Electrodes/sensors, Liquid analysis

Technical data
Downloads

Technical data

General technical data
Measuring range	0 to 2000 mS/cm (recommended area of application starting at approx. 50 µS/cm)
Sensor material	PP or PVDF
Admissible medium temperature:	-10 to +80 °C PP (100 °C PVDF); temporarily ≤100 °C PP (100 °C PVDF)
Features	Maintenance-free conductivity measurement; compact, proven sensor; wide variety of process connections
Areas of application	Drinking water and wastewater; salt dilution control in cooling towers; seawater desalination plants; rinsing baths (electroplating plants); vehicle washing systems; air washers; use in media subject to a small amount of chemicals

General technical data

Measuring range

0 to 2000 mS/cm (recommended area of application starting at approx. 50 µS/cm)

Sensor material

PP or PVDF

Admissible medium temperature:

-10 to +80 °C PP (100 °C PVDF); temporarily ≤100 °C PP (100 °C PVDF)

Features

Maintenance-free conductivity measurement; compact, proven sensor; wide variety of process connections

Areas of application

Drinking water and wastewater; salt dilution control in cooling towers; seawater desalination plants; rinsing baths (electroplating plants); vehicle washing systems; air washers; use in media subject to a small amount of chemicals
