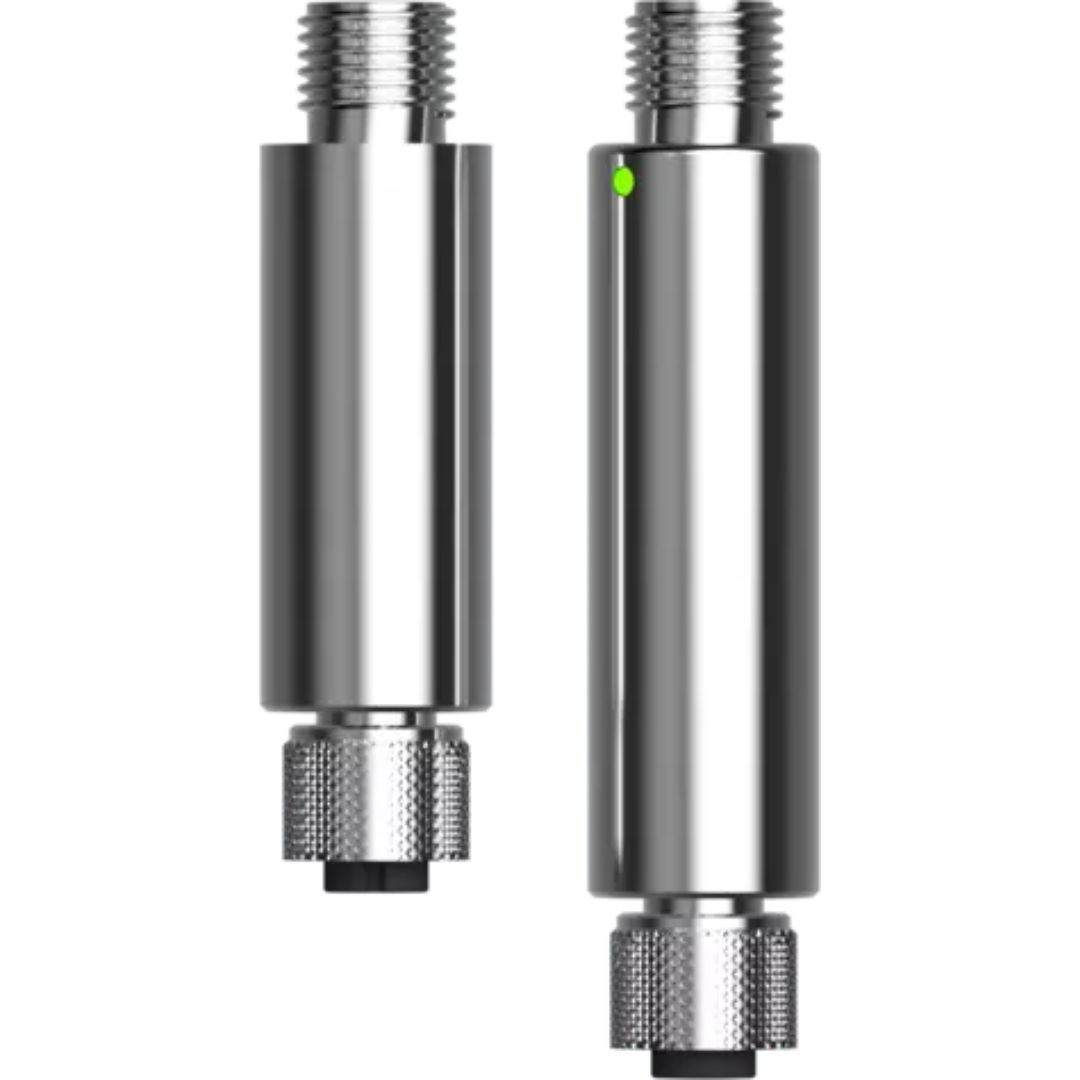

JUMO dTRANS T09

The temperature transmitter for Pt100 or Pt1000 sensors is ideal for simple retrofitting of plants. The user can choose between an analog output or an IO-Link interface. The cable transmitter’s high level of vibration and shock resistance makes it reliable and durable.

Categories: Temperature, Transmitters

Technical data
Downloads

Technical data

general technical data
Version	JUMO dTRANS T09 AS (analog output), JUMO dTRANS T09 DS (digital output)
Format	Cable transmitter
Mounting	In the cable line
Measurement input	RTD temperature probe with Pt100 or Pt1000, four-wire connection
Connection	M12 (on both sides)
Output	Current DC 4 to 20 mA or IO-Link interface
Housing	Stainless steel
Protection type	IP66, IP67, and IP69
Approval	cULus
Special features	Customer-specific configuration possible, high degree of vibration and shock resistance, separated from temperature sensor (thermally and mechanically decoupled)

general technical data

Version

JUMO dTRANS T09 AS (analog output), JUMO dTRANS T09 DS (digital output)

Format

Cable transmitter

Mounting

In the cable line

Measurement input

RTD temperature probe with Pt100 or Pt1000, four-wire connection

Connection

M12 (on both sides)

Output

Current DC 4 to 20 mA or IO-Link interface

Housing

Stainless steel

Protection type

IP66, IP67, and IP69

Approval

cULus

Special features

Customer-specific configuration possible, high degree of vibration and shock resistance, separated from temperature sensor (thermally and mechanically decoupled)
