JUMO dTRANS T07

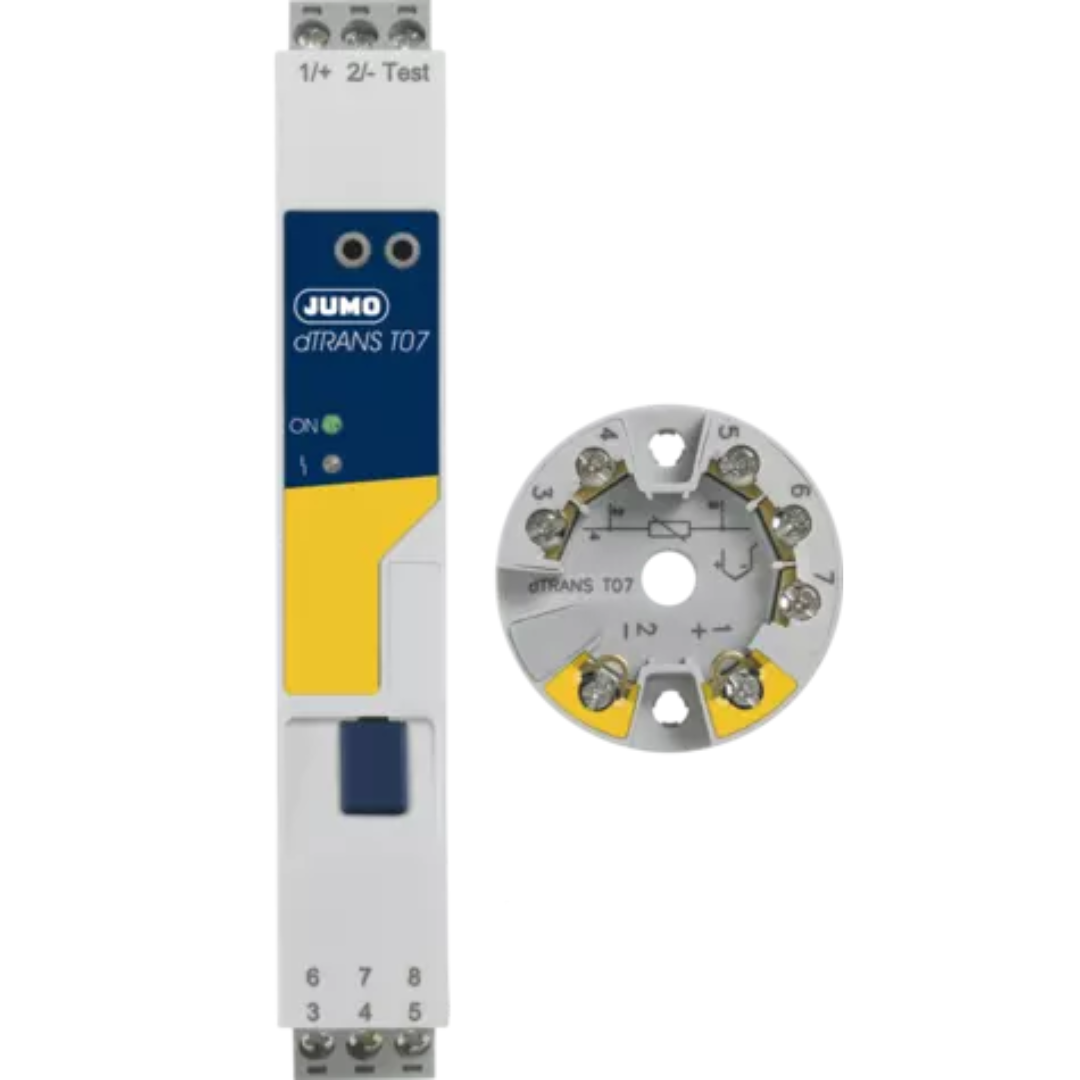

The JUMO dTRANS T07 device series is a two-channel temperature transmitter with HART® communication. The devices are available in 2 versions: for installation in a B-head or for DIN-rail mounting. The versions with Ex and SIL approval for SIL 2/3 enable reliable use.
Technical data
| general technical data | |
|---|---|
| Galvanic isolation | 2 kV |
| Installation | In terminal head form B or on mounting rail/DIN rail 35 × 7.5 mm |
| RTD temperature probe input | Pt50, Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Cu50, Cu100, two-wire/three-wire/four-wire circuit |
| Thermocouple input | A,B,C,D,E,J,K,L,N,R,S,T,U |
| Ambient temperature | -40 to +85 °C |
| Output | 4 to 20 mA (invertible) |
| Special features | 2 universal measurement inputs (RTD, TC, Ω, mV), high degree of accuracy (0.1 K with Pt100 sensor), output 4 to 20 mA (one-channel loop powered), HART® 7 protocol, SIL 2/SIL 3 hardware/software according to IEC 61508, reliable measuring mode due to sensor monitoring and device hardware error detection, optional plug-in display BD7 for B-head device version |
| NAMUR compliant | NE 43 and NE 89 |
| Voltage supply | DC 11 to 42 V (without SIL and Ex approval) |
| Calibration accuracy | ± 0.05 % |
| Configuration | Via HART® modem with JUMO DTM or HART® communicator with JUMO DD |
| Approval | ATEX/IECEx, SIL, cULus |
