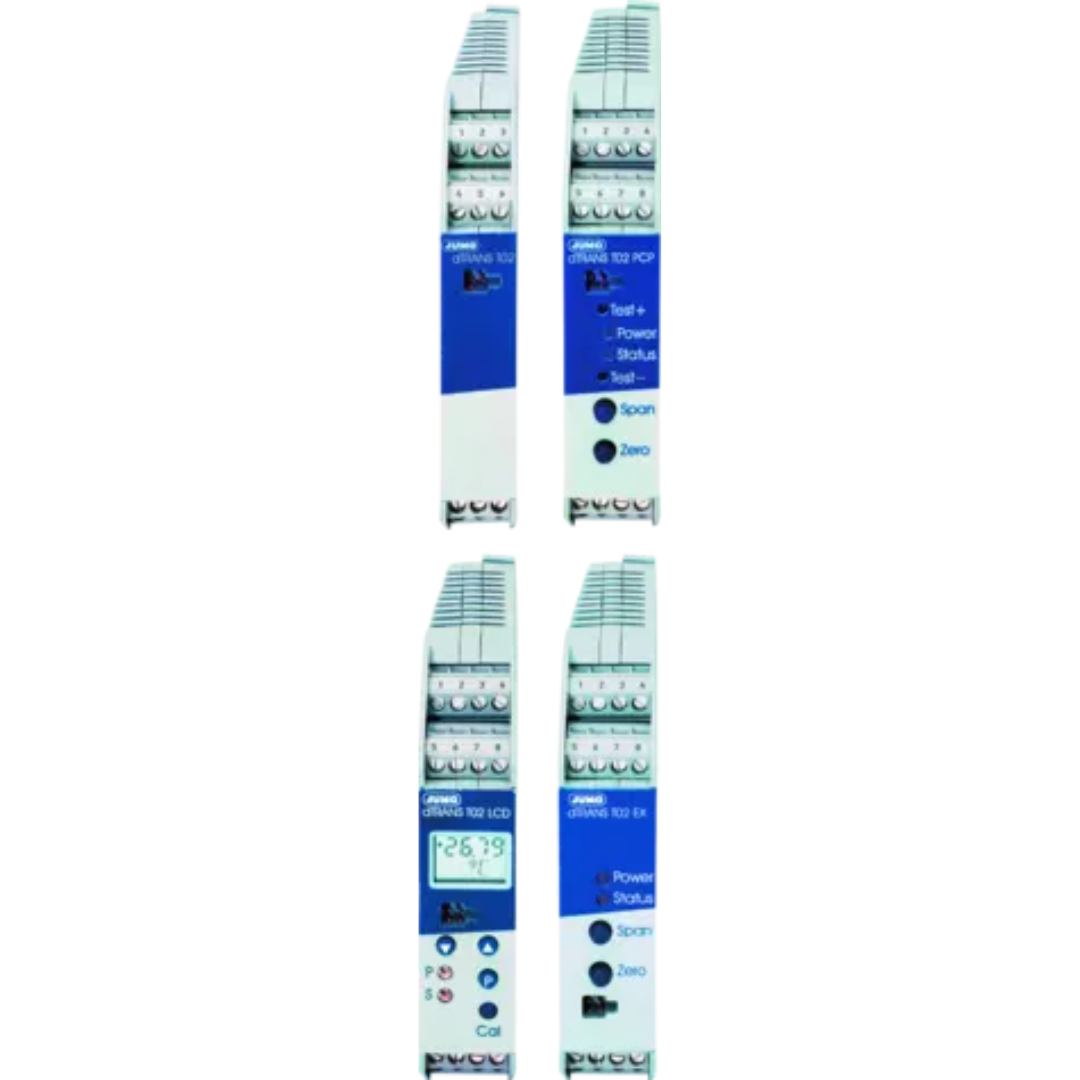

JUMO dTRANS T02

JUMO dTRANS T02 transmitters are equipped with a microprocessor for digital signal processing. The input and the output are galvanically isolated. It can be installed on DIN rails. Electrical connection via screw terminals for strand or wire.

Categories: Temperature, Transmitters

Technical data
Downloads

Technical data

general technical data
Galvanic isolation	50 V (triple isolation)
Installation	On mounting rail/DIN rail 35 × 7.5 mm
RTD temperature probe input	Pt100, Pt500, Pt1000, resistance transmitter, two-wire/three-wire/four-wire circuit
Thermocouple input	L, J, U, T, K, E, N, S, R, B, D, C, -10 to +10 V,-20 to +20 V
Ambient temperature	-10 to +60 °C
Output	0 (4) to 0 mA, 0 (2) to 10 V
Special features	Universal transmitter, customer-specific linearization, open-collector output, alarm output
NAMUR compliant	NE21
Voltage supply	DC 24 V, AC 110 to 230 V (four-wire transmitter)
Calibration accuracy	± 0.075 %
Configuration	Via PC interface or keys (LCD variant)
Approval	ATEX/IECEx

general technical data

Galvanic isolation

50 V (triple isolation)

Installation

On mounting rail/DIN rail 35 × 7.5 mm

RTD temperature probe input

Pt100, Pt500, Pt1000, resistance transmitter, two-wire/three-wire/four-wire circuit

Thermocouple input

L, J, U, T, K, E, N, S, R, B, D, C, -10 to +10 V,-20 to +20 V

Ambient temperature

-10 to +60 °C

Output
