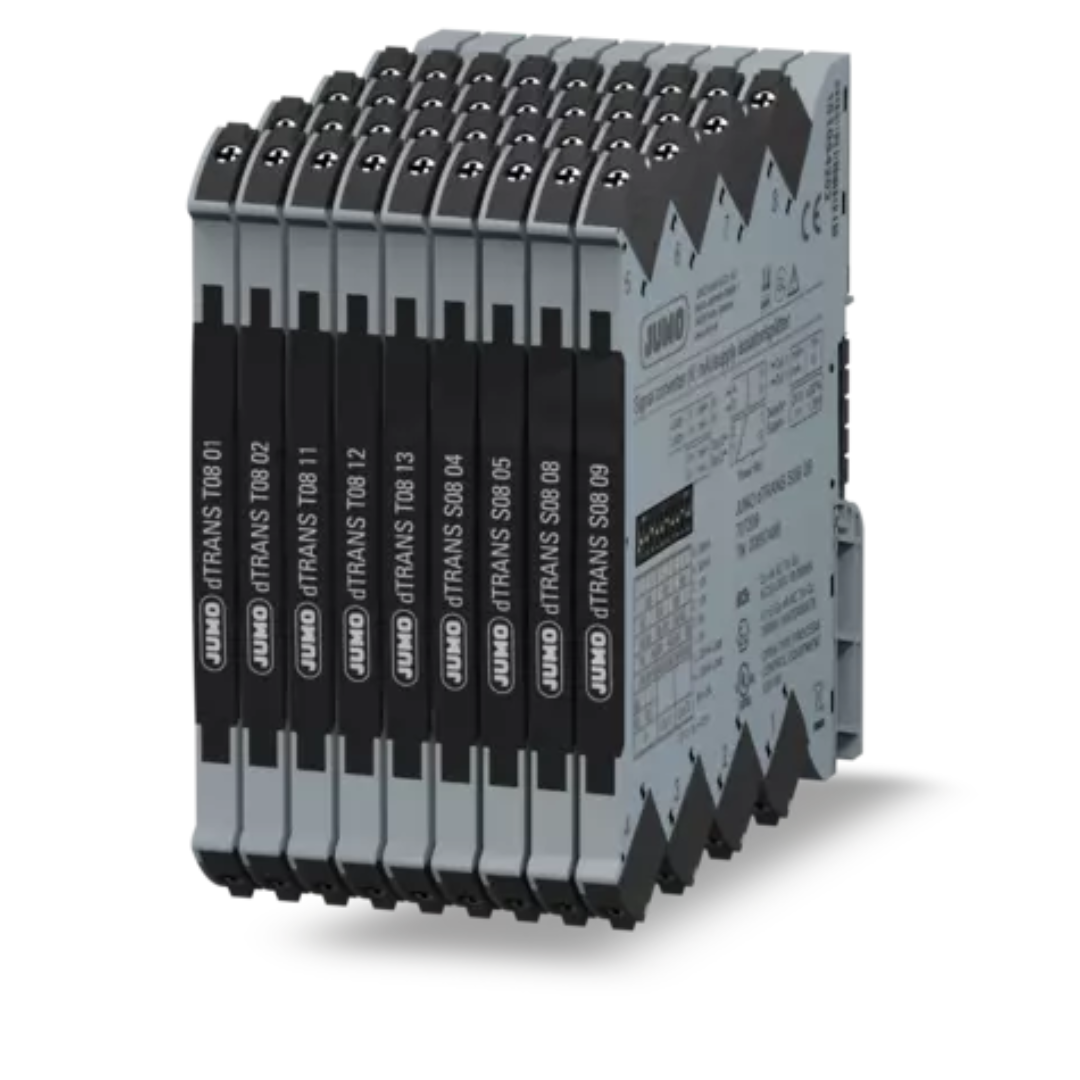

JUMO dTRANS T08 xx
Temperature transmitters transform the physical temperature signal into a standardized output signal and therefore form the basis of a smooth process flow. Therefore the quality of the signal is crucial. For this purpose, the JUMO dTRANS 08 series in slimline housing ensures a high level of accuracy.
Technical data
| general technical data | |
|---|---|
| Interface | HART® device versions also configurable via DTM with the PACTware PC program |
| Special features | 1000 temperature ranges can be set directly via the DIP switch. High level of accuracy of up to 0.05 % for all selectable temperature measuring ranges, high interference immunity according to NAMUR NE21, close mounting |
| Power consumption | <0.65 to 1.2 W |
| Vibration resistance | Up to 4 g |
| Response time | < 30 ms/300 ms (optional) |
| Ambient temperature | -25 to +70 °C |
| Temperature coefficient | <0.01 %/°C |
| Approvals | DNV GL, UL (listed), ATEX, IECEx |
| Application options | Mechanical/plant engineering and control cabinet construction; chemical industry; cooling systems; industrial furnaces; process, food, pharmaceutical, and plastics industry; renewable energy; power plant technology; water treatment; heating and cooling industry |
| Housing | 6 mm slimline housing |
Downloads
Data Sheet
Operating Manual
Operating Manual
– DS 08 14
Operating Manual
Test confirmation
Test confirmation
Certificate
Brochure
Brochure
Order details
