JUMO Wtrans B

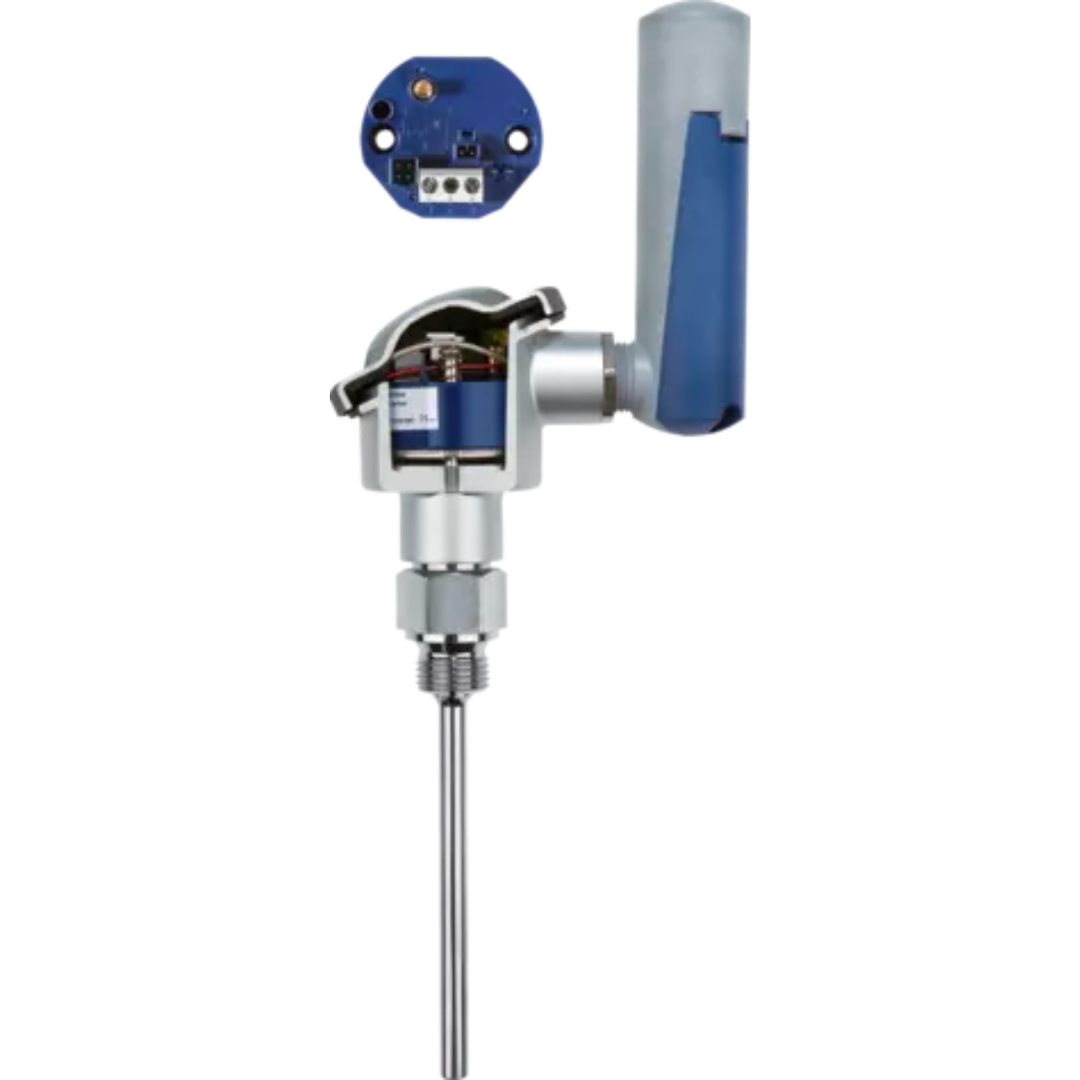

The wireless transmitter measures temperature and other process variables. The compact design type of the aerial battery housing allows for simple installation on type B DIN terminal head.

Categories: RTD temperature probes, Temperature, Transmitters

Technical data
Downloads

Technical data

general technical data
Galvanic isolation	> 10 kV
Installation	In terminal head, type B
Input	Pt100, Pt500, Pt1000, resistance transmitter, resistance/potentiometer (two-wire, three-wire, four-wire circuit), R, S, B, J, T, E, K, N, L, U, A1, C, D, 0 to 50 mV, 0(4) to 20 mA (via external shunt)
Ambient temperature	-30 to +85 °C
Output	Wireless-based with open air range of up to 300 m (transmission frequency 868.4 MHz)
Special features	Transmission interval of 1 to 3600 s, customer-specific linearization
Calibration accuracy	± 0.1 %
NAMUR compliant	NE21
Configuration	Via PC interface
Voltage supply	3.6 V Li battery (battery size AA)

general technical data

Galvanic isolation

> 10 kV

Installation

In terminal head, type B

Input

Pt100, Pt500, Pt1000, resistance transmitter, resistance/potentiometer (two-wire, three-wire, four-wire circuit), R, S, B, J, T, E, K, N, L, U, A1, C, D, 0 to 50 mV, 0(4) to 20 mA (via external shunt)

Ambient temperature

-30 to +85 °C

Output

Wireless-based with open air range of up to 300 m (transmission frequency 868.4 MHz)

Special features

Transmission interval of 1 to 3600 s, customer-specific linearization

Calibration accuracy

± 0.1 %

NAMUR compliant

NE21

Configuration

Via PC interface
