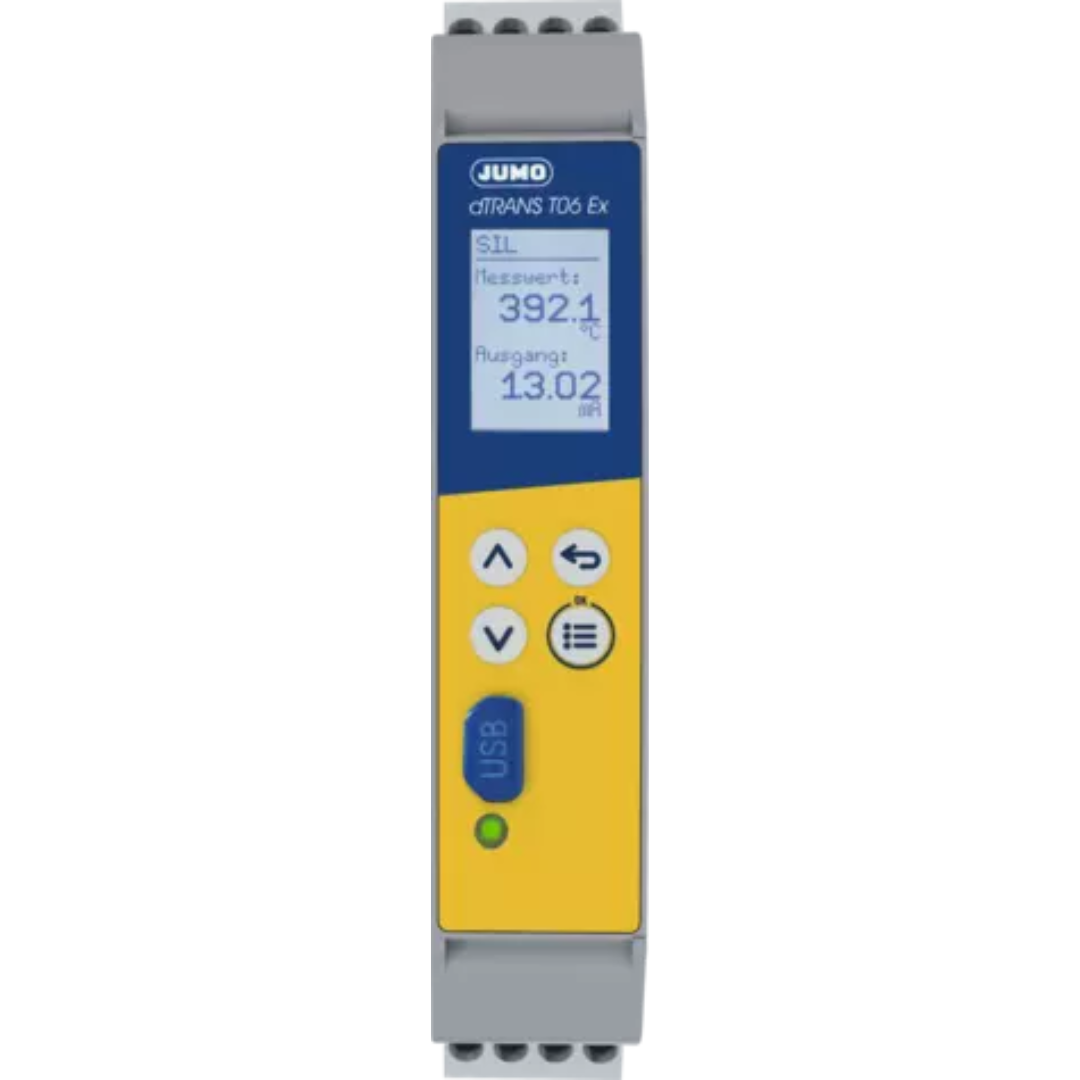

JUMO dTRANS T06 Ex

Above all the JUMO dTRANS T06 Ex multifunctional four-wire transmitter is characterized by its high level of safety. The multipurpose unit of the brand JUMO Safety Performance allows the establishment of safe temperature measuring chains (SIL 2 or 3), which allow the temperature sensor to be used in Ex zone 0.

Categories: Temperature, Transmitters

Technical data
Downloads

Technical data

general technical data
Galvanic isolation	1.8 kV
Installation	Mounting rail 35 mm × 7.5 mm according to DIN IEC 60715
RTD temperature probe input	Pt50, Pt100, Pt500, Pt1000, Ni100, Ni500, Ni1000, Cu50, Cu100, two/three/four-wire circuit
Thermocouple input	L, J, U, T, K, E, N, S, R, B, C, A1, D, L, Chromel® Alumel®, PLII, 0 to 1 V
Ambient temperature	-10 to +70 °C
Output	0(2) to 10 V or 0(4) to 20 mA (invertible)
Special features	Universal input for a number of sensors and standard signals, intuitive operation and configuration on the device or via USB interface with setup program, RS485 interface with Modbus RTU, intelligent additional functions such as min/max drag indicator, operating hours counter and output simulation SIL 2/SIL 3 according to DIN EN 61508 and PL c/d according to ISO 13849, Ex approval according to ATEX and IECEx, sensor matching for RTD temperature probe, customer-specific linearization, high degree of galvanic signal separation, connection diagram available in the display
NAMUR compliant	NE 43
Voltage supply	DC 24 V (four-wire transmitter)
Calibration accuracy	± 0.05 %
Configuration	On the device via USB interface with PC setup program
Approval	SIL and PL, ATEX and IECEx

general technical data

Galvanic isolation

1.8 kV

Installation

Mounting rail 35 mm × 7.5 mm according to DIN IEC 60715

RTD temperature probe input

Pt50, Pt100, Pt500, Pt1000, Ni100, Ni500, Ni1000, Cu50, Cu100, two/three/four-wire circuit

Thermocouple input

L, J, U, T, K, E, N, S, R, B, C, A1, D, L, Chromel® Alumel®, PLII, 0 to 1 V

Ambient temperature

-10 to +70 °C

Output

0(2) to 10 V or 0(4) to 20 mA (invertible)

Special features

Universal input for a number of sensors and standard signals, intuitive operation and configuration on the device or via USB interface with setup program, RS485 interface with Modbus RTU, intelligent additional functions such as min/max drag indicator, operating hours counter and output simulation SIL 2/SIL 3 according to DIN EN 61508 and PL c/d according to ISO 13849, Ex approval according to ATEX and IECEx, sensor matching for RTD temperature probe, customer-specific linearization, high degree of galvanic signal separation, connection diagram available in the display

NAMUR compliant

NE 43

Voltage supply

DC 24 V (four-wire transmitter)

Calibration accuracy

± 0.05 %

Configuration

On the device via USB interface with PC setup program

Approval

SIL and PL, ATEX and IECEx
