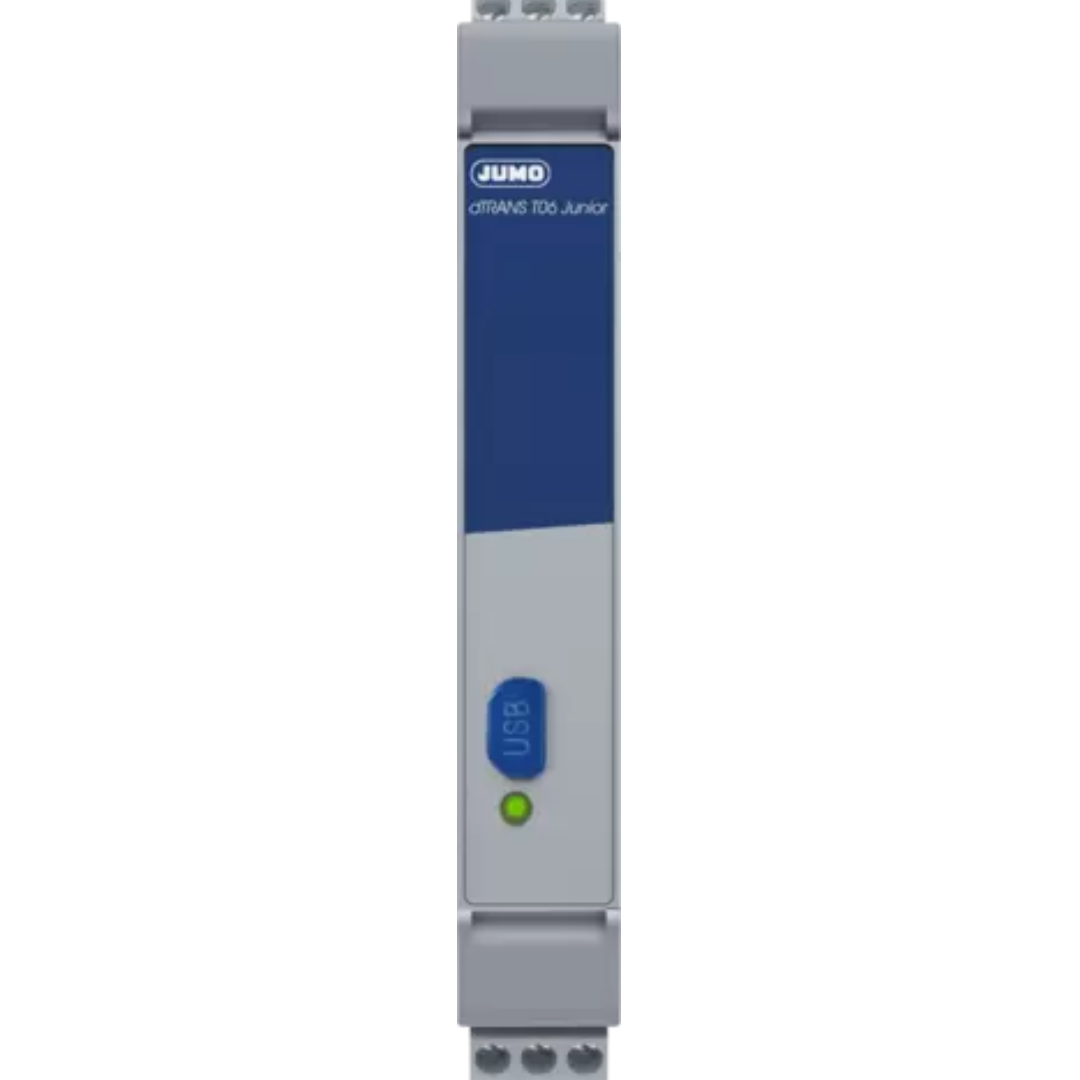

JUMO dTRANS T06 Junior
The JUMO dTRANS T06 Junior multifunction four-wire transmitter is the solution for a wide range of applications in plant engineering due to its galvanic isolation and customer-specific linearization. This entry-level model has a width of only 17.5 mm so that it takes up little space in a control cabinet.
Technical data
| general technical data | |
|---|---|
| Galvanic isolation | 1.0 kV |
| Installation | Mounting rail 35 mm × 7.5 mm according to DIN IEC 60715 |
| Analog input | RTD temperature probe in 2-wire, 3-wire, or 4-wire circuit; resistance transmitter in 3-wire circuit; thermocouple; voltage DC 0 to 1 V |
| Ambient temperature | -10 to +70 °C |
| Analog output | 0(2) to 10 V or 0(4) to 20 mA |
| Voltage supply | DC 24 V |
| Configuration | USB interface with PC setup program |
| Approval | cULus |
