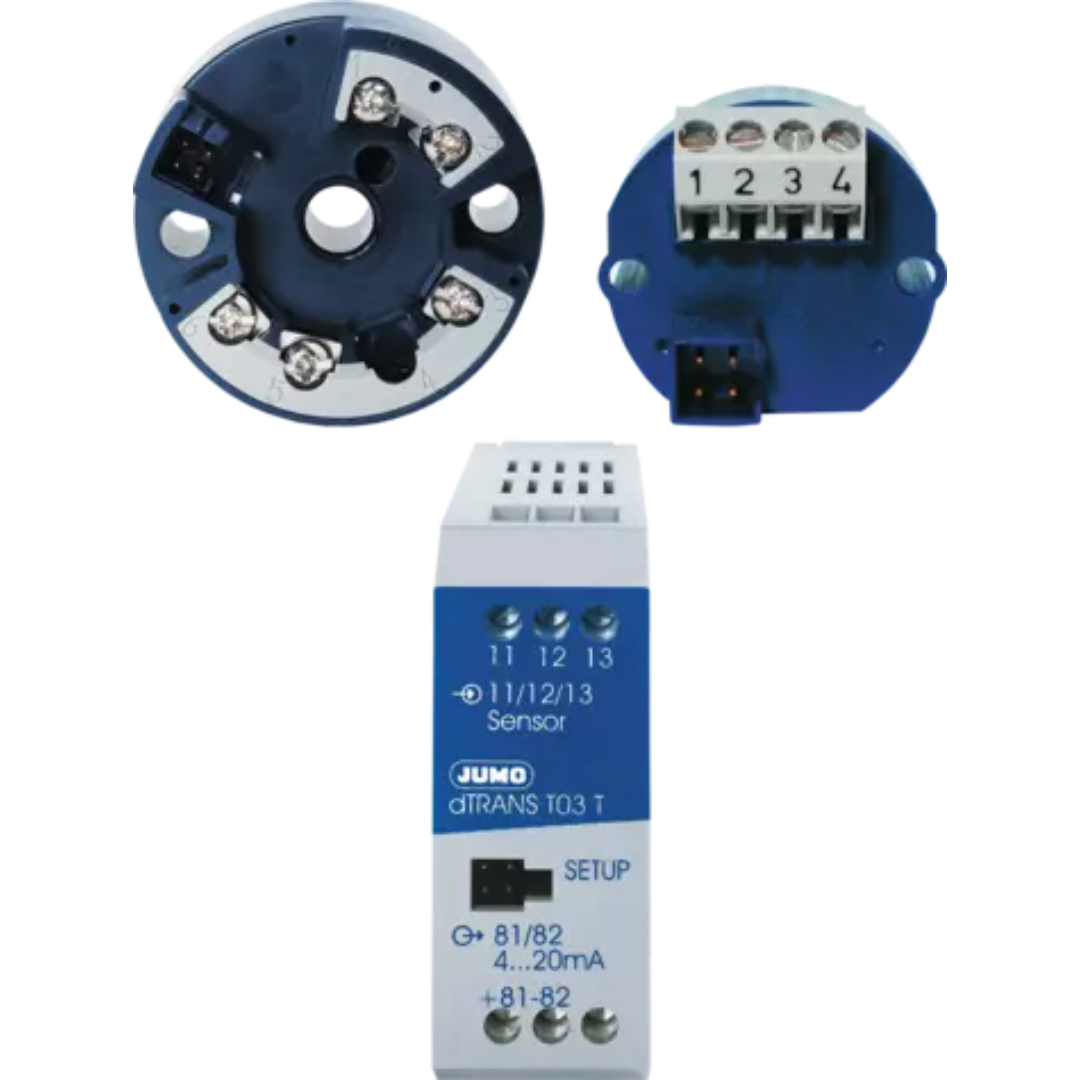

JUMO dTRANS T03
The transmitters intended for industrial applications acquire the temperature with two-wire or three-wire connection. The continuous analog signal path allows for extremely quick output reaction times in the event of a temperature change (analog permanent measurement instead of digital sampling rate).
Technical data
| general technical data | |
|---|---|
| RTD temperature probe input | Pt100, two-wire/three-wire circuit |
| Special features | Analog signal path, can be digitally adjusted/configured |
| NAMUR compliant | NE21 |
| Special features | Analog signal path, can be digitally adjusted |
| Calibration accuracy | ± 0.2 % |
| Configuration | Via PC interface |
| Installation | In terminal head type B/type J or on mounting rail/DIN rail 35 × 7.5 mm |
| Voltage supply | DC 15 to 35 V (two-wire/three-wire transmitter) |
| Output | 4 to 20 mA, 0 to 10 V |
| Ambient temperature | -25 to +70 °C |
| Ambient temperature | -40 to +85 °C |
| Output | 4 to 20 mA, 0 to 10 V |
| Voltage supply | DC 7.5 to 30 V, DC 15 to 30 V (BU) |
