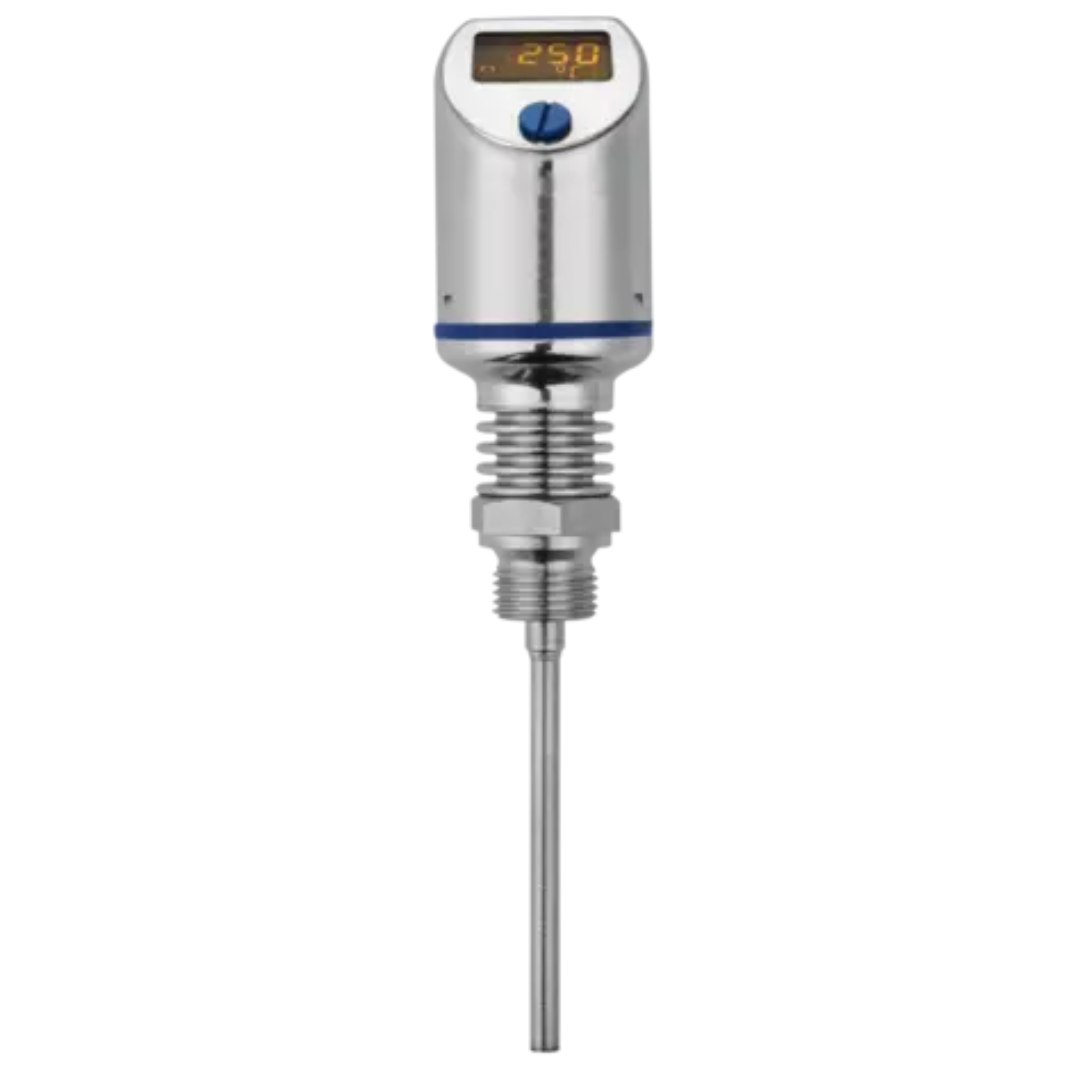

JUMO DELOS T

The highly-precise, electronic temperature switch consists of a protection tube with built-in temperature sensor, a process connection, and attached housing with LCD display for the electronic components. It complies with the European standards to guarantee electromagnetic compatibility (EMC).

Categories: Switches, Temperature

Technical data
Downloads

Technical data

general technical data
Sensor	Pt1000
Process connection	Thread, hygienic connections, screw connections, JUMO PEKA, CIP-compliant process connections, including electropolished Ra< 0.8 µm, hygienic thermowells
Output	1x PNP switching output; 2x PNP switching outputs; 1x PNP switching output; 1x analog output 0(4) to 20 mA, 0 to 10 V
Protection fitting	Stainless steel 316L
Connection	M12 connector
Features	Programmable, switching output, display of the unit selectable, housing and protection fitting made out of stainless steel (316L)
Operating temperature	-50 to +260 °C
Measuring circuits	1
Declaration of conformity	EC 1935/2004 material confirmation
Areas of application	Food and pharmaceutical applications, CIP and SIP plants, mechanical and plant engineering, refrigeration and air-conditioning engineering
Accuracy	Tolerance class: class A (class AA as optional extra)
Protection type	IP67

general technical data

Sensor

Pt1000

Process connection

Thread, hygienic connections, screw connections, JUMO PEKA, CIP-compliant process connections, including electropolished Ra< 0.8 µm, hygienic thermowells

Output

1x PNP switching output; 2x PNP switching outputs; 1x PNP switching output; 1x analog output 0(4) to 20 mA, 0 to 10 V

Protection fitting

Stainless steel 316L

Connection

M12 connector

Features

Programmable, switching output, display of the unit selectable, housing and protection fitting made out of stainless steel (316L)

Operating temperature

-50 to +260 °C

Measuring circuits

1
