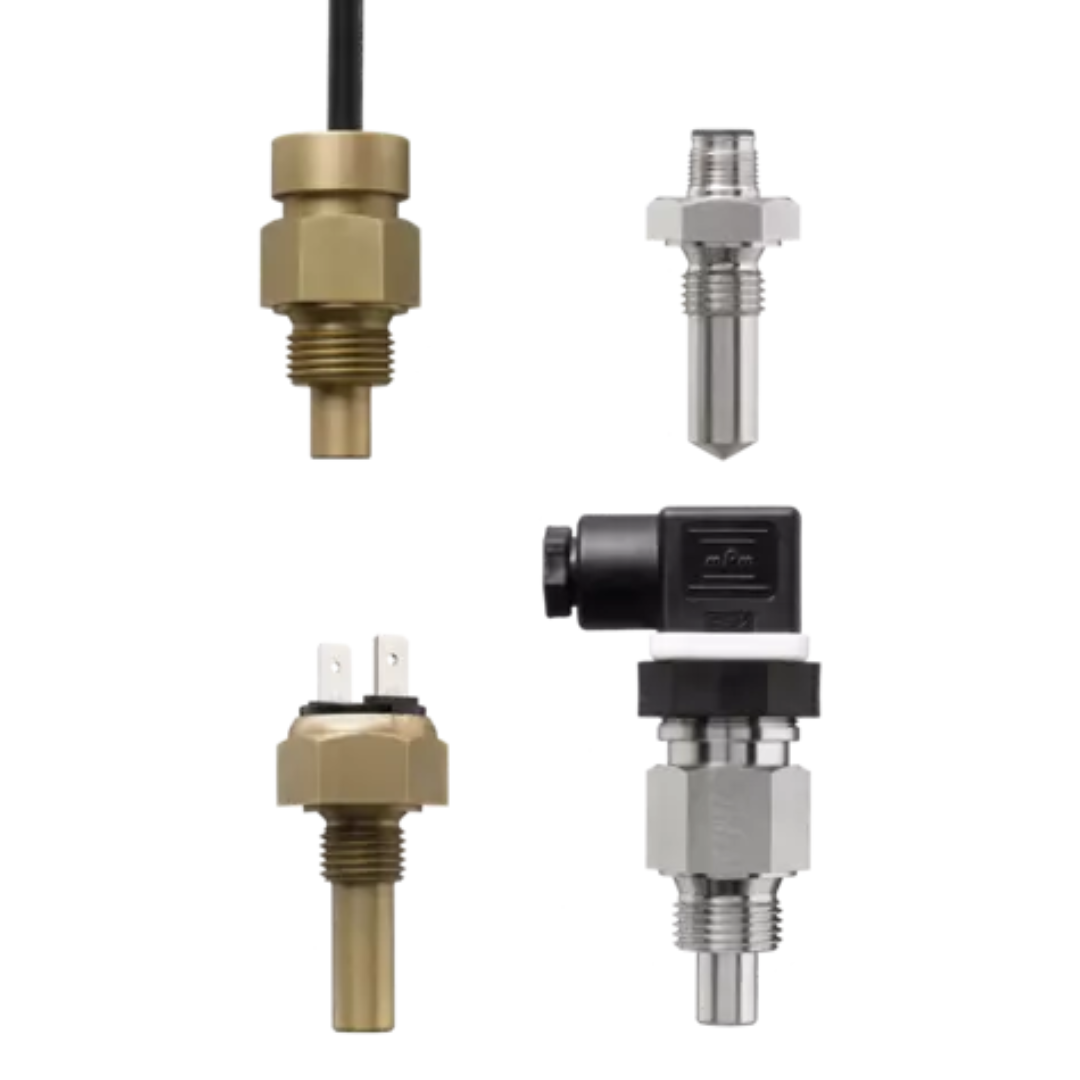

Bimetal temperature switch

The temperature change is transmitted to a bimetal kinematics via the fitting. When the switching temperature is reached, the temperature switch is activated.

Categories: Switches, Temperature

Technical data
Downloads

Technical data

general technical data
Switching elements	Snap-action switch, slow-action switch, compact temperature switch with optional Pt1000 sensor
Switching capacity	10 to 100 mA, 6 to 30 V (PLC application), 10 A, 230 V (resistive load)
Protection type	IP52, IP65 and IP67
Features	Fittings made from brass, aluminum, or stainless steel; various threads and design types possible, various electrical connections possible, optionally with Pt1000 sensor, with electrical connection 30 – easy connection option with M12 connector, protection type IP67 or IP68 possible
Areas of application	Compressor engineering, engine control, general industrial applications

general technical data

Switching elements

Snap-action switch, slow-action switch, compact temperature switch with optional Pt1000 sensor

Switching capacity

10 to 100 mA, 6 to 30 V (PLC application), 10 A, 230 V (resistive load)

Protection type

IP52, IP65 and IP67

Features

Fittings made from brass, aluminum, or stainless steel; various threads and design types possible, various electrical connections possible, optionally with Pt1000 sensor, with electrical connection 30 – easy connection option with M12 connector, protection type IP67 or IP68 possible

Areas of application

Compressor engineering, engine control, general industrial applications
