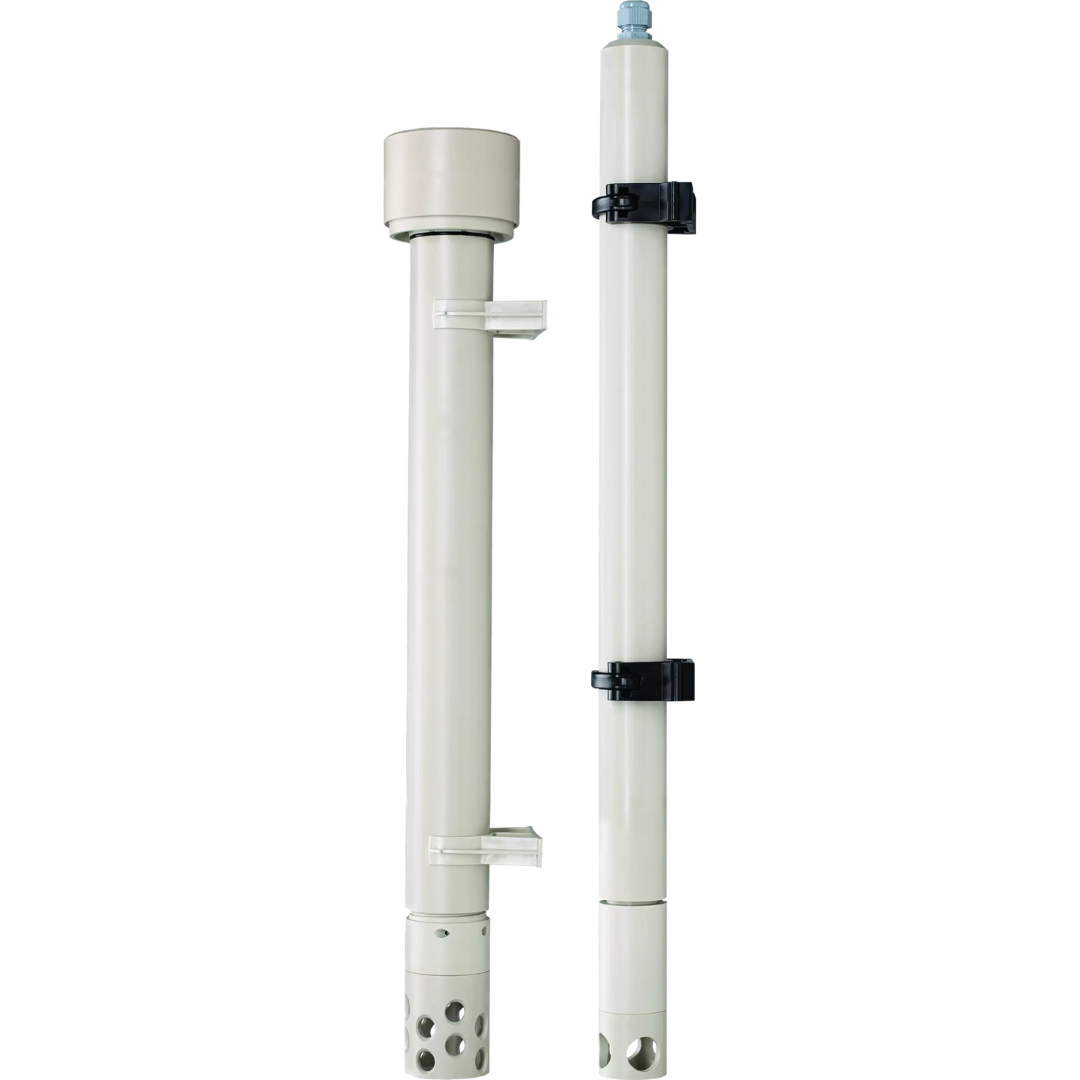

Immersion fittings
Immersion fittings are designed for mounting electrochemical sensors (e.g. pH and redox electrodes, glass conductivity cells, etc.) with a Pg 13.5 screw-in thread and a 120-mm insertion length. Fitting types for 1 to 3 sensors are available.
Technical data
| General technical data | |
|---|---|
| Process connection | Flange |
| Material | PP |
| Max. temperature | 0 to 95 °C |
| Pressure resistance | 1 bar, up to 90 °C |
| Immersion length (from process connection) | 500 to 2000 mm |
| Accessories | Cleaning nozzle and wetting cup |
| Features | Up to 3 sensors; enables you to take measurements in different immersion depths |
