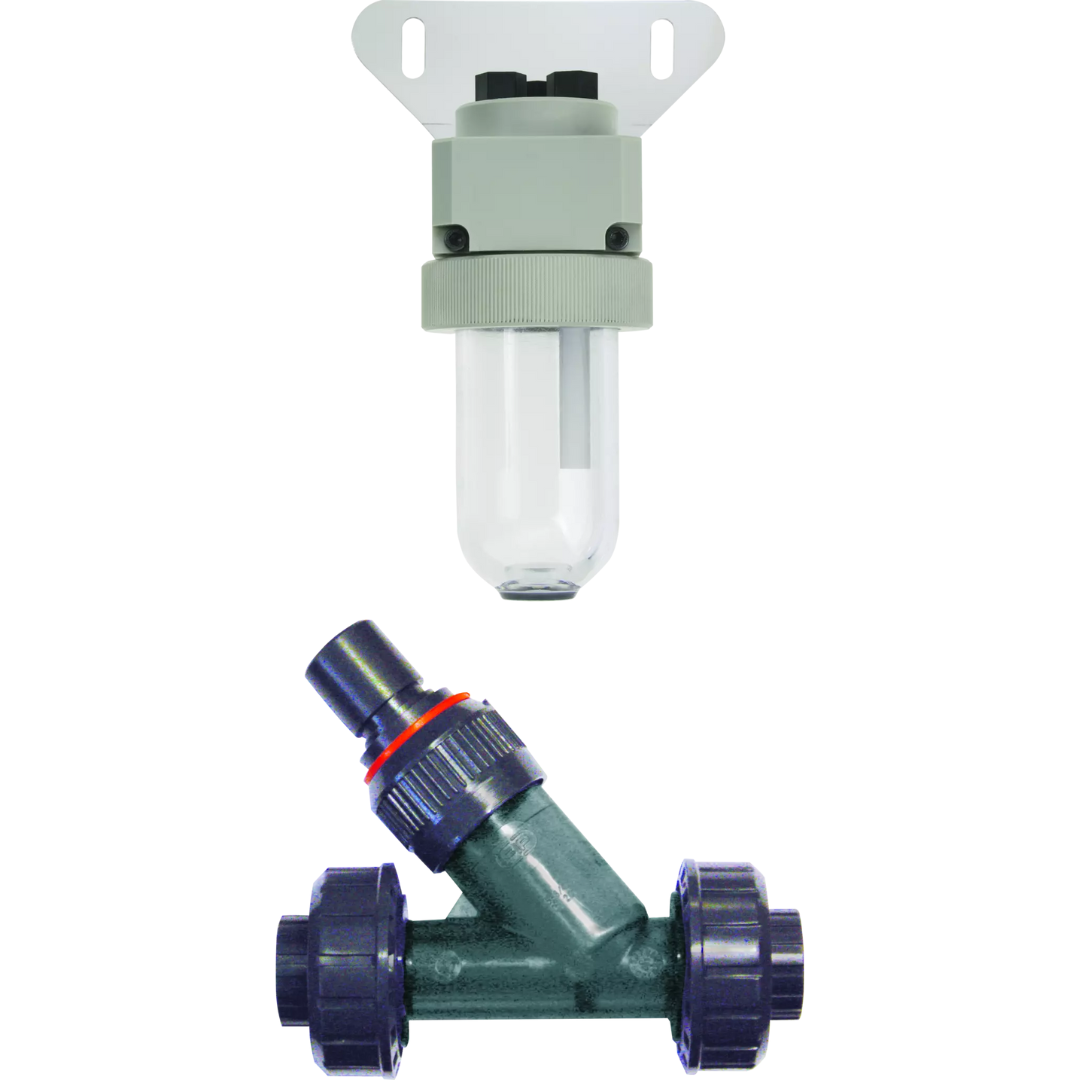

Flow fittings

Flow fittings are designed for mounting electrochemical sensors (e.g. pH and redox combination electrodes, glass conductivity cells, compensation thermometers, etc.) with a Pg 13.5 screw-in thread and a 120-mm insertion length.

Categories: Accessories, Liquid analysis

Technical data
Downloads

Technical data

General technical data
Process connection	G ½A or bonded socket joints; DN 20/25 angled seat; DN 32/40/50 T-piece
Material	PC or PP and PVC
Max. temperature	0 to 90 °C; material PVC max. 60 °C
Pressure resistance	1 bar at 90 °C, 6 bar at 25 °C
Features	Protects the electrodes against breakage; ensures the inflow to the sensor is direct, so as to avoid measurement errors; combination fitting and individual fitting for monitoring water disinfection
Areas of application	Drinking water, swimming pool water, service water

General technical data

Process connection

G ½A or bonded socket joints; DN 20/25 angled seat; DN 32/40/50 T-piece

Material

PC or PP and PVC

Max. temperature

0 to 90 °C; material PVC max. 60 °C

Pressure resistance

1 bar at 90 °C, 6 bar at 25 °C

Features

Protects the electrodes against breakage; ensures the inflow to the sensor is direct, so as to avoid measurement errors; combination fitting and individual fitting for monitoring water disinfection

Areas of application

Drinking water, swimming pool water, service water
