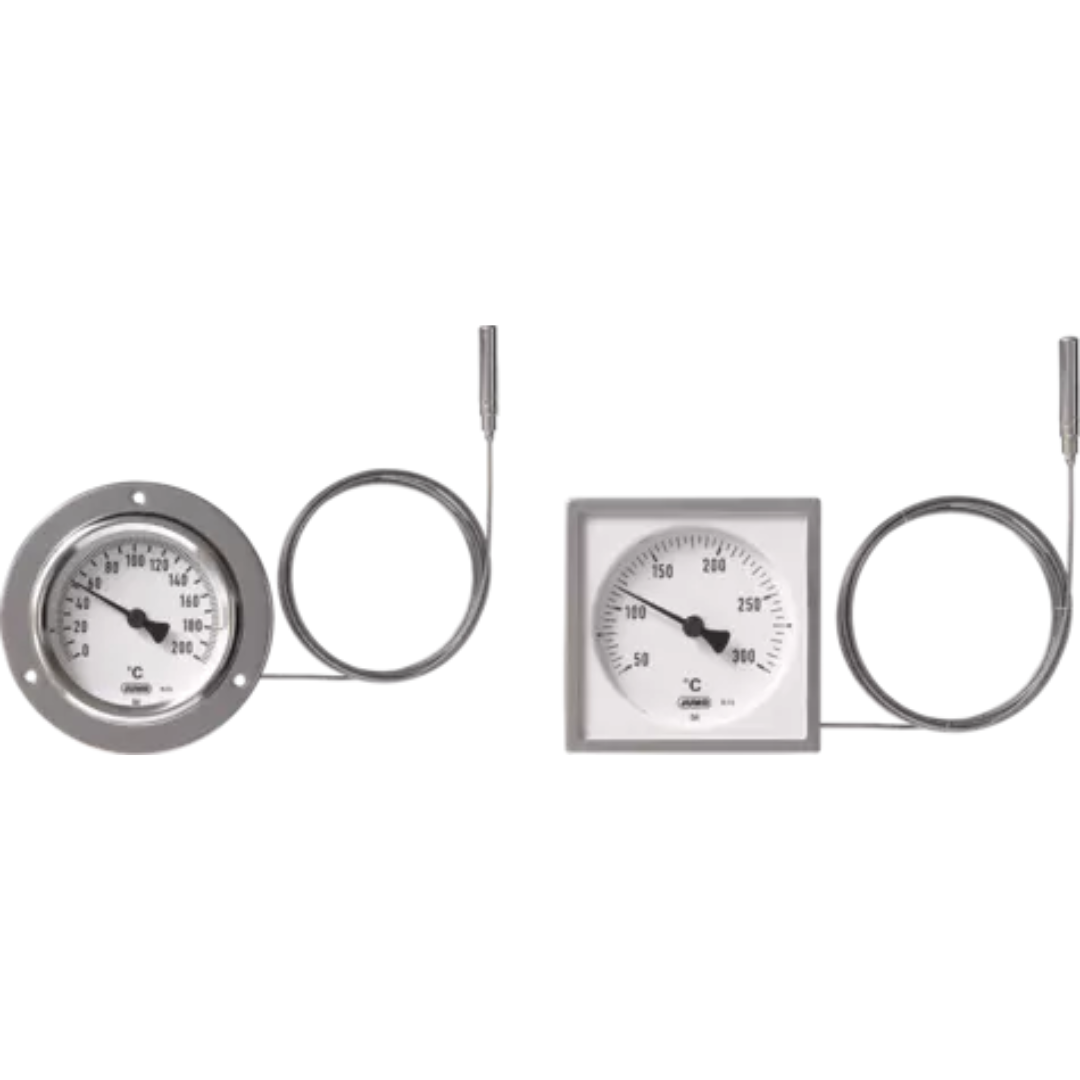

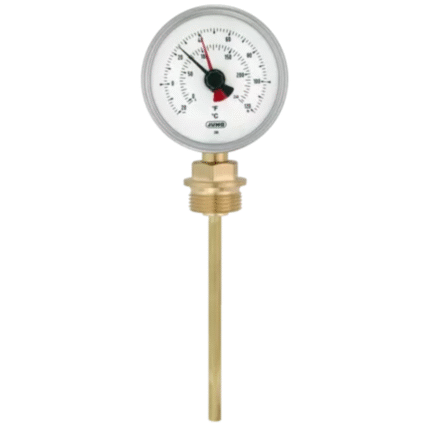

Dial thermometer
Dial thermometers are temperature indicators for universal use. The devices come in a stainless steel case with a liquid or gas-filled measuring system.
Technical data
| general technical data | |
|---|---|
| Measuring range | -30 to +500 °C |
| Display range | -40 to +600 °C |
| Features | Temperature indicator in flush-mounted or surface-mounted housing |
| Accuracy class according to DIN EN 13190 | Class 1.5 |
| Capillary/rigid thermowell | Capillary length up to 10,000 mm possible |
| Probe outlet | Vertical or horizontal |
| Case size | 60 mm, 80 mm, 100 mm |
| Areas of application | Oven engineering, compressor engineering |
