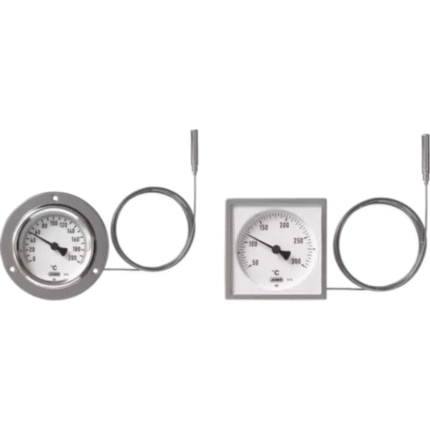

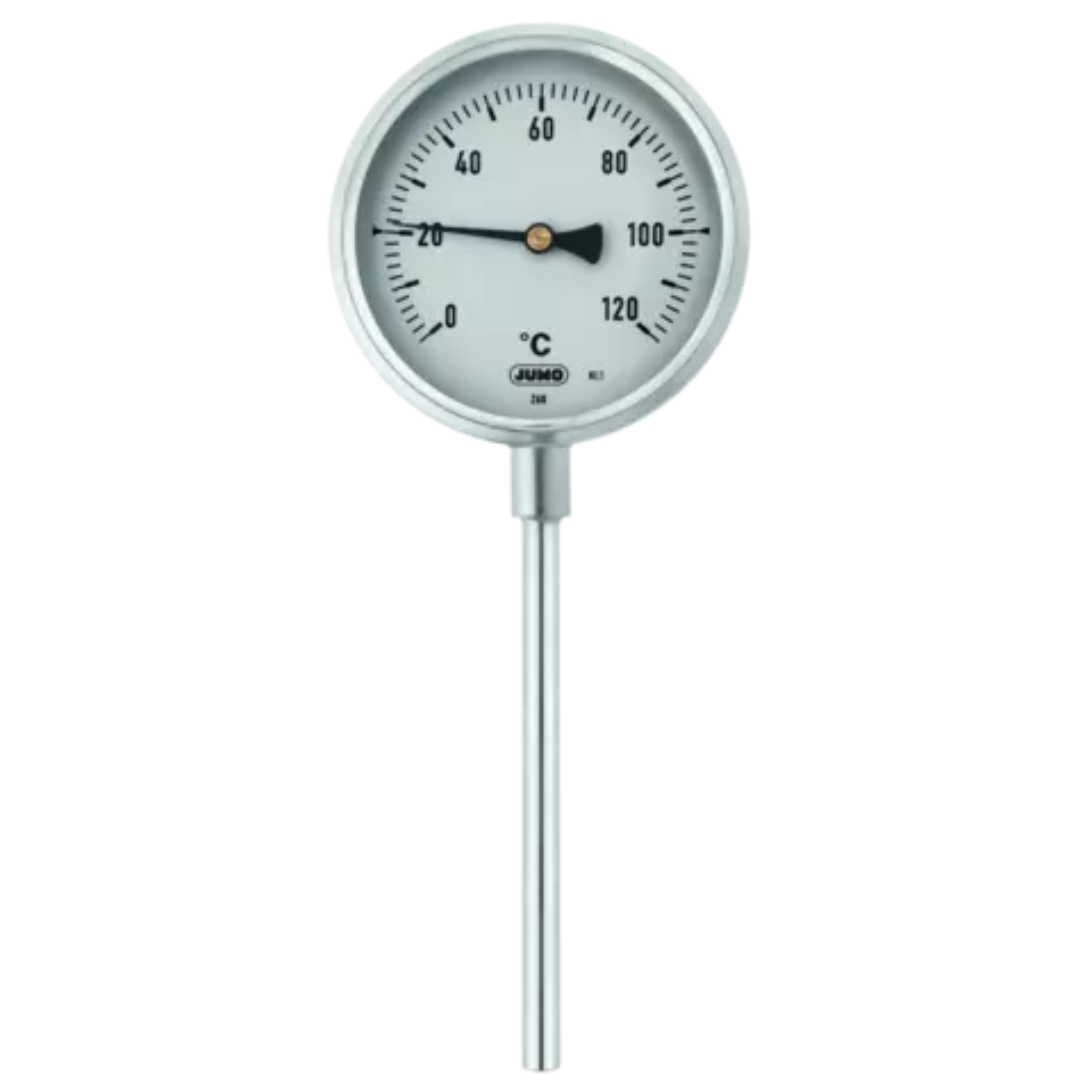

Dial thermometer
The measuring principle of the dial thermometer is based on a bimetal coil in a stainless steel or brass protection tube. If the temperature increases or falls, it turns and has a direct effect on the indicator via an axis. The indicator deflection is therefore proportional to the change of temperature.
Technical data
| general technical data | |
|---|---|
| Measuring range | -10 to +450 °C |
| Display range | -20 to +500 °C |
| Features | Housing and bezel made of zinc-plated steel sheet; bracket made of aluminum (design type 18) |
| Area of application | For local temperature measurement |
| Accuracy class according to DIN EN 13190 | Class 1.5 |
| Case size | 63 mm, 80 mm, and 100 mm |
| Capillary/rigid thermowell | Rigid thermowell |
| Probe outlet | Vertical or horizontal |
