AMF100 Series
The AMF100 Series is an insertion-type electromagnetic flowmeter ideal for conductive liquids. It comes in sizes from 150-6000 mm.
AMF100 is widely used for tap water, waste water, food & beverage, pulp & paper and many other industrial fluid.

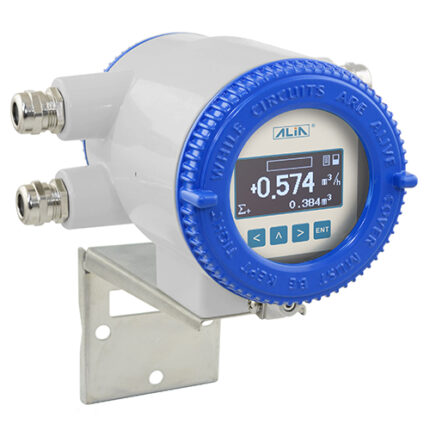

AMF100 Series electromagnetic flowmeter can be used in compact or remote type with AMC Series converter of electromagnetic flowmeter.
Features
- Light and compact version
- Measuring range up to 12 m/s
- Suitable for permanent or temporary installation
- Price is virtually independent of pipe diameter
- Hot-tap into pressurised pipe
- Good accuracy over a wide operating flow range
- With Forward / Reverse flow rate measurement function
- Stable calibration and reliable operation
Specification
| Size | : | 150, 200, 250, 300, 350, 400, 450 |
| 500, 600, 700…… 6000 mm | ||
| Measuring Range | : | Velocity 0-0.25 m/s Min. |
| 0-12 m/s Max. | ||
| Material | ||
| Protection Tube | : | Stainless Steel 316 |
| Screw | : | Stainless Steel 316 |
| Electrode | : | Stainless Steel 316L |
| Liner | : | PTFE |
| Ball Valve | : | Stainless Steel 316 (Option) |
| Hot-Tap Tool / Kit | : | Stainless Steel 304 (Option) |
| Mounting | : | Compact or remote |
| Process Connection | ||
| Threaded | : | Threaded, 2″ BSPP Female |
| Flange | : | Flange, JIS / ANSI / DIN |
| Installation | : | Direct insert to the pipe |
| : | Insert with Ball Valve | |
| : | Hot-Tap into pressurised pipe | |
| Protection Class | : | IP67 |
| : | IP68 (Submersible) | |
| Explosion Proof | : | Ex d ia [ia] q llC T6 |
| (with AMC3200 only) |
| Cable Entry | : | Standard: M20 Option: 1/2″ NPTF |
| Grounding Resistance | : | Must be less than 10 Ω |
| Accuracy | : | +/-2% of reading (Velocity≥0.5 m/s) |
| : | +/-0.8% of Full Scale (F.S.>2 m/s) | |
| : | +/-0.01 m/s (Velocity<0.5 m/s) | |
| Repeatability | : | +/-0.4% of reading |
| Process Temperature | : | -10~80 °C |
| Ambient Temperature | : | -25~70 °C |
| Max. Pressure | : | 10 kgf/cm2 |
| Conductivity | : | More than 10 μS/cm |
| Weight | : | 3-10 kg |
| Coil Resistance | : | 70-98 Ω |
| Sensor Diameter | : | 44 mm |
| Sensor Length | : | 310 mm (for 150-600 mm pipe ID) |
| 550 mm (for 600-2400 mm pipe ID) | ||
| 800 mm (for 2400-4200 mm pipe ID) | ||
| 1050 mm (for 4200-6000 mm pipe ID) |
