VEGAVIB S61
Vibrating level switch for granular bulk solids
For granulated bulk solids from density 100 g/l
Application area

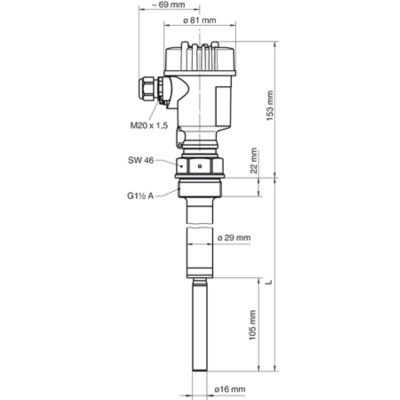

Pre-configured lengths of 150, 500, 1000 or 1500 mm available. Limited choice of electronics and approvals.
The VEGAVIB S61 is a level switch for granular and coarse-grained bulk solids. The VEGAVIB S61 detects reliably and accurately the min. or max. level. The smooth surface of the vibrating rod, without corners and edges, avoids jamming of the bulk solid and is easy to clean.
Technical specifications
Measuring range – Distance
- – [Meter – Foot]
Process temperature
- -50 … 150 °C [°C – °F]
Process pressure
- -1 … 16 bar [Bar – kPa – psi]
Version
- Standard
Materials, wetted parts
- 316L
Threaded connection
- ≥ G1, ≥ 1 NPT
Seal material
- no media contact
Housing material
- Plastic
Protection rating
- IP66/IP67
Output

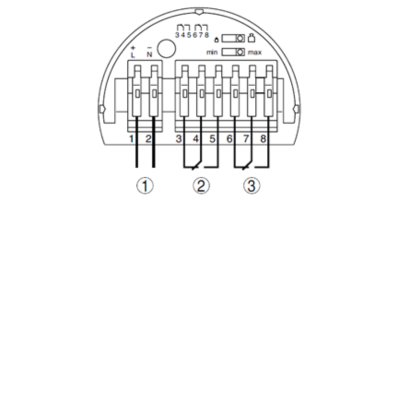

- Relay (DPDT)

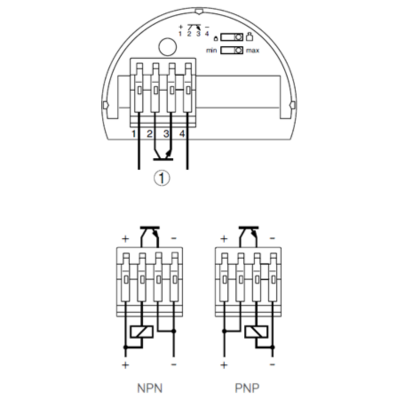

- Transistor (NPN/PNP)
Ambient temperature
- -40 … 80 °C
Approvals
Scope
- ATEX / Europe
Explosion protection
- Dust ignition protection “t”
Display & adjustment
Indication
- LED
Documentation
VEGAVIB S61, 61, 62, 63
VEGAVIB S 61
Transistor (NPN/PNP), Relay (DPDT)
