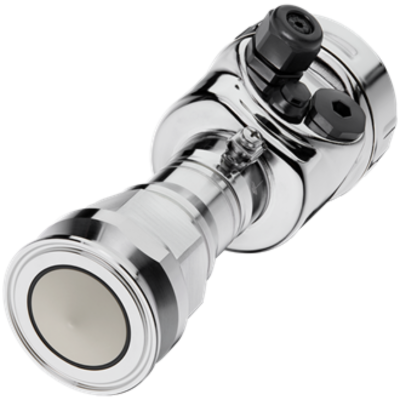

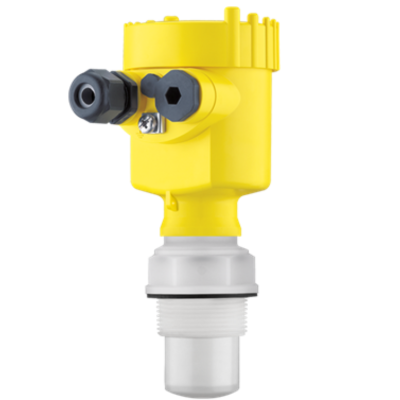

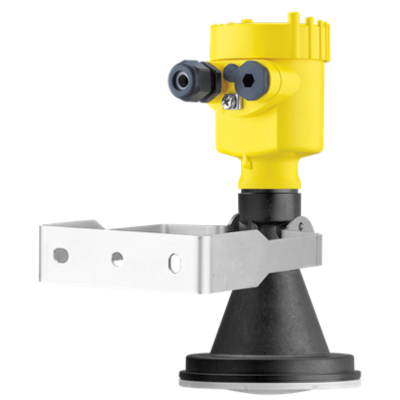

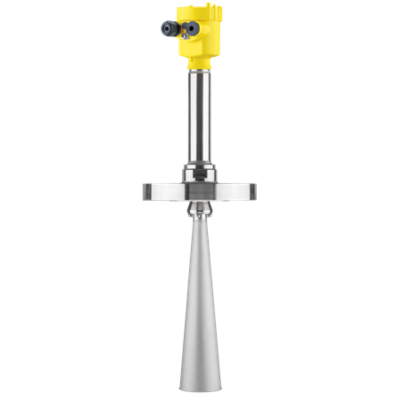

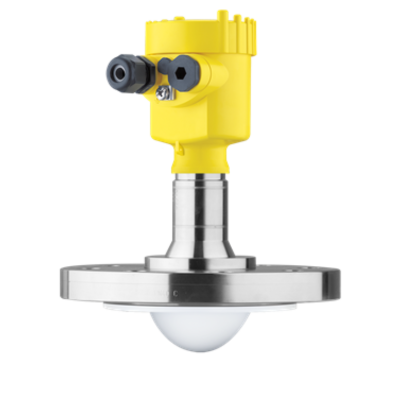

VEGAPULS 6X
Radar sensor for continuous level measurement of liquids and bulk solids
All-round radar measuring device – VEGAPULS 6X combines the best of the previous VEGAPULS 60 series.
Application area
VEGAPULS 6X is a universal sensor for continuous level measurement of liquids and bulk solids under all process conditions. Due to its application-oriented configuration and setup, VEGAPULS 6X offers a reliable and economical solution for all level applications. Due to its variable antenna systems, it ensures maintenance-free operation in all applications.
Your benefit
- Exact measuring results independent of process conditions
- Maintenance-free operation through non-contact measuring principle
- Application-oriented configuration enables a simple device selection
Technical specifications
Measuring range – Distance
- 120 m [Meter – Foot]
Process temperature
- -196 … 450 °C [°C – °F]
Process pressure
- -1 … 160 bar [Bar – kPa – psi]
Accuracy
- ± 1 mm
Frequency
- 6 GHz
- 26 GHz
- 80 GHz
Beam angle
- ≥ 3°
Materials, wetted parts
- PTFE
- PVDF
- 316L
- PP
- PEEK
Threaded connection
- ≥ G¾, ≥ ¾ NPT
Flange connection
- ≥ DN20, ≥ ¾”
Hygenic fittings
- Clamp ≥ 1½” – DIN32676, ISO2852
- Slotted nut ≥ 2″, DN50 – DIN 11851
- Varivent ≥ DN25
- hygienic fitting with tension flange DN32
- hygienic fitting F40 with compression nut
- Hygienic screw connections ≥ DN50 tube ø53 – DIN11864-1-A
- Hygienice flange connection ≥ DN50 DIN11864-2
- Hygienic clamp connection ≥ DN50 pipe Ø53 – DIN11864-3-A
- DRD connection ø 65 mm
- SMS 1145 DN51
Seal material
- EPDM
- FKM
- FFKM
- graphit and ceramic
- PTFE
Housing material
- Plastic
- Aluminium
- Stainless steel (precision casting)
- Stainless steel (electropolished)
Protection rating
- IP66/IP68 (0,2 bar)
- IP66/IP67
- IP66/IP68 (1 bar)
- IP69
Output
- Profibus PA
- Two-wire: 4 … 20 mA/HART
- Modbus
- Four-wire: 4 … 20 mA/HART
- Ethernet APL
Ambient temperature
- -40 … 80 °C
Approvals
Scope
- ATEX / Europe
- EAC (GOST) / Belarus
- EAC (GOST) / Kazakhstan
- EAC (GOST) / Russia
- IEC / worldwide
- KOSHA / Korea
- NEPSI / China
- UKR Sepro / Ukraine
- IEC / Australia
- INMETRO / Brazil
- CCOE / India
- CSA / USA and Canada
- FM / USA and Candada
- TIIS / Japan
- UKEX
Explosion protection
- Intrinsic safety “i”
- Flameproof enclosure “d”
- Dust ignition protection “t”
Foodstuffs/Pharma
- 3A
- EHEDG
- FDA
- Drinking water
- EG1935/2004
Ship approval
- ABS
- BV
- CCS
- DNV
- LR
- NK
- RINA
Overfill protection
- WHG
- VLAREM II
SIL qualification
- SIL2
Display & adjustment
Adjustment
- PLICSCOM
- PC, PACTware and DTM
- HART-Communicator
- Software (e. g. AMS™, PDM)
- Bluetooth
Indication
- Display/adjustment module PLICSCOM
- VEGADIS 81
- VEGADIS 82
