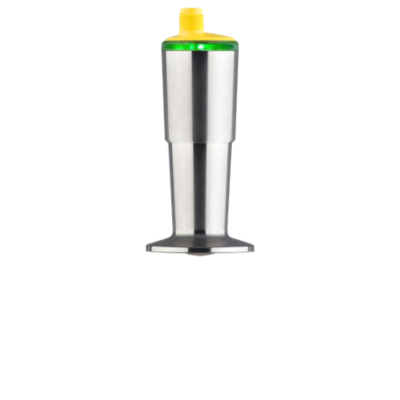

VEGAPOINT 24
Compact capacitive limit switch
For the detection of sticky and adhesive media
Application area
From DK > 1.5, from thread ½”, universal adapter G1* for hygiene adapter M12, valve plug, transistor output, IO-Link, wireless operation, Ex and hygiene approvals

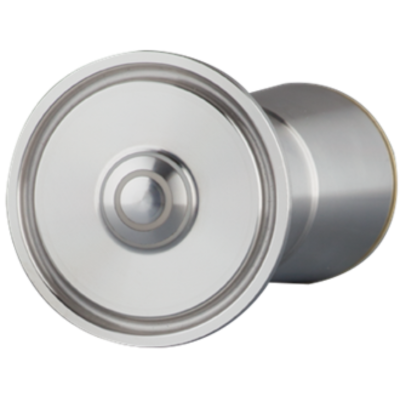

VEGAPOINT 24 is designed for level detection of very adhesive products and can reliably detect the coverage state even with the strongest buildup due to the intelligent evaluation. The absolutely front-flush design ensures cleaning without spray shadows.
Your benefit
- Coloured 360° status display, adjustable
- Easy integration into control systems through IO-Link communication
- Low-cost limit switch with smallest installation dimensions
Technical specifications
Measuring range – Distance
- – [Meter – Foot]
Process temperature
- -40 … 115 °C [°C – °F]
Process pressure
- -1 … 64 bar [Bar – kPa – psi]
Materials, wetted parts
- 316L
- PEEK
Threaded connection
- G½
Hygenic fittings
- Clamp ≥ 2″, DN50 – DIN32676, ISO2852
- Clamp ≥ 1″ – DIN32676, ISO2852
- Clamp ≥ 1½” – DIN32676, ISO2852
Protection rating
- IP66/IP67
- IP69
Output
- Transistor (NPN/PNP)
- IO-Link
Ambient temperature
- -40 … 70 °C
Approvals
Scope
- ATEX / Europe
Explosion protection
- Increased safety “e”
Foodstuffs/Pharma
- 3A
- FDA
- EG1935/2004
Display & adjustment
Adjustment
- Smartphone / Tablet / PC via Bluetooth
- PC, PACTware and DTM, IODD
Indication
- 360° status display
Documentation

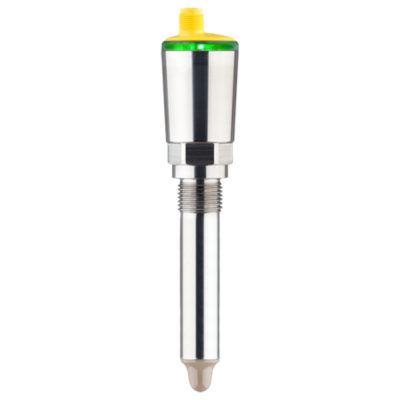

VEGAPOINT 11, 21, 23, 24, 31
VEGAPOINT 24
Transistor (NPN/PNP), IO-Link
VEGAPOINT 24
Transistor (NPN/PNP), IO-Link
VEGAPOINT 24
Transistor (NPN/PNP)
Connection cable
Welded socket, thread and hygienic adapter – Device series 10, 20, 30, 42, 50
