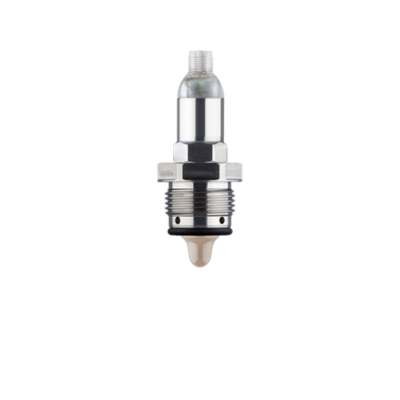

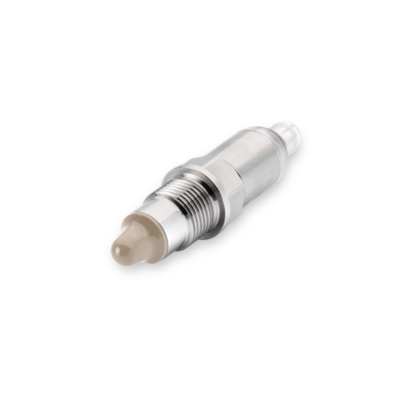

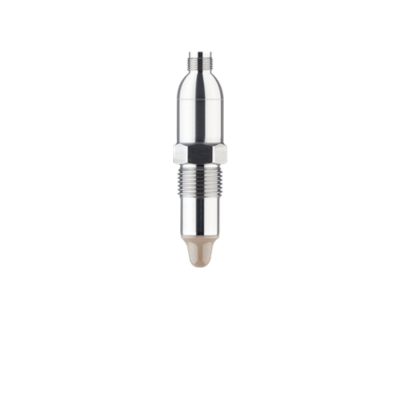

VEGAPOINT 11
Ultra-compact capacitive limit switch
For the detection of water-based liquids
Application area
From DK > 2, from thread ½”, universal connection G1″ for hygiene adapter, M12, transistor output
VEGAPOINT 11 is a low-cost limit switch for the detection of water-based liquids. The optional universal connection for hygiene adapters ensures reduced installation effort and leaner stock keeping and perfectly meets the requirements for hygienic processes in the food, beverage and pharmaceutical industries. It can be used without adjustment in the application.
Your benefit
- Simple setup, as adjustment-free
- Low-cost limit switch with smallest installation dimensions
Technical specifications
Measuring range – Distance
- – [Meter – Foot]
Process temperature
- -20 … 100 °C [°C – °F]
Process pressure
- -1 … 64 bar [Bar – kPa – psi]
Materials, wetted parts
- 316L
- PEEK
Threaded connection
- ≥ G½, ≥ ½ NPT
Seal material
- EPDM
- FKM
Protection rating
- IP66/IP67
- IP69
Output
- Transistor (PNP)
- IO-Link
Ambient temperature
- -40 … 70 °C
Approvals
Scope
- CSA / USA and Canada
Foodstuffs/Pharma
- 3A
- EHEDG
- FDA
- EG1935/2004
Display & adjustment
Indication
- LED
Documentation
Capacitive
VEGAPOINT 11, 21, 23, 24, 31
VEGAPOINT 11
Transistor (PNP)
Connection cable
Welded socket, thread and hygienic adapter – Device series 10, 20, 30, 42, 50
