VEGAWAVE S61
Vibrating level switch for granular bulk solids
For granulated bulk solids from density 100 g/l
Application area

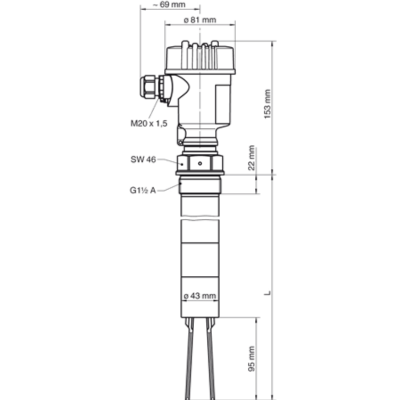

Pre-configured lengths of 165, 500, 1000 or 1500 mm available. Limited choice of electronics and approvals.
The VEGAWAVE S61 is a level switch for universal use in powders and fine-grained bulk solids. The level switch detects reliably and robust the min. or max. level. The tuning fork is ideal for use either in adhesive and abrasive products as well as in bulk solids with very low density.
Technical specifications
Measuring range – Distance
- – [Meter – Foot]
Process temperature
- -50 … 150 °C [°C – °F]
Process pressure
- -1 … 25 bar [Bar – kPa – psi]
Version
- Standard
Materials, wetted parts
- 316L
Threaded connection
- ≥ G1½, ≥ 1½ NPT
Seal material
- no media contact
Housing material
- Plastic
Protection rating
- IP66/IP67
Output

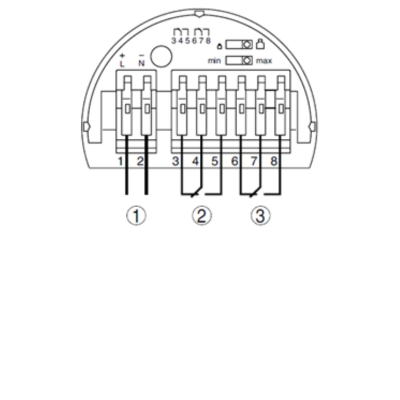

- Relay (DPDT)

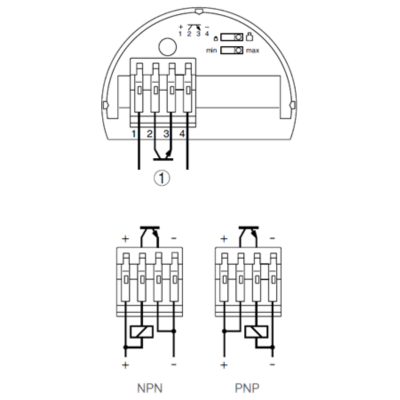

- Transistor (NPN/PNP)
Ambient temperature
- -40 … 80 °C
Approvals
Scope
- ATEX / Europe
Explosion protection
- Dust ignition protection “t”
Display & adjustment
Indication
- LED
Documentation
Vibration
VEGAWAVE S 61
Transistor (NPN/PNP), Relay (DPDT)
