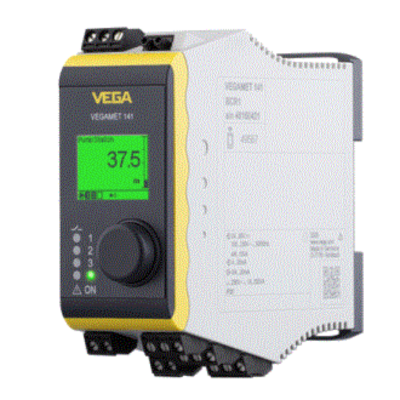

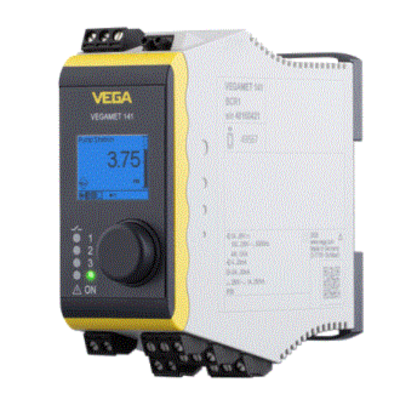

VEGAMET 141
Compact controller and display instrument for level sensors
For one 4… 20 mA sensor, carrier rail mounting
Application area
1 x 4 … 20 mA sensor input, 1 x 4 … 20 mA current output, 3 x operating relay, 1 x fail safe relay (instead of operating relay), Ex approval, separator, ship approval, on-site display, turn/push button and Smartphone operation

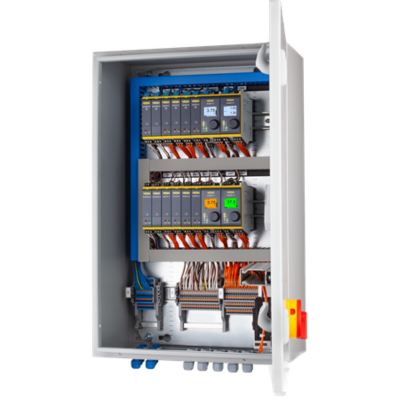

The VEGAMET 141 controller feeds the connected 4 … 20 mA sensor, processes the measured values and displays them. The compact design is ideal for mounting on carrier rails in switching cabinets. A graphic display as well as a turn/push button for quick on-site control of the measuring point is also integrated. With VEGAMET 141, limit values can be reliably monitored and relays, e.g. for overfill protection according to WHG, can be switched. It enables simple pump control, flow measurement on open flumes and weirs and summation. Due to its various possibilities it is suitable for many industrial branches as well as for plant manufacturers.
Your benefit
- Complex programming of control tasks is no longer necessary
- Simple and safe setup and diagnosis of measuring points via smartphone
- Easy control of the measuring point by graphic display, even in the dark
Technical specifications
Protection rating
- IP20, Type 1
Input
- 1 x 4 … 20 mA sensor input
Output
- 1 x 0/4 … 20 mA current output
- 3 x operating relay
- 1x failure relay (instead of operating relay)
Ambient temperature
- -20 … 60 °C
Approvals
Scope
- ATEX / Europe
- IEC / worldwide
- c-UL-us
- UKEX
Display & adjustment
Adjustment
- Smartphone / Tablet / PC via Bluetooth
- On-site operation with turn/push button
Indication
- LCD matrix display, black and white
- Backlight with colour change acc. to status
Documentation
