Main features
- Range of measurement: from 100N to 2kN
- Accuracy class: 0.5%
- Corrosion resistant
Available resources
2D/3D files
– TR.zip
Datasheet
– TR datasheet
Brochure
– Industrial strain and force sensors
– Tie bar measuring system. Press-on strain sensors
– Strain and force sensors
– Brochure Load Cells, Force Transducers
– Gefran product range brochure
Certifications
– EU Conformity declaration – TR
– UK Conformity declaration – TR
– EU Conformity declaration – TR
Technical specifications
Overview

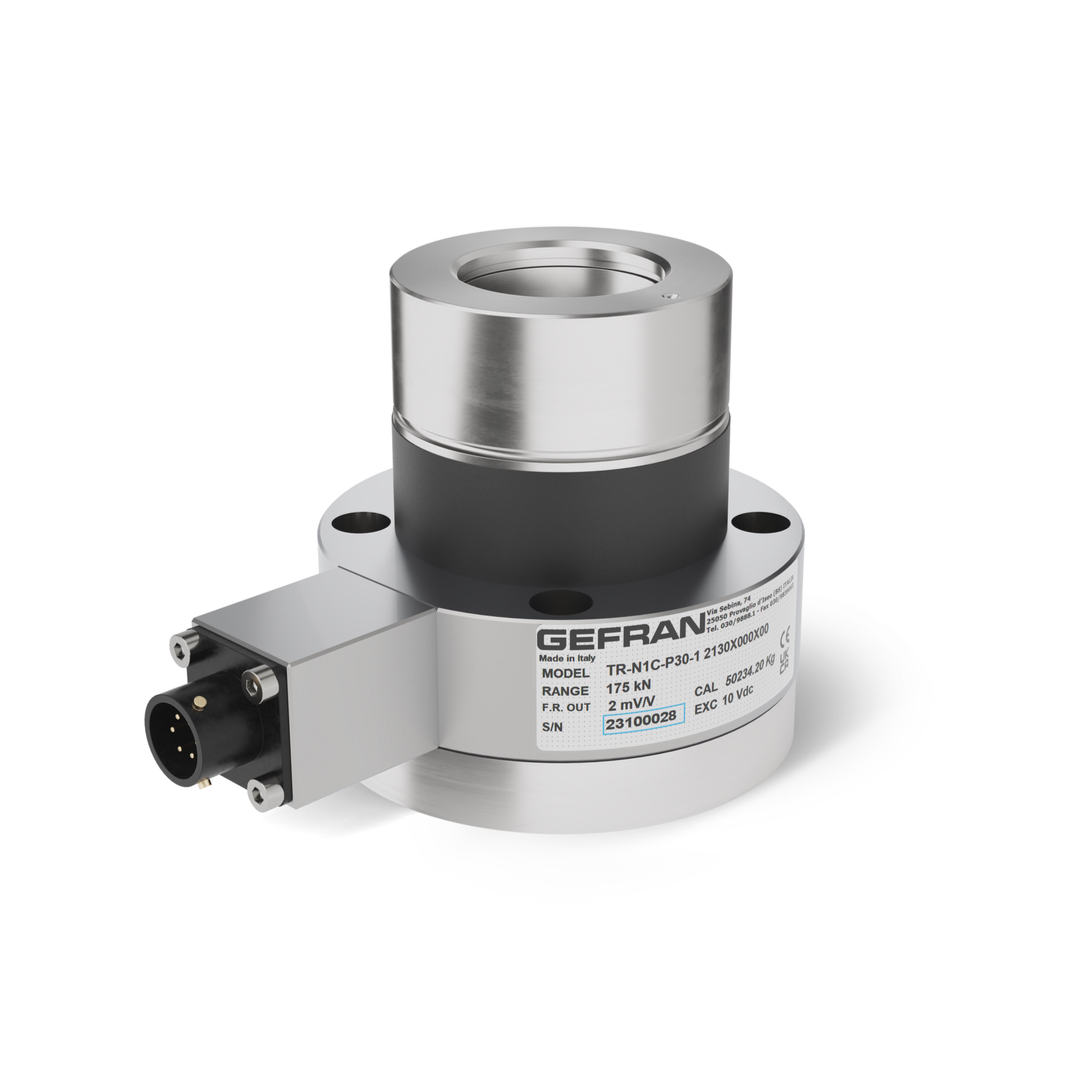

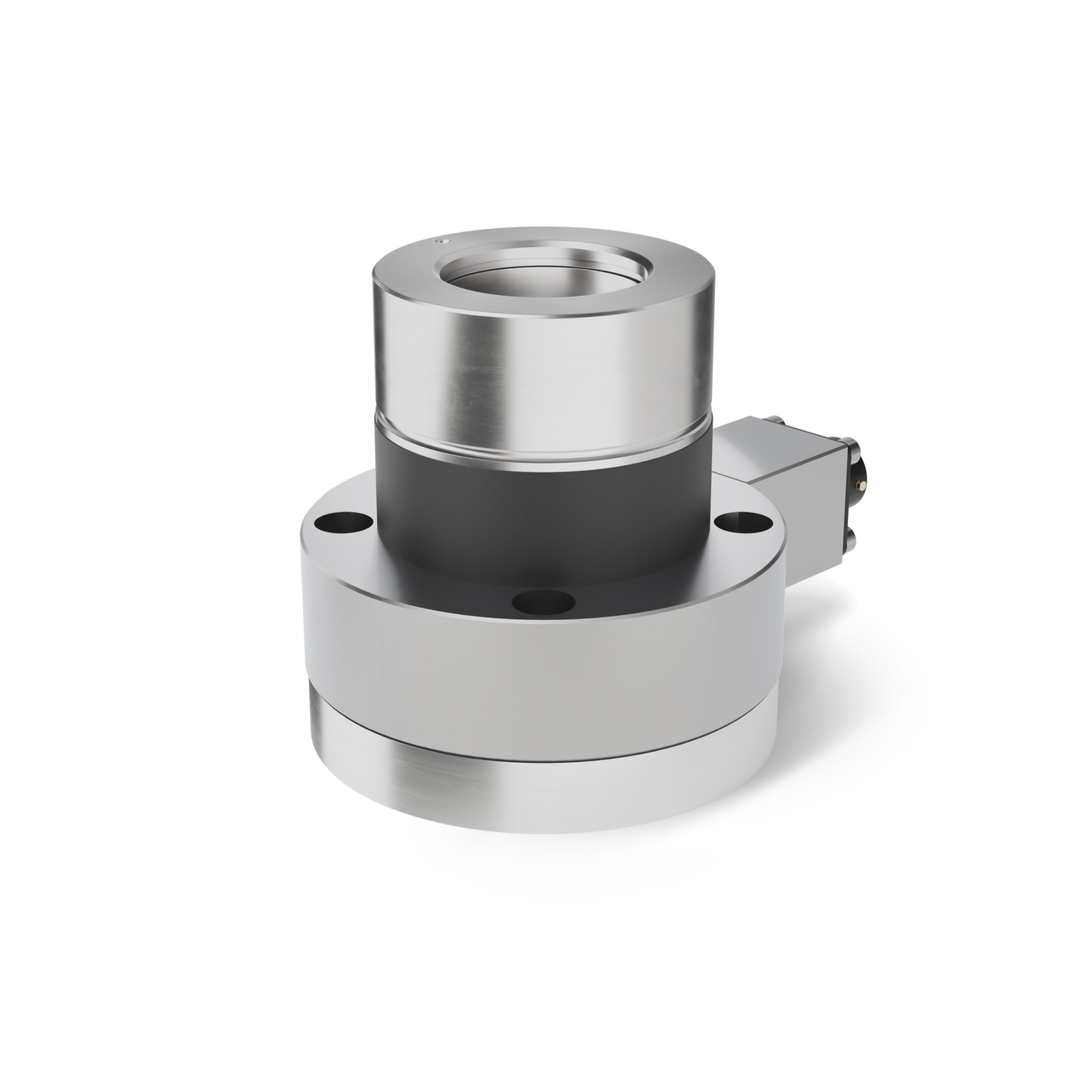

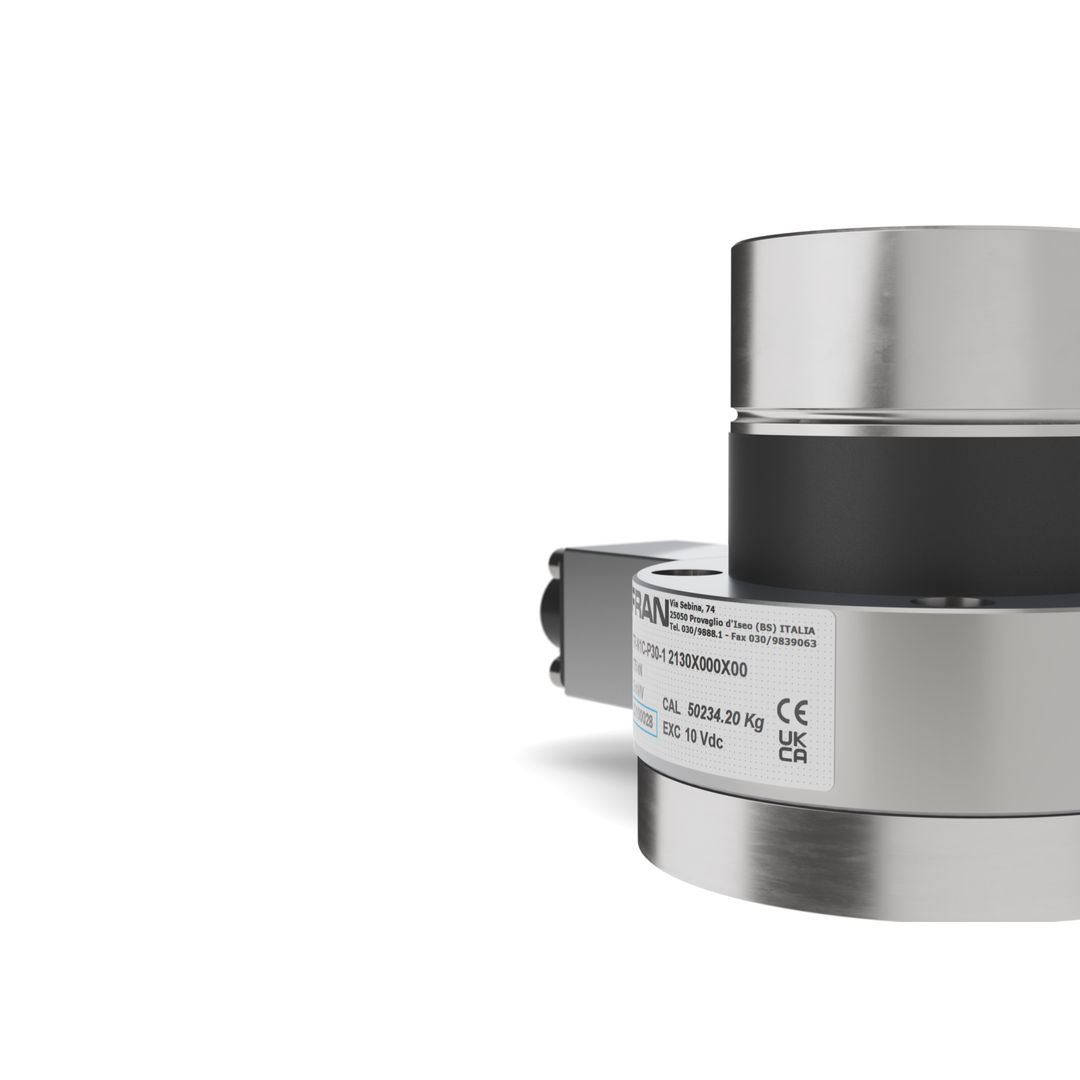

TR series force transducers are used to measure the tension that plastic films or tapes exert on the guide rollers of the machinery used to coil them.
Mounted at the ends of a fixed or transmission shaft on the machine chassis, they perform the function of force sensors and bearing for the ends of the shaft.
They are used on both fixed and rotating shafts.
TR transducers are supplied with the adaptor flange for fixing, with 4 M6 screws or with one central M10 or M12 screw.
