Main features
- Direct measurement of surface strain
- Quick and easy non-destructive assembly
- High accuracy and linearity in tension and pressure (like bonded strain gauges)
Available resources
Brochure
– Industrial strain and force sensors
– Tie bar measuring system. Press-on strain sensors
– Strain and force sensors
– Gefran product range brochure
Datasheet
– Datasheet GE1029
Catalogue
– 4.0 plastic application catalogue
User Manual
– GE1029 User Manual
Technical Articles
– Magnet Dehnungmessesensoren_Konstruktion06_14
Certifications
– EU Conformity declaration – GE1029
– UK Conformity declaration – GE1029
Technical specifications
verview

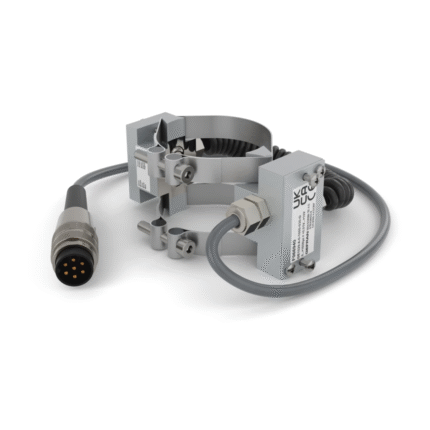

The strain gauge sensor GE1029 measure the surface-strain directly at the mounting location in the same quality as bonded strain gages.
The press-on technology, developed by Sensormate AG, presses the strain gauges under the stainless protective film so strongly against the surface to be measured that frictional contact occurs.
The sensor does not have to be recalibrated between remove and re-installation.

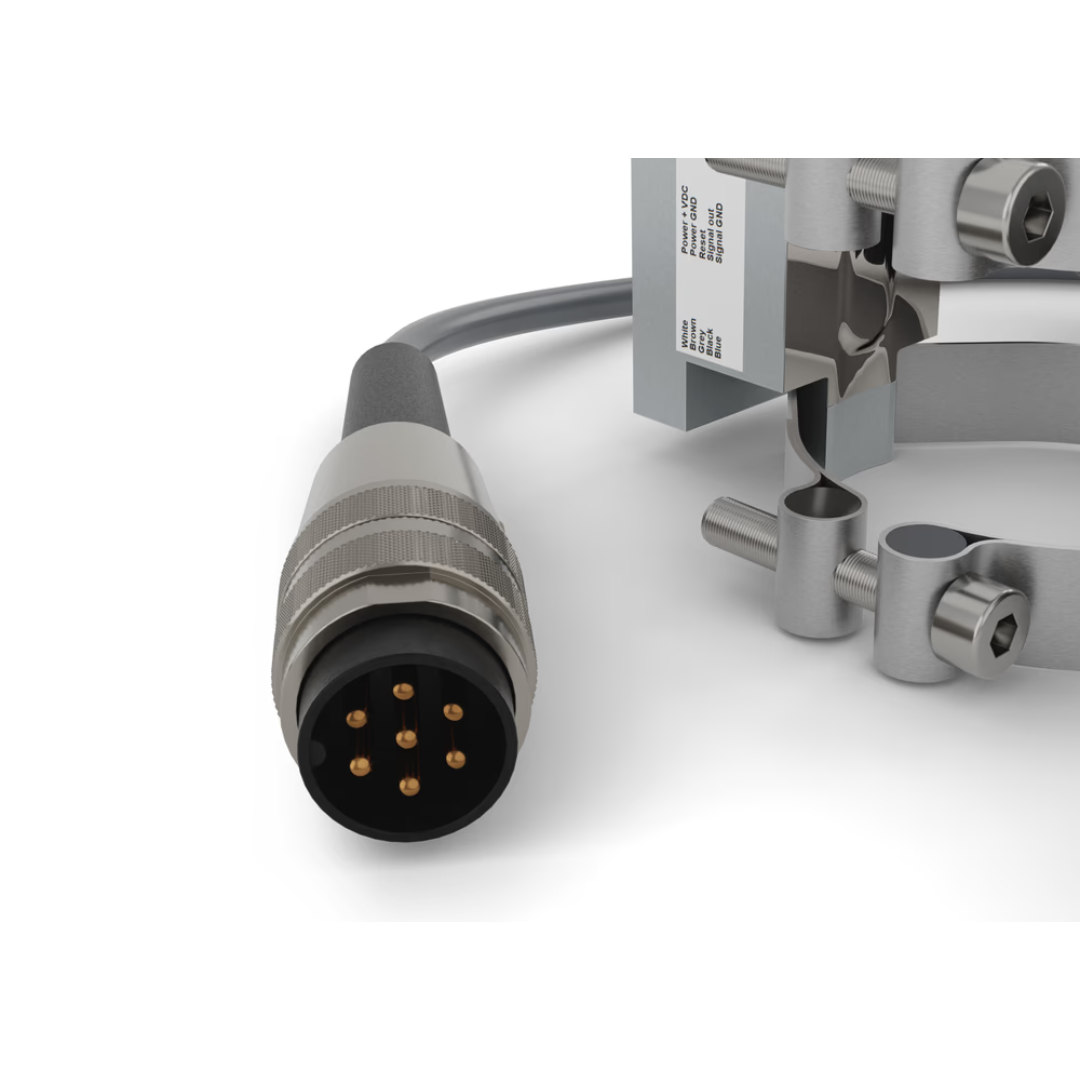

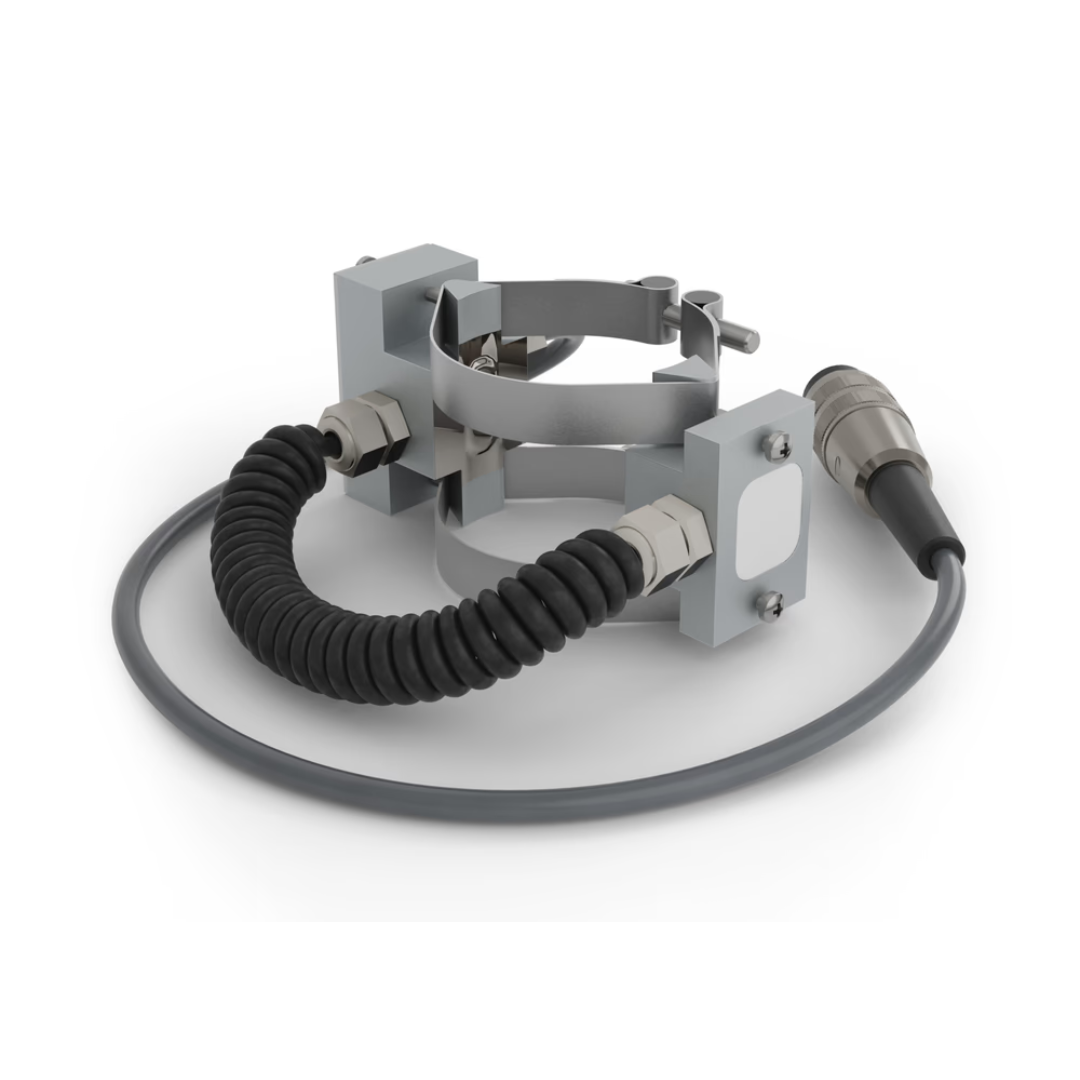

The sensor is mounted using stainless steel straps, is non-destructive, very fast and simple.
For each tie-bar diameter outside tolerance of ± 2.5mm a different pair of steel straps is required.
The sensor can not be overloaded.
The GE1029 sensors require a cyclic reset.
