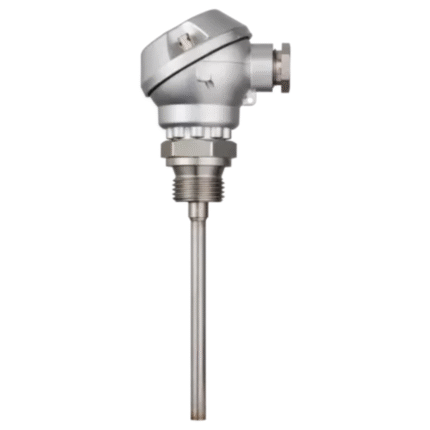

Screw-in RTD temperature probe
Screw-in RTD temperature probes are predominantly used for measuring temperatures in liquids and gases. The installation type enables the formation of reliable seals for both vacuum and overpressure applications.
Technical data
| general technical data | |
|---|---|
| Approvals | Metrological registration |
| Option | Head transmitter |
| Sensor | Pt100, Pt500, Pt1000 |
| Connection | Head |
| Protection type | IP65 |
| Areas of application | Plant engineering, construction material machines, drying plants, biogas plants, combined heat and power plants |
| Process connection | Screw connection G 1, G 1/2, G 3/4 |
| Special features | Replaceable measuring insert, extension tube |
| Measuring circuits | 1/2 |
| Operating temperature | -50 to +600 °C |
| Protection fitting | Stainless steel 1.4571 |
| Terminal head | Form B, BUZ, BUZH, BBK |
