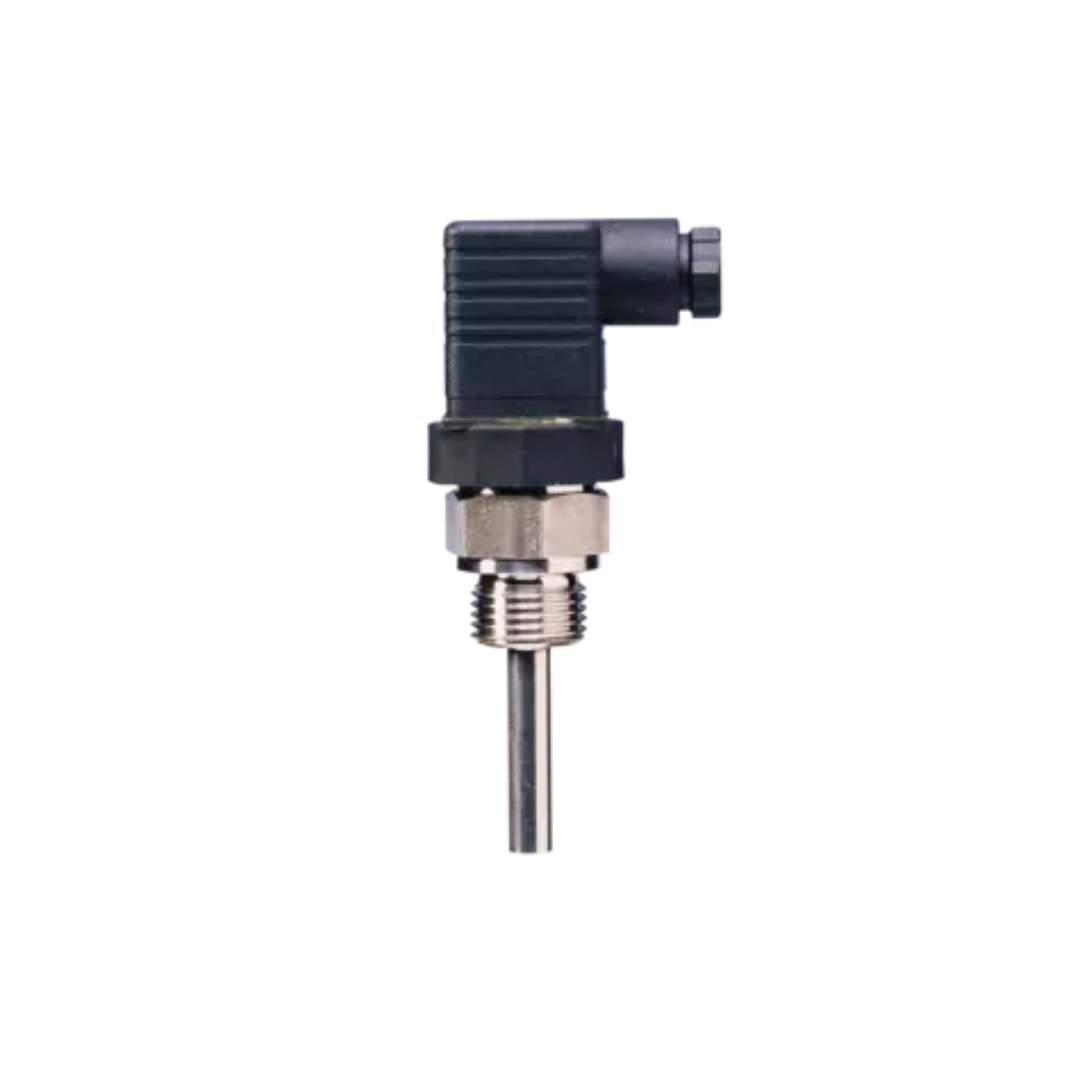

Screw-in RTD temperature probe
Vibration-resistant screw-in RTD temperature probes allow temperatures to be measured under pressure in engines and compressors as well as in plant engineering and shipbuilding.
Technical data
| general technical data | |
|---|---|
| Connection | Connector |
| Areas of application | Shipbuilding, engine manufacturing, industrial boiler plants, pump engineering |
| Operating temperature | -50 to +260 °C |
| Approvals | GL |
| Process connection | Thread |
| Protection type | IP65 |
| Protection fitting | Stainless steel 1.4571 |
| Special features | Replaceable measuring insert for variants without transmitter |
| Option | Head transmitter |
| Measuring circuits | 1 |
| Features | Highly shakeproof, plug connector according to DIN EN 175301-803 |
| Sensor | Pt100 |
