JUMO PROCESStemp

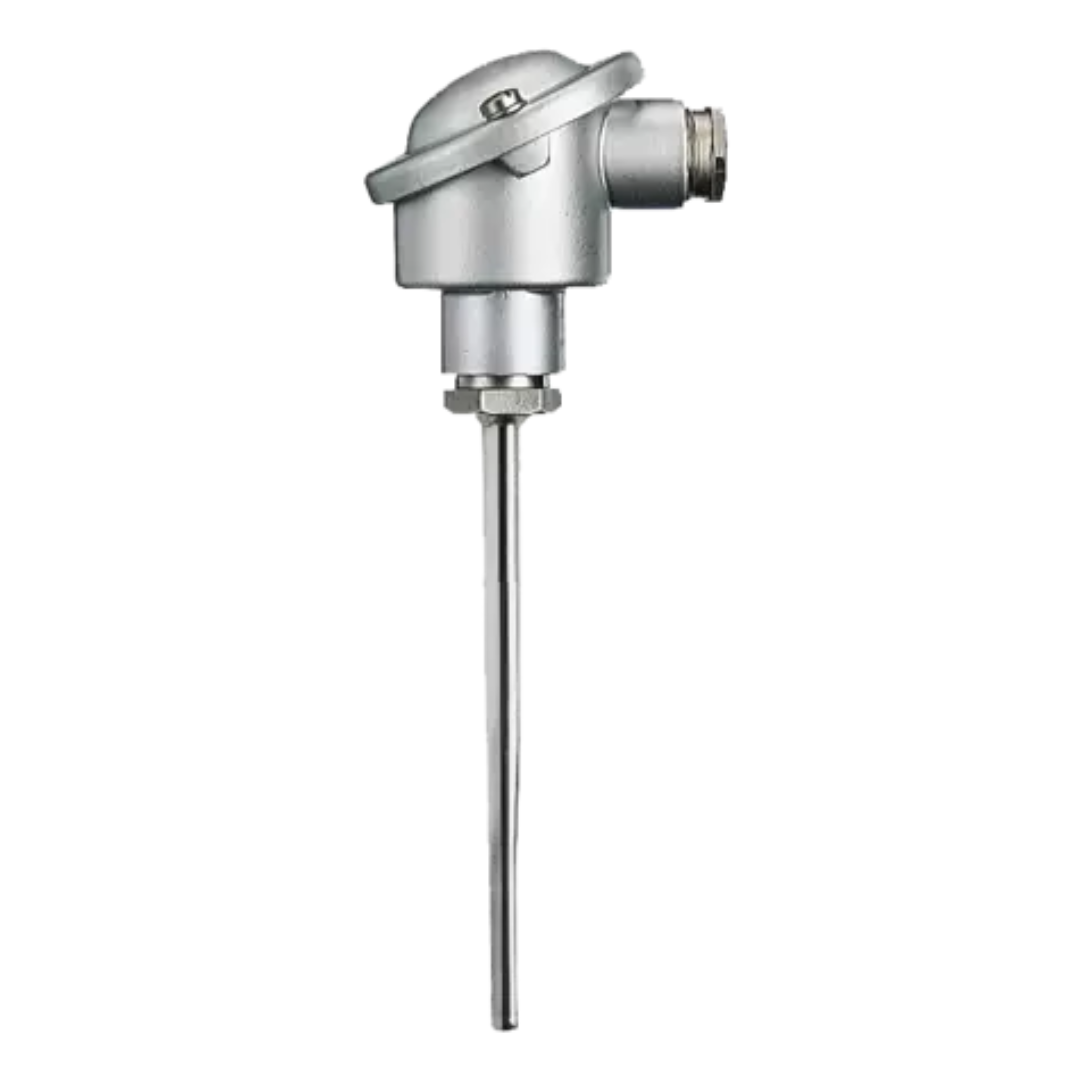

RTD temperature probes for process technology are predominantly used for temperature measurement in liquids and gases. They consist of a protection fitting according to DIN 43772 with various process connections, a terminal head, and an interchangeable measuring insert.
Technical data
| general technical data | |
|---|---|
| Areas of application | Process industry, chemical industry, plant engineering, pump engineering |
| Features | Ex and IECEX approval, protection tube made of stainless steel, titanium, tantalum, Inconel®, HASTELLOY® |
| Connection | Head |
| Measuring circuits | 1/2 |
| Approvals | ATEX, IECEx |
| Operating temperature | -200 to +600 °C |
| Protection type | IP65 |
| Protection fitting | Protection tube made of stainless steel 1.4571, titanium, Inconel®, HASTELLOY®; with PTFE or Halar® coating |
| Process connection | Screw connection/thread G 1/2, G 1, NPT, others upon request |
| Option | Head transmitter |
| Special features | Interchangeable measuring insert, [Ex i], [Ex d] |
| Sensor | Single or double Pt100, Pt500, Pt1000 |
