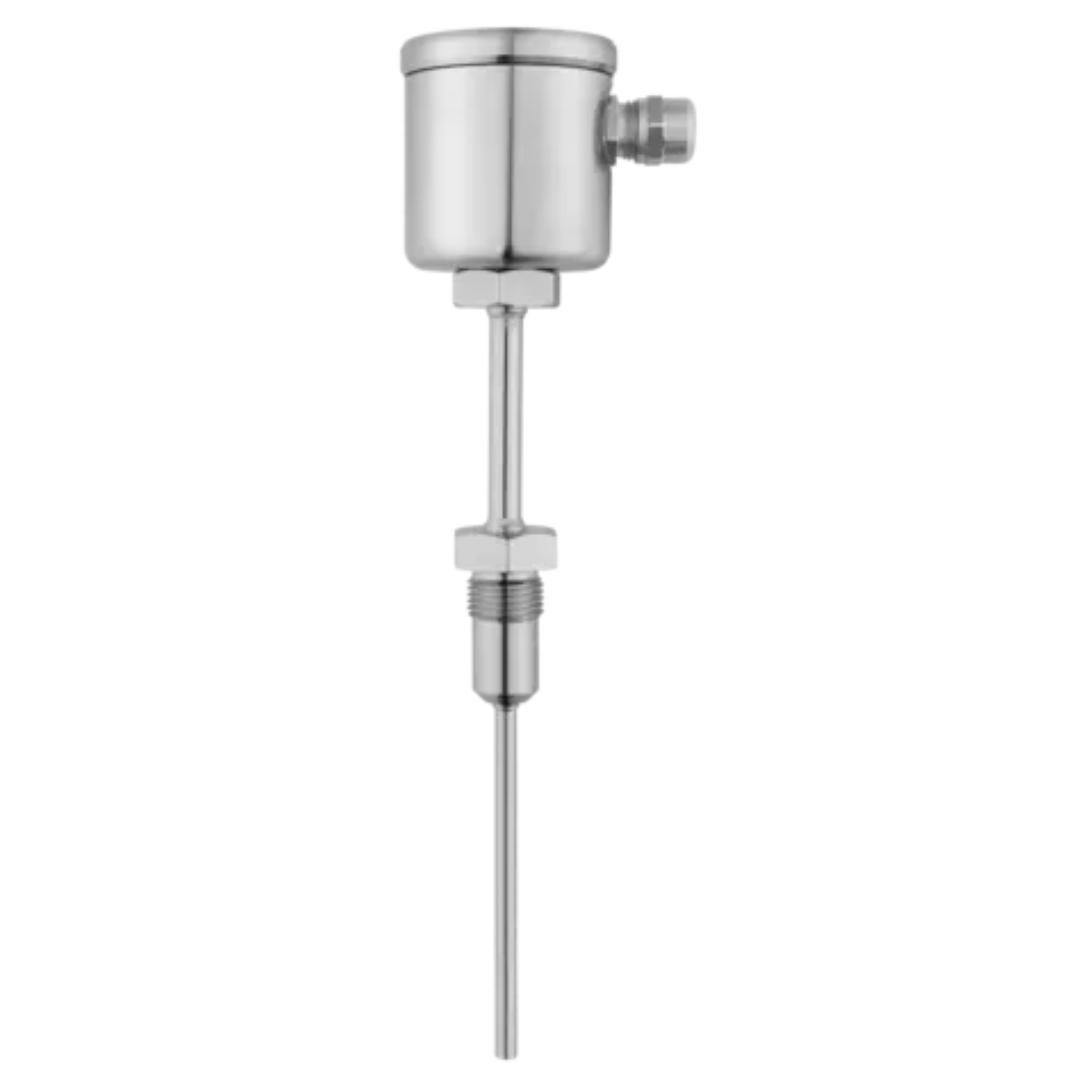

RTD temperature probe

The RTD temperature probes can be built with terminal heads made of either stainless steel, aluminum die-cast, or plastic. Various process connections are available for the different requirements of sub-areas in the food and pharmaceutical industry.

Categories: RTD temperature probes, Temperature

Technical data
Downloads

Technical data

general technical data
Operating temperature	-50 to +250 °C
Approvals	SIL and PL compatible
Protection fitting	Stainless steel 316L
Measuring circuits	1/2
Sensor	Pt100
Process connection	Thread, hygienic connections, screw connections, JUMO PEKA, CIP-compliant process connections, including electropolished Ra< 0.8 µm, hygienic thermowells
Terminal head	Form B, BUZ, BUZH, stainless steel terminal head
Option	Head transmitter
Declaration of conformity	EC 1935/2004 material confirmation
Output	Pt100 passive; 1 × analog output 0(4) to 20 mA, 0 to 10 V; 1 × programmable transmitter output 4 to 20 mA
Protection type	IP67/IP69K
Accuracy	Tolerance class: class A (class AA as optional extra)
Areas of application	Food and pharmaceutical applications, CIP and SIP plants, mechanical and plant engineering, refrigeration and air-conditioning engineering

general technical data

Operating temperature

-50 to +250 °C

Approvals

SIL and PL compatible

Protection fitting

Stainless steel 316L

Measuring circuits

1/2

Sensor

Pt100

Process connection

Thread, hygienic connections, screw connections, JUMO PEKA, CIP-compliant process connections, including electropolished Ra< 0.8 µm, hygienic thermowells

Terminal head

Form B, BUZ, BUZH, stainless steel terminal head

Option

Head transmitter

Declaration of conformity

EC 1935/2004 material confirmation

Output

Pt100 passive; 1 × analog output 0(4) to 20 mA, 0 to 10 V; 1 × programmable transmitter output 4 to 20 mA

Protection type

IP67/IP69K

Accuracy

Tolerance class: class A (class AA as optional extra)
