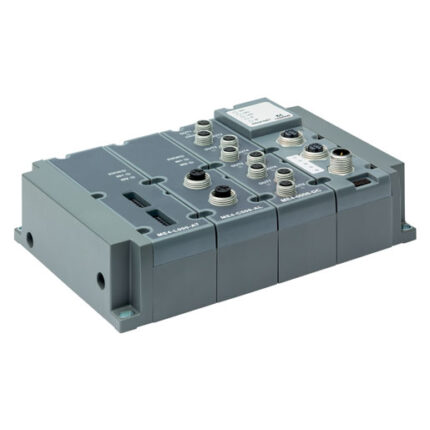

Multi-serial module Series CX
Interface with: PROFIBUS, CANopen, DeviceNet, EtherNet/IP, PROFINET, EtherCAT
Compatible with all Camozzi valve islands
Compatible with all Camozzi valve islands
The Series CX serial module, with IP65 protection class, interface with all major serial communication protocols as well as the new generation EtherCAT, EtherNet/IP and PROFINET protocols. The highly resistant aluminium structure makes it suitable for mountings even in hard application conditions.
This serial module can be coupled with electric input and output modules and is able to handle up to a maximum of 1024 I/O. Its interface modules enable direct connection to Series F, HN and 3 valve islands. Through a subnet the connection system can be extended to remote valve islands.
Manuals, instruction sheets and configuration files can be found on shop.camozzi.com or on the QR code on the lable of the product.
General Data
| Number of digital outputs | 1024 |
| Number of digital inputs | 1024 |
| Max. input absorption | 1,5 A |
| Max. output absorption | 3 A |
| Logic supply voltage * | 24 V DC +/-10% |
| Power supply voltage * | 24 V DC +/-10% |
| Protection | Overload and reverse polarity |
| Protection class | IP65 |
| Conform with standards | EN-61326-1 EN-61010-1 |
| Operating temperature | 0 ÷ 50°C |
| Material | Aluminium |
Coding Example
| CX | 05 | – | 2AC | – | QT2S |
| CX | SERIES |
| 05 | PROTOCOL 01 = PROFIBUS 02 = DeviceNet 03 = CANopen 04 = EtherNet/IP 05 = EtherCAT 06 = PROFINET 99 = Expansion Module |
| 2AC | INPUTS 0 = No module A = 8 digital inputs M8 B = 4 digital inputs M8 C = 2 IN 4-20 mA D = 2 IN 0-10 V E = 1 IN 4-20 mA + 1 IN 0-10 V |
| QT2S | OUTPUTS 0 = No module Q = 4 M12 duo digital outputs R = 2 OUT 4-20 mA T = 2 OUT 0-10 V U = 1 OUT 4-20 mA + 1 OUT 0-10 V V = 1 OUT 4-20 mA + 1 IN 0-10 V Z = 1 OUT 4-20 mA + 1 IN 4-20 mA K = 1 OUT 0-10 V + 1 IN 0-10 V Y = 1 OUT 0-10 V + 1 IN 4-20 mA S = Initial subnet module |
