Manually operated console minivalves Series 2
3/2 NC, NO
Ports M5, cartridge Ø4
Ports M5, cartridge Ø4
This series of miniature valves has been especially designed to satisfy all the application requirements of the controls industry with particular attention paid to the operating characteristics required from these components:
- Short operational stroke;
- Small dimensions.
General Data
| Construction | Poppet-type (closed centres) |
| Valve group | 3/2 NC, NO 5/2 and 5/3 CO |
| Materials | Aluminium body, brass plunger, NBR seals |
| Mounting | Panel |
| Ports | M5 or cartridge dia. 4 |
| Environmental temperature | 0°C ÷ 60°C |
| Medium temperature | 0°C ÷ 50°C |
| Operating pressure | See models |
Coding Example
| 2 | 3 | 4 | – | 97 | 5 |
| 2 | SERIES |
| 3 | FUNCTION 3 = 3/2-way NC 4 = 3/2-way NO 8 = 5/3-way CO (function realized with 2x 3/2-way NC valves) |
| 4 | PORTS 4 = Cartridge Ø4 5 = M5 |

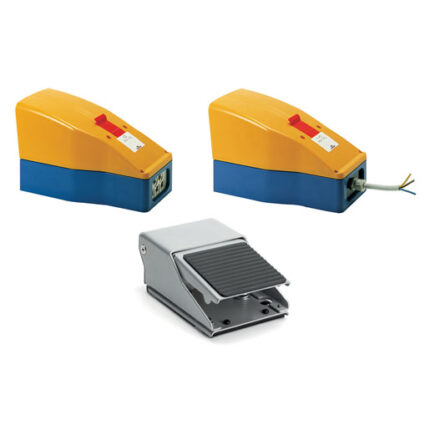

| 97 | MODE OF OPERATION 87 = 3 position selector 89 = Push button 97 = Palm switch 90 = Joystick 99 = 2 position selector 92 = Pedal 904 = Key |
| 5 | RESETTING 5 = Spring return 0 = Stable 2 = Latching-twist to release 54= Joystick |
