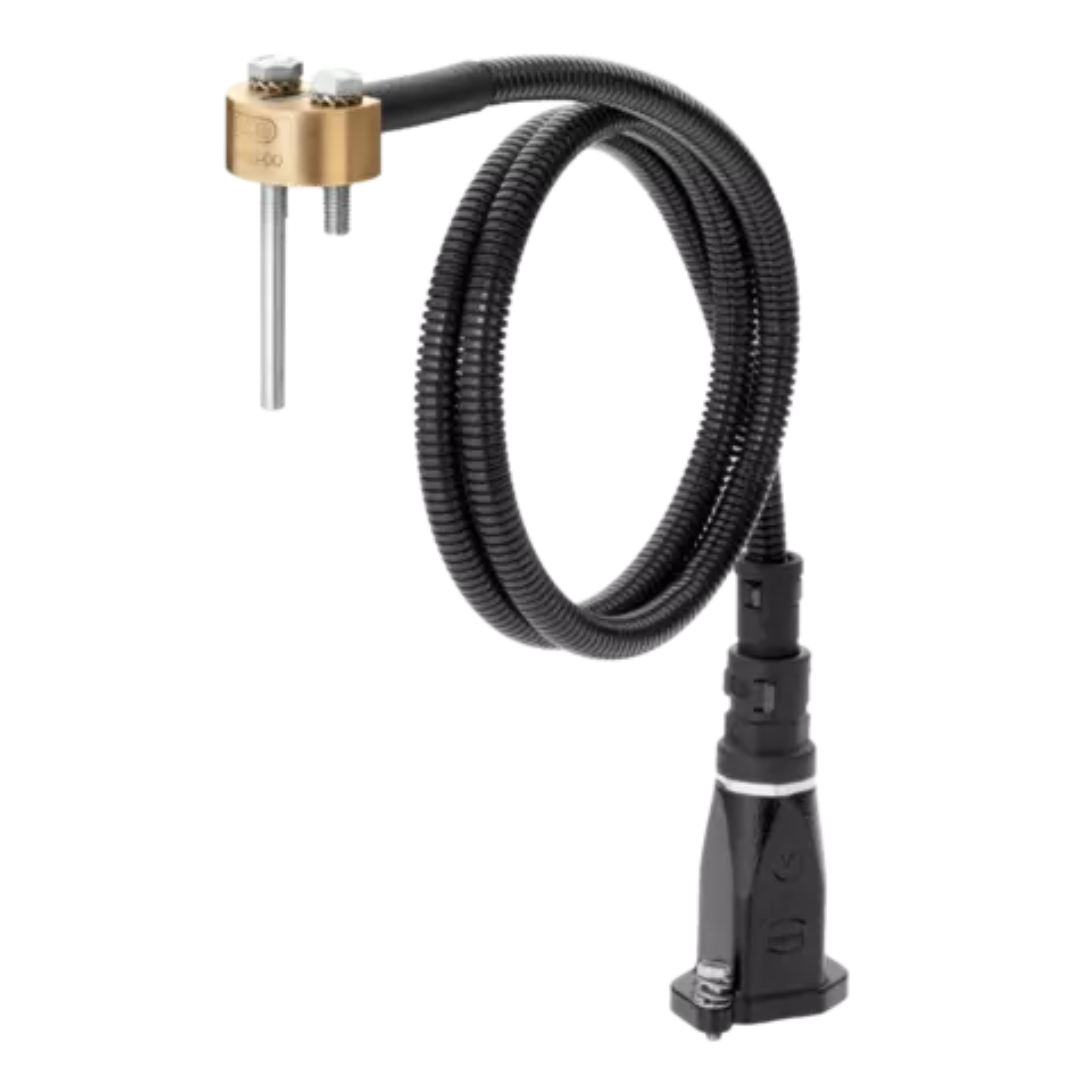

JUMO railTEMP
JUMO railTEMP has a qualified measuring insert especially developed for railway applications with up to 2 sensing elements and can be equipped with different sensors. The firmly attached connection line is available with a variety of different connections or high-quality connectors. Halogen-free materials and cable protection ensure maximum safety in rail transport as well as reliable measurement results.
Technical data
| general technical data | |
|---|---|
| Areas of application | Railway technology, rail-based vehicles |
| Approvals | DIN EN 50155, DIN EN 61373, EN 45545 |
| Special features | Shielded line, cable protection, multiple connectors available |
| Operating temperature | -50 to +200 °C |
| Sensor | Pt100, Pt1000, NTC 5kΩ |
| Measuring circuits | 1/2 |
| Protection fitting | Stainless steel/CuZn |
| Connection line | Halogen-free connection line |
| Protection type | IP68, IP69 |
