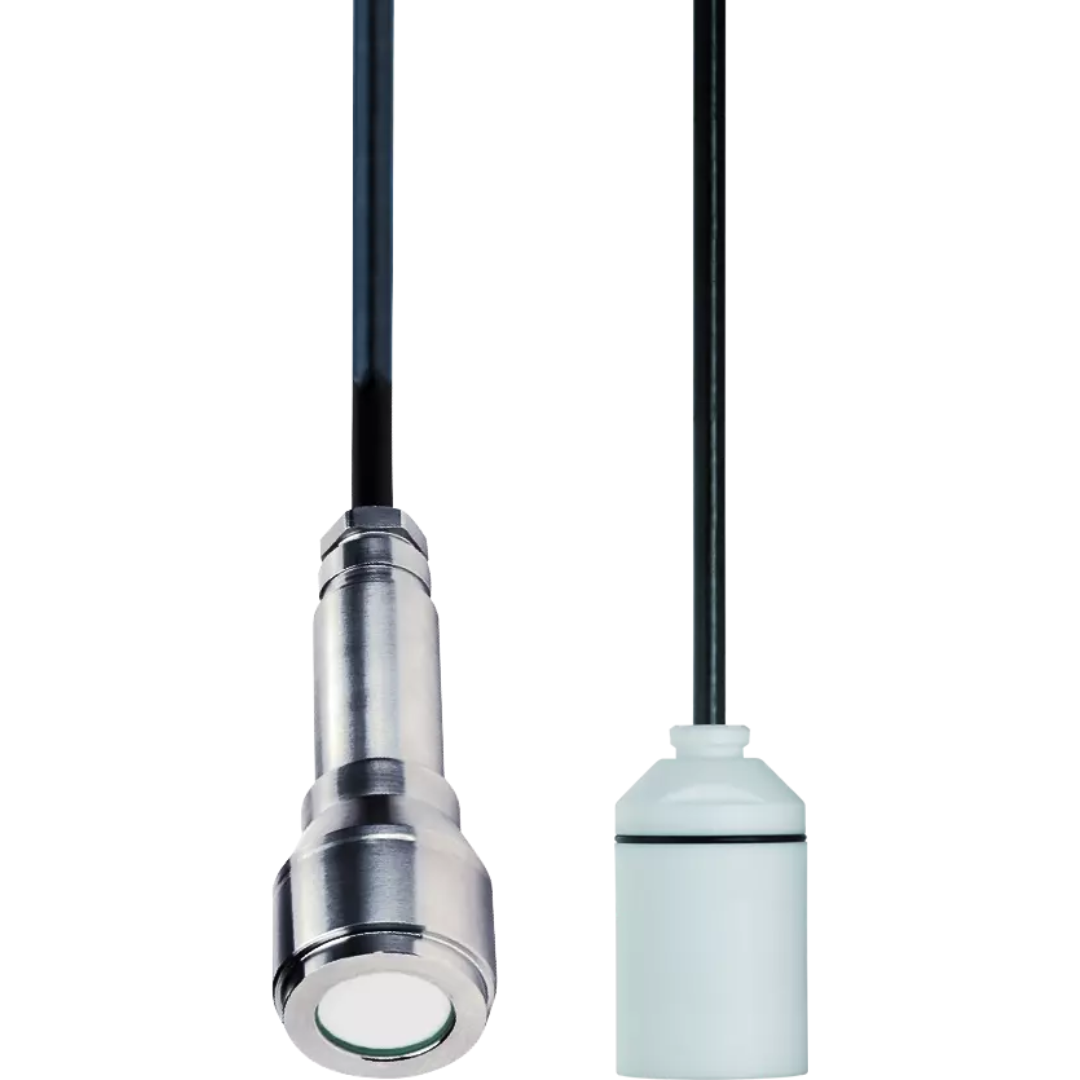

JUMO MAERA F27

The level probe measures the level of liquids continuously and hydrostatically. In ventilated tanks, filling heights from 0.5 to 16 mH2O can be achieved. The level probe is used, among other places, in water and wastewater management, electroplating baths, and in containers with aggressive media such as acids and lyes.

Categories: Level, Level probes

Technical data
Downloads

Technical data

General technical data
Measuring range	50 mbar to 1.6 bar (0.5 bis 16 mH2O)
Medium temperature	-20 to +60 °C
Accuracy (linearity)	±0.2 %
Output signal	4 to 20 mA, two-wire; 0.5 to 4.5 V three-wire
Housing material	Stainless steel or PTFE
Cable material	PE, FEP, PUR
Additional equipment	Temperature sensor (stainless steel version), overvoltage protection (stainless steel version), reverse polarity protection
Protection type	IP68
Approval	Drinking water approval (ACS, PZH); metrological certificate; EAC
Declaration of manufacturer	CE
Application areas	Outdoor or indoor mounting, diesel, heating oil, rainwater, car washes, wastewater, seawater, caustic soda (20 %, 20 °C), sulphuric acid (50 %, 20 °C)
