JUMO LOGOSCREEN 600

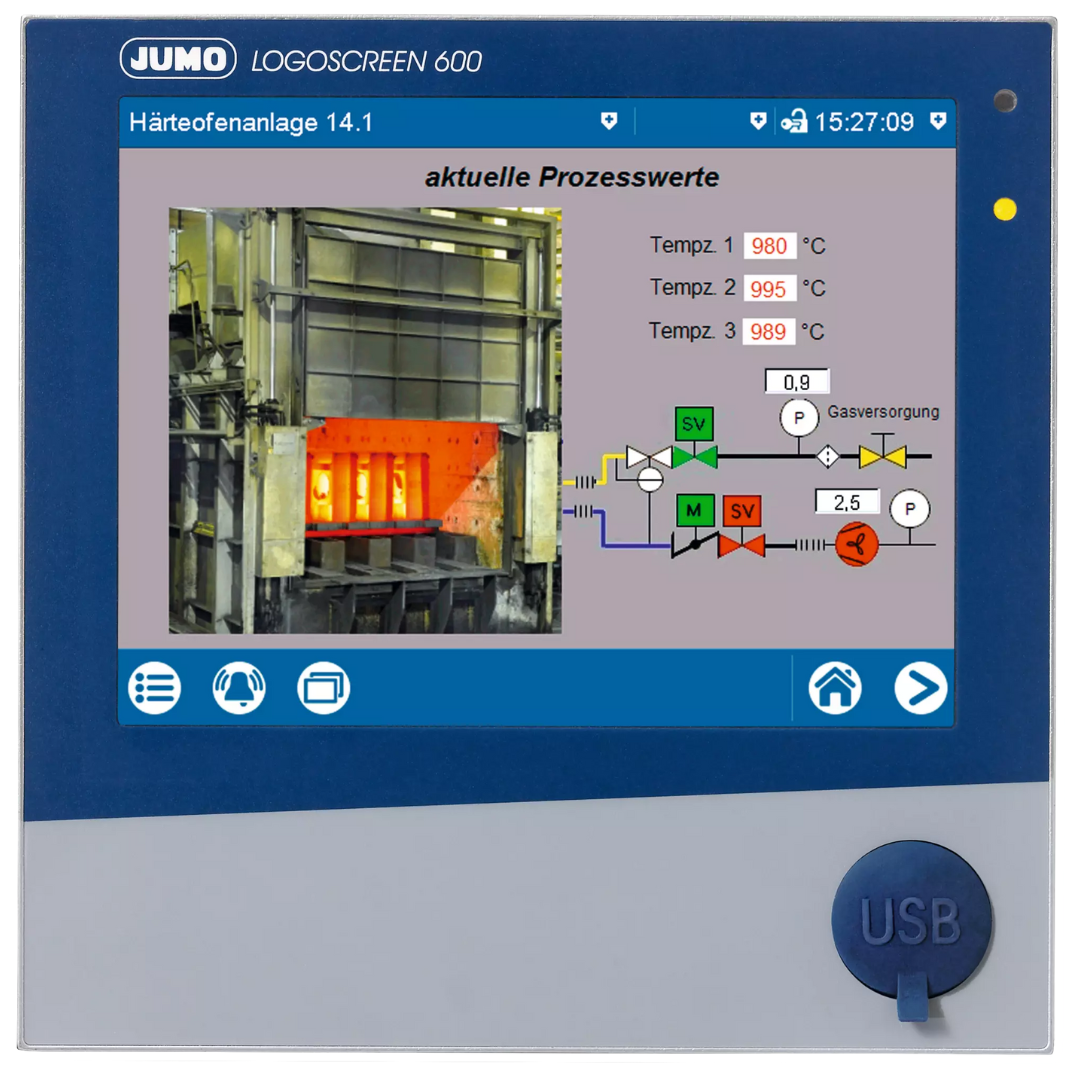

Multiple versions of the JUMO LOGOSCREEN 600 are available for process data acquisition. These range from the device version without measurement input through to a device version with 6 measurement inputs and 12 individually switchable digital inputs/outputs.

Category: Product list A-Z

Technical data
Downloads

Technical data

General technical data
Measurement inputs	0/3/6 user configurable analog inputs for RTD temperature probes, thermocouples, current 0(4) to 20 mA, voltage -10 to +10 V, support of up to 24 external channels respectively (analog and digital)
Digital inputs (solid)	0/3/6 digital inputs (8 Hz)
Digital inputs/outputs (switchable)	12 digital inputs/outputs (optional), including 1 counter input (12.5 kHz)
Analog outputs	0/1/2 analog outputs, voltage 0 to 10 V or current 0(4) to 20 mA
Interfaces	RS232/485 for barcode reader, Ethernet, USB (host/device), Modbus master/slave (RS485/TCP)
Relay (changeover contact)	1 (standard)
Display	5.7 inch TFT color screen
Operation	Touchscreen
Internal memory	1 GB
External storage media	USB flash drive
Memory cycle	125 ms to 32000 s
Front panel	Zinc die-cast with decor foil (144 × 144 mm format)
Approvals	cULus, FDA compliant according to 21 CFR Part 11 (available with extra code 888 as an optional extra)
Special features	Lifecycle data management, web server function with visualization as on the device, integrator/counter, math/logic functions (optional), SNTP time synchronization, 1 batch report, up to 6 customer-specific editable process screens, intuitive icon-based operation and visualization concept, mounting depth < 119 mm, up to 5/50 users, display of the process values on smartphones and tablets via app, manipulation detection with digital certificate (extra code 887)
Protection type on the front	IP65
Voltage supply	AC 110 to 240 V +10/-15 %, 48 to 63 Hz or AC/DC 20 to 30 V, 48 to 63 Hz

General technical data

Measurement inputs

0/3/6 user configurable analog inputs for RTD temperature probes, thermocouples, current 0(4) to 20 mA, voltage -10 to +10 V, support of up to 24 external channels respectively (analog and digital)

Digital inputs (solid)

0/3/6 digital inputs (8 Hz)

Digital inputs/outputs (switchable)

12 digital inputs/outputs (optional), including 1 counter input (12.5 kHz)

Analog outputs

0/1/2 analog outputs, voltage 0 to 10 V or current 0(4) to 20 mA

Interfaces

RS232/485 for barcode reader, Ethernet, USB (host/device), Modbus master/slave (RS485/TCP)

Relay (changeover contact)

1 (standard)

Display

5.7 inch TFT color screen

Operation

Touchscreen

Internal memory

1 GB

External storage media

USB flash drive

Memory cycle

125 ms to 32000 s

Front panel

Zinc die-cast with decor foil (144 × 144 mm format)

Approvals

cULus, FDA compliant according to 21 CFR Part 11 (available with extra code 888 as an optional extra)

Special features

Lifecycle data management, web server function with visualization as on the device, integrator/counter, math/logic functions (optional), SNTP time synchronization, 1 batch report, up to 6 customer-specific editable process screens, intuitive icon-based operation and visualization concept, mounting depth < 119 mm, up to 5/50 users, display of the process values on smartphones and tablets via app, manipulation detection with digital certificate (extra code 887)

Protection type on the front

IP65

Voltage supply

AC 110 to 240 V +10/-15 %, 48 to 63 Hz or AC/DC 20 to 30 V, 48 to 63 Hz
