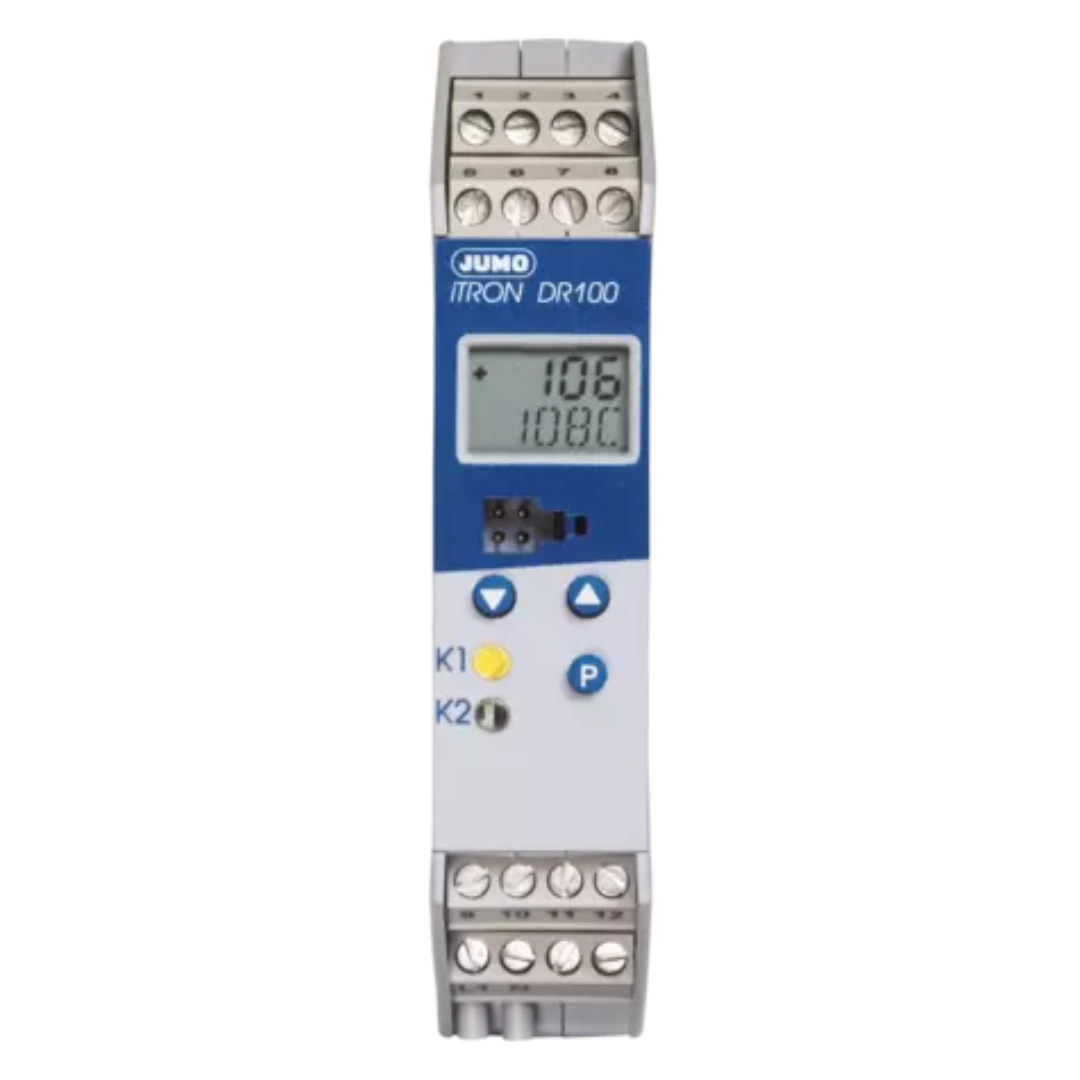

JUMO iTRON DR 100
The JUMO iTRON DR 100 is a universal, user programmable microprocessor controller suitable for a large number of technical control applications. As an option, the controller is available with 1 relay (changeover contact) or 2 relays (normally open contacts).
Technical data
| general technical data | |
|---|---|
| Inputs | 1 universal measurement input for Pt100 or Pt1000 in two-wire or three-wire circuit/thermocouples, 1 binary input |
| Outputs | 1 binary output, 1-2 relay outputs: 1 changeover contact or 2 normally open contacts |
| Operation | 3 keys and two-line alphanumerical display (LCD) |
| Functions | Limit value monitoring function, ramp function, timer function, autotuning, setup program for configuring and archiving via PC |
| Sampling rate | 210 ms |
| Housing | Mounting on DIN rail, 35 mm × 7.5 mm |
| Approvals | UL, metrological certificate |
| Design width | 22.5 mm |
| Controller | Two-state/three-state controller |
| Applications | Control of temperatures, pressures, and other process variables |
Downloads
Data Sheet
Operating Manual
Software Demo Version
Certificate
Declaration of Conformity / White Paper
Order details
