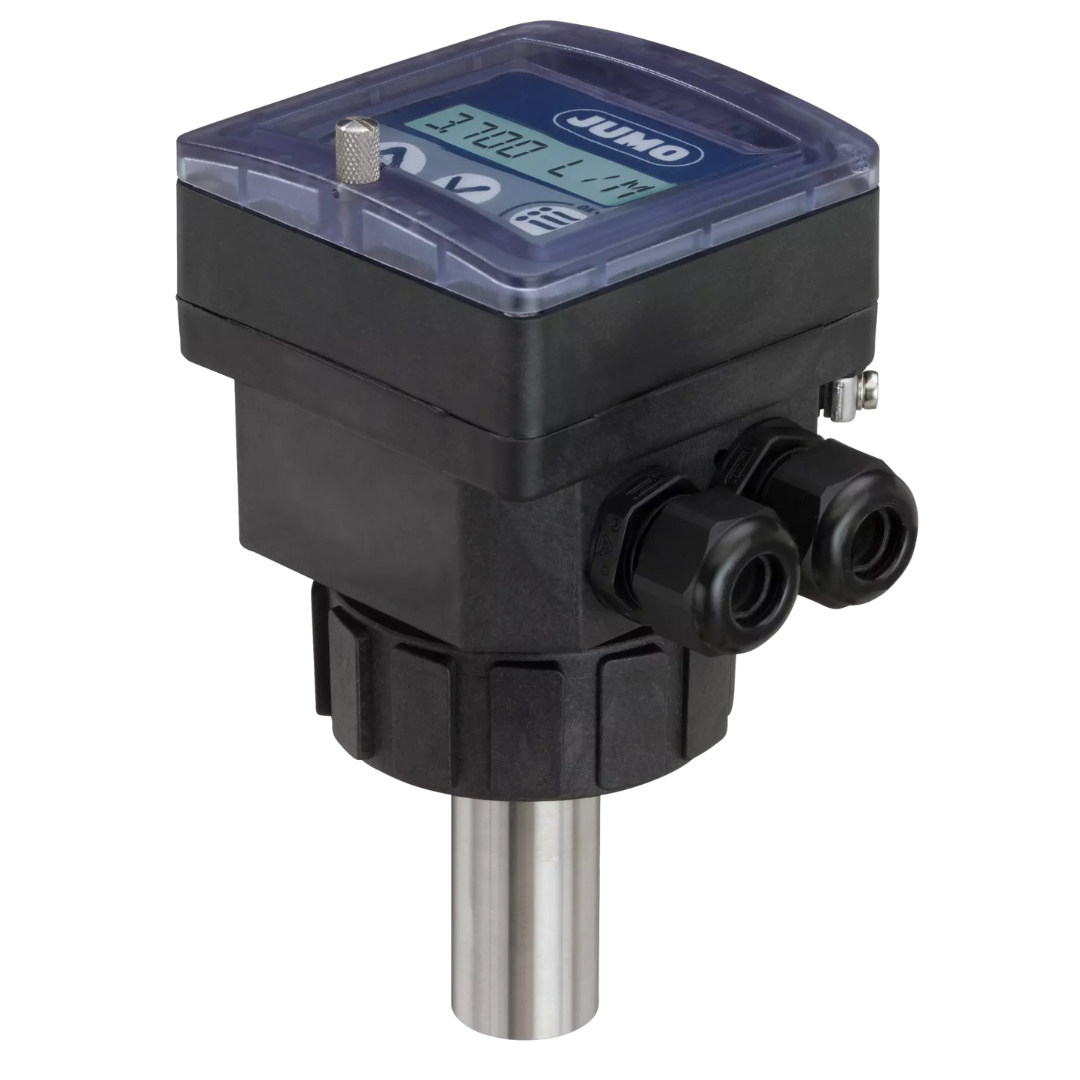

JUMO flowTRANS MAG I02
The transmitter can be used in liquids with a conductivity as of 20 μS/cm. Standardized fittings ensure simple insertion of the transmitter into pipes from DN 15 to DN 400. The output signal is 4 to 20 mA and the pulse frequency signal is 0 to 240 Hz.
Technical data
| General technical data | |
|---|---|
| Measuring range | 0.2 to 10 m/s |
| Nominal pressure | PN 16 |
| Medium temperature | Max. 110 °C |
| Nominal pipe width | DN 15 to DN 400 |
| Inputs and outputs | 4 to 20 mA; pulse frequency; 2 x switching output (relay); digital input |
| Measuring accuracy | ≤ ± 3.5 % of the measured value (standard calibration factor); ≤ ± 0.5 % of the measured value (Teach-In) |
| Parts in contact with medium | Stainless steel 316L (1.4404); FKM or EPDM; PEEK |
| Protection type | IP65 |
| Medium | Conductive liquids as of 20 μS/cm |
| Voltage supply | DC 18 to 36 V |
| Special features | With display |
| Accessories | T-fittings made of PVC or stainless steel; PE or stainless steel welded socket; PP connection clamps (type 406090) |
