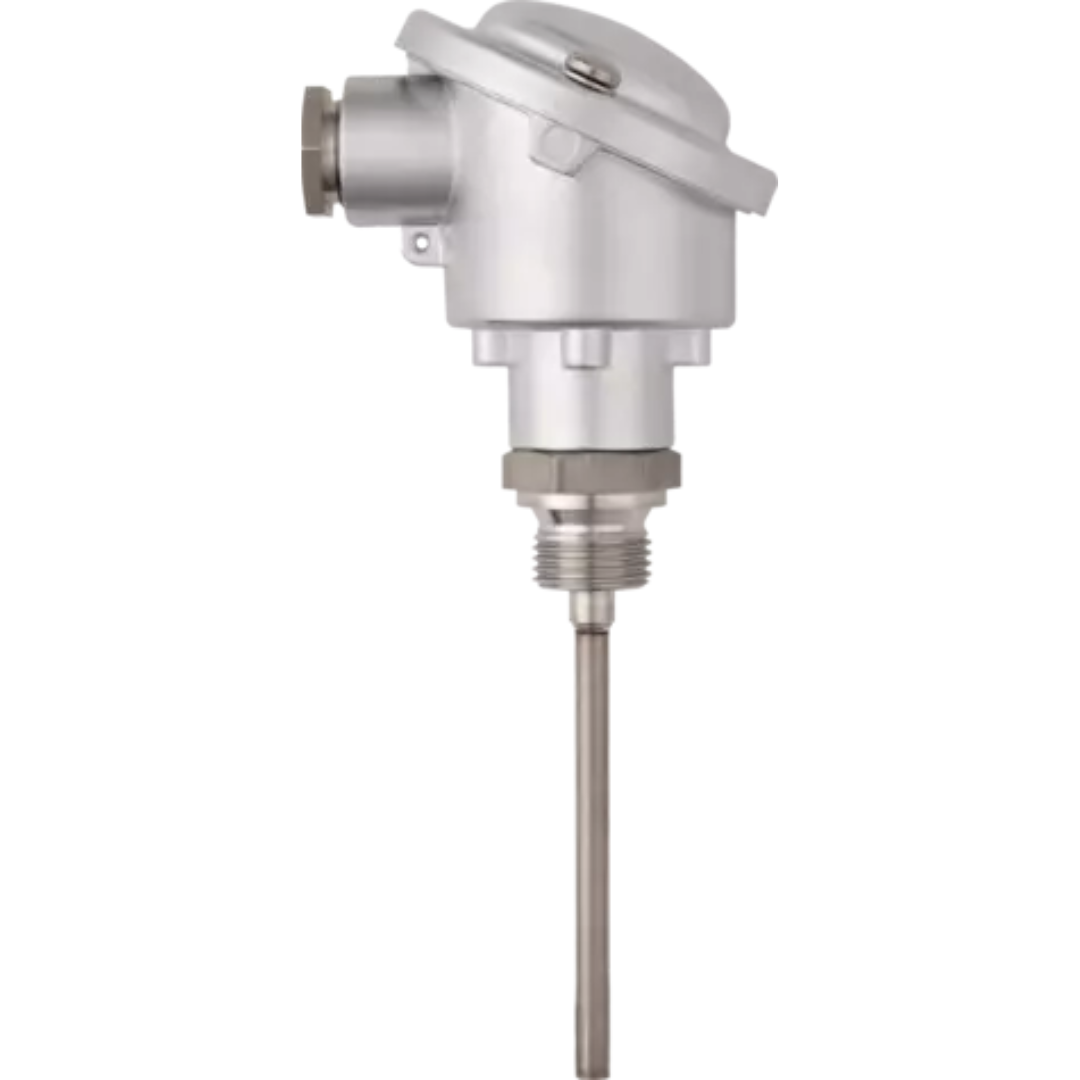

JUMO Etemp B
Screw-in RTD temperature probes for standard applications are predominantly used for temperature measurement in liquids and gases. The application areas are, among others, in air-conditioning and refrigeration technology, as well as heating construction and apparatus engineering.
Technical data
| general technical data | |
|---|---|
| Option | Head transmitter, Pt500 or Pt1000 |
| Special features | Fast measurements in air |
| Process connection | Screw connection G 3/8, G 1/2, M 18 × 1.5, M 20 × 1.5, 1/2-14 NPT |
| Protection type | IP66 |
| Operating temperature | -50 to +400 °C |
| Measuring circuits | 1/2 |
| Terminal head | B, BUZ |
| Areas of application | Mechanical engineering, candy industry, industrial boiler plants, boiler construction, transformer engineering, textile machines |
| Protection fitting | Stainless steel 1.4571 |
| Sensor | Pt100 |
