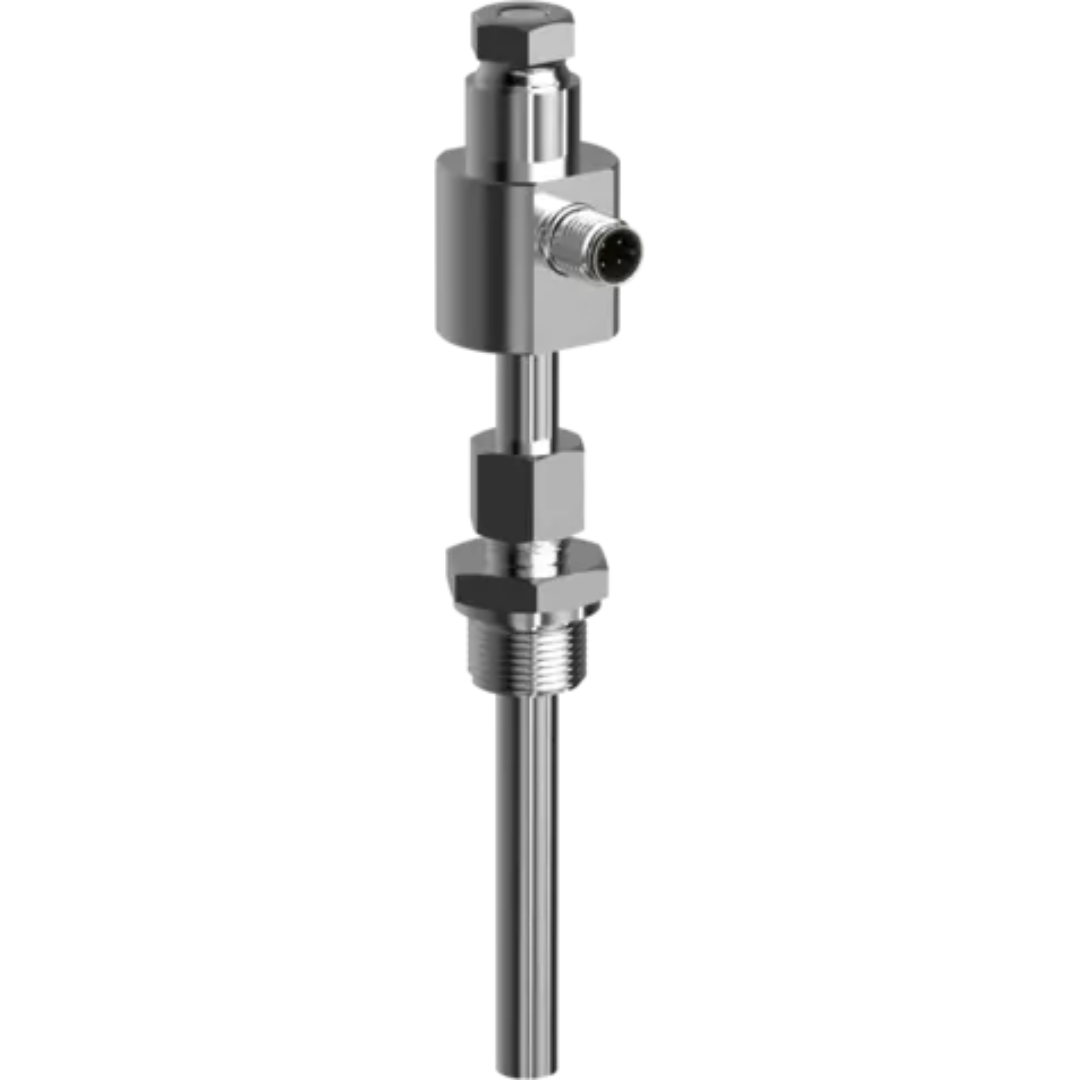

JUMO dicoTEMP 100
JUMO dicoTEMP 100 combines the strengths of various measurement methods. Measuring devices (thermostats and dial thermometers) that are already integrated into the process can continue to be used at the same measuring point. They can be expanded functionally with electrical temperature measurement and therefore with diverse temperature measurement.
Technical data
| general technical data | |
|---|---|
| Temperature | -40 to +260 °C |
| Process connection | Thread G1/2, G1 |
| Sensor | Pt100 or Pt1000 in four-wire circuit |
| Connection | M12 |
| Protection type | IP66, IP67, IP69 |
| Material | Stainless steel |
| Probe diameter | 6, 8, or 10 mm |
| Insertion length | 65 to 300 mm |
| Ambient temperatures | -40 to +85 °C |
| Transmitter | 4 to 20 mA or IO-Link (optional cable transmitter) |
| Special features | Easy startup, diverse temperature measurement based on 2 different measuring principles, only 1 measuring point required for diverse temperature measurement thanks to smart tube, compact system, various output signals – resistance signal, analog signal, and digital signal, Plug and Play functionality |
| Application areas | Transformer and compressor construction, service area (retrofit), hydraulic units, general mechanical and plant engineering, particularly water treatment plants |
